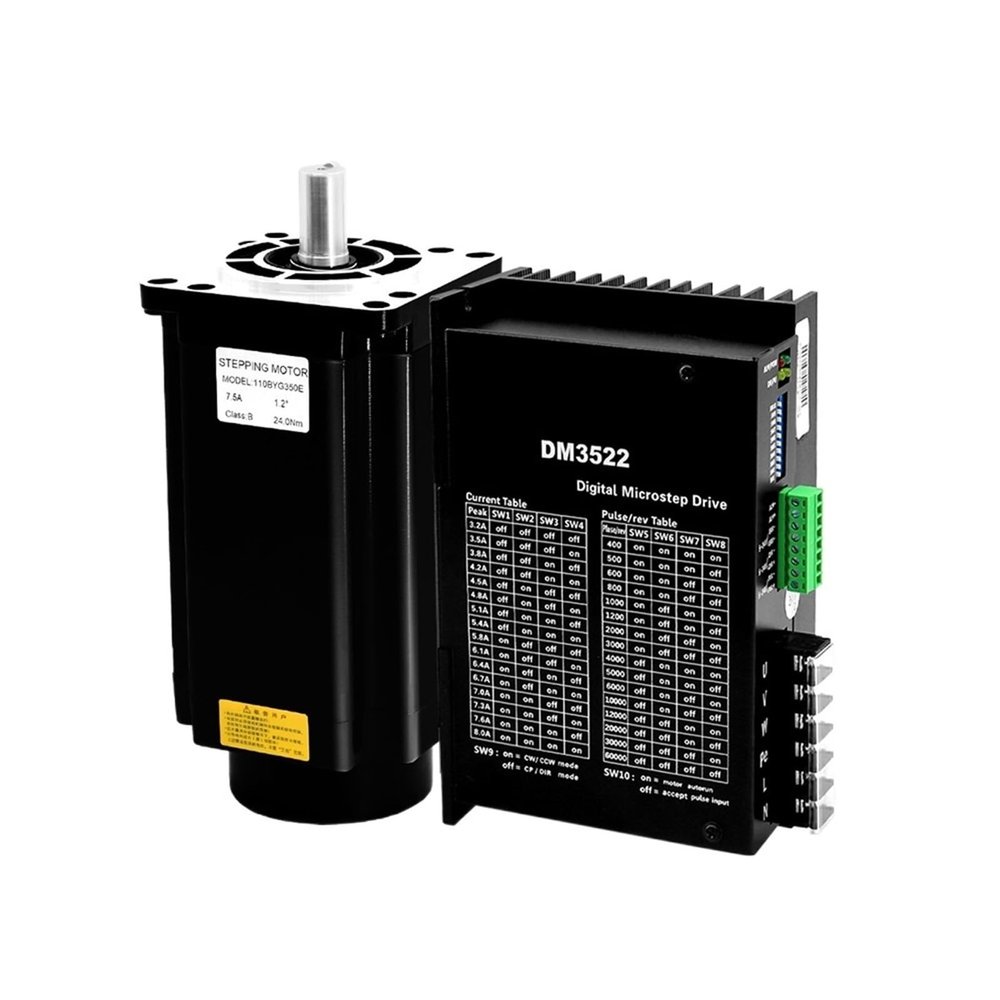

110BYG350B Nema42 12Nm 6A Three Phase Stepper Motor With 19mm Shaft Optional Brake + DM3522 AC110v 220V Input Driver Kit For (Size : Without brake)

Description

• Motor Drives
• 110BYG350B Nema42 12Nm 6A Three Phase Stepper Motor With 19mm Shaft Optional Brake + DM3522 AC110v 220V Input Driver Kit For

Motor Drives
H E N G L I Z I D O N G H U A
Packing Content
1PCS 110BYG350B 12Nm Three Phase Stepper Motor
(With or Without Brake)
1PCS DM3522 Driver
H E N G L I Z I D O N G H U A
110 three-phase
stepper motor set
H E N G L I Z I D O N G H U A
Drive DM3522 Size Display
(Unit of measurement: MM)
Product Parameter
Comprehensive Understanding, Buy More At Ease
Control method:Pulse/direction Operating temperature:0~+50
<;80%RH Weight:0.8534KG
Input power:85-265VAV Response frequency:200KHZ
H E N G L I Z I D O N G H U A
Three-phase 86
motor size display
Product Parameter
Comprehensive Understanding, Buy More At Ease
Model
Step angle
()
Holding
(N.m)
Working voltage
(V)
Rated current
(A)
Phase inductance
(mH)
Phase resistance
()
Rotor inertia
(Kg.cm)
Weight
(Kg)
Motor length
(mm)
110BYGH350A
1.2
8 220
4.3
11.9
1.0
8.6
5.5
135
110BYGH350B
1.2
12
220
6 11.5
0.76
11.9
7.1
161
110BYGH350C
1.2
16
220
6.5
19
1.28
14.8
8.8
185
110BYGH350D
1.2
20
220
7 22
1.24
19.8
11
220
110BYGH350E
1.2
24
220
7.5
20
1.22
20.8
11
220
H E N G L I Z I D O N G H U A
Products Show
