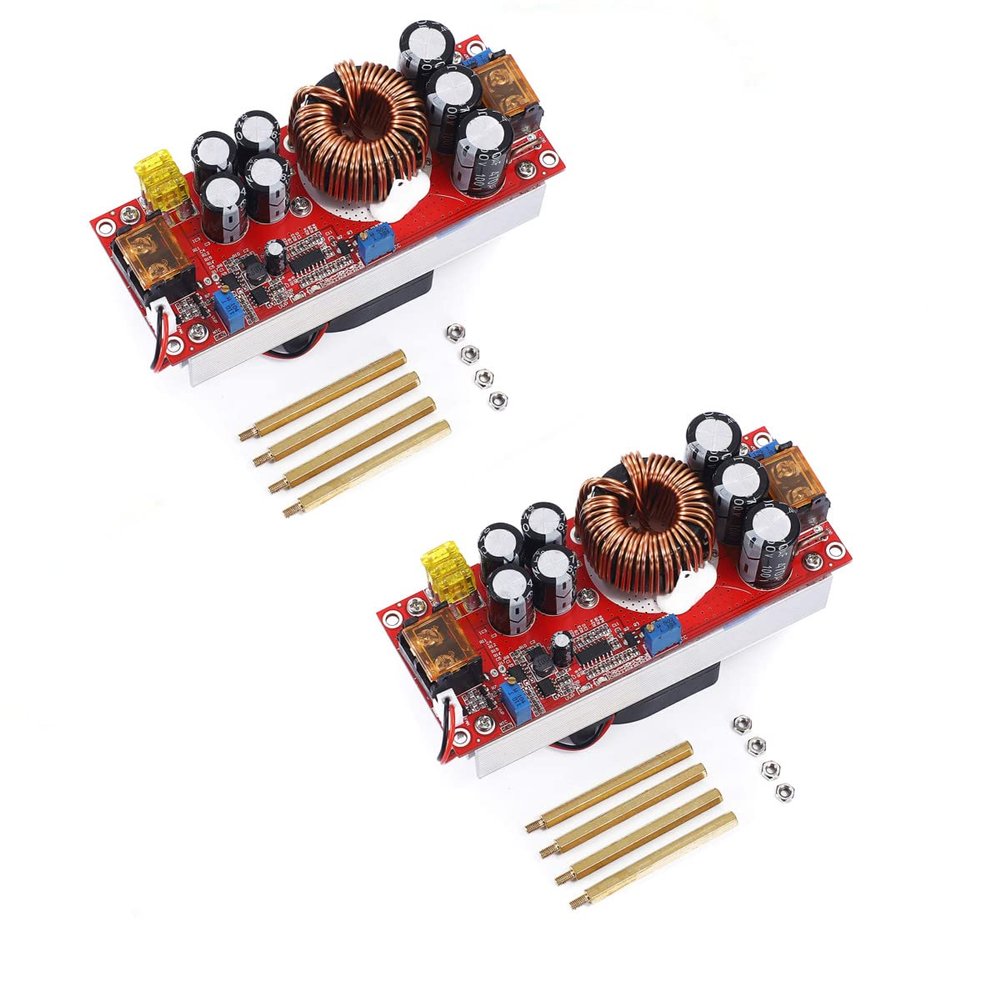

1500W 30A DC-DC Boost Converter DIY Step-up Boost Constant Stream Power Supply Module Board in 10-60V Out 12-90V Electric Unit Module (2X)

Description

• Boost Module - DC-DC 10-60V to 12-97V 1500W 30A Voltage Step Up Converter Boost CC CV Power Supply Module
• When using battery power, if the battery loses power, it will not damage the power module and battery.
• Widely Application:DIY a regulated power supply, input 12V, the output can be adjusted 12-80V;DIY a high-power notebook mobile power;As a car power supply, power your laptop, PDA or a variety of digital products;
• Solar panel voltage regulator;Charge the battery, lithium battery, etc.;Drive high-power LED lights
• Note:Never use a short-circuit output to adjust the current. The circuit structure of the boost module cannot be adjusted by short circuit.

Product Specification:
Input Voltage: DC10V to 60V
Max. Input Current: 30A(input voltage 10V to 30V) or 25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V) Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input Protection: Yes (150A MOS)
Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97%
Input Over-current Protection: Yes (automatically protect when input is more than 35A, and power supply voltage will not increase)
Short Circuit Protection: Yes(input 30A fuse)
Wiring Method: Terminals(please use large current copper wire)
Max. Output Power = Input Voltage*Max Current (If input 12V, the max output power=12V*30A = 360W)
Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"
