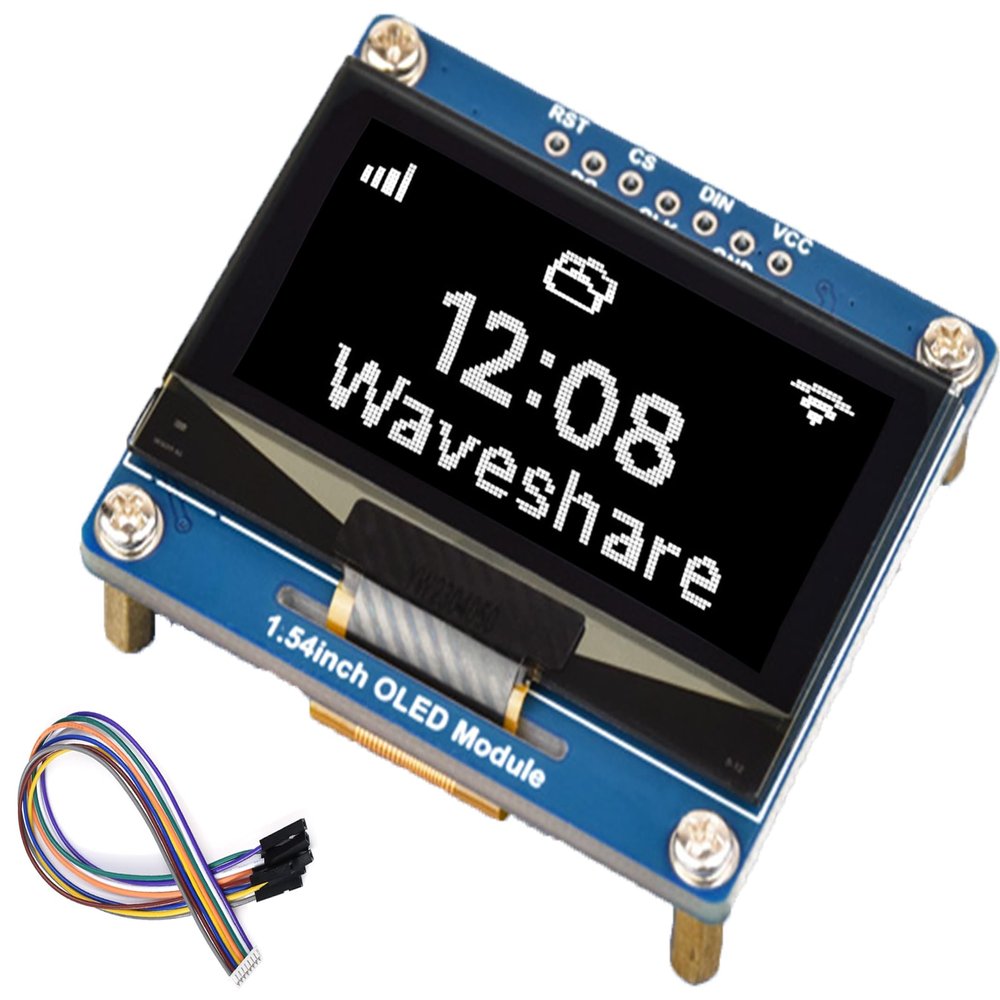

waveshare 1.54inch OLED Display Module 12864 Resolution Compatible with Raspberry Pi/forArduino/ STM32/ ESP32/ Jetson Nano, etc. SSD1309 Driver Chip, SPI / I2C Communication, White Display Color

Description

• 1.54inch OLED Display Module, 12864 Resolution, SPI / I2C Communication, White Display Color
• Onboard voltage translator, compatible with 3.3V / 5V MCUs
• Embedded SSD1309 driver chip, SPI / I2C Communication
• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• Compatible with Raspberry Pi/ forArduino/ STM32/ ESP32/ Jetson Nano, etc. Comes with online development resources

This is a 1.54inch OLED Display Module, 128x64 Resolution, embedded SSD1309 driver chip, using the SPI/I2C interface communication, Compatible with Raspberry Pi/ forArduino/ STM32/ ESP32/ Jetson Nano, etc.

Features
Onboard voltage translator, compatible with 3.3V / 5V MCUs
Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)

Specifications
OPERATING VOLTAGE: 3.3V / 5V
COMMUNICATION INTERFACE: SPI / I2C
DRIVER: SSD1309
DISPLAY COLOR: WHITE
RESOLUTION: 128 x 64 pixels
PIXEL SIZE: 0.254 x 0.254(mm)
DISPLAY SIZE: 35.05 x 17.52mm
MODULE SIZE: 43 x 37.5(mm)

Hardware Configuration
OLED module provides two kinds of driver interfaces: 4-wire SPI and I2C interfaces respectively. There are two optional soldering resistors on the back of the module at the lower left corner, through the choice of resistors to select the corresponding communication mode
The module adopts a 4-wire SPI communication mode by default, that is, the resistor is connected to the SPI by default. The specific hardware configuration is as follows:

4-wire SPI:
That is the factory demo setting: two 0R resistors are connected to the SPI position;

I2C:

Two 0R resistors are connected to the I2C position;
The DC pin can be used to change the I2C Address:Set Low, the I2C Address is :0x3C; Set High, the I2C Address is 0x3D. PS: The demo is set as SPI mode by default, if you need to switch the mode, please modify the DEV_Config.h. See demo description - underlying hardware interface - interface selection for more details.

Online Development Resources /User Manual ://bit.ly/47aRX9z

Package Content
1.54inch OLED Module white display colorx1
GH1.25 7PIN cable x1
