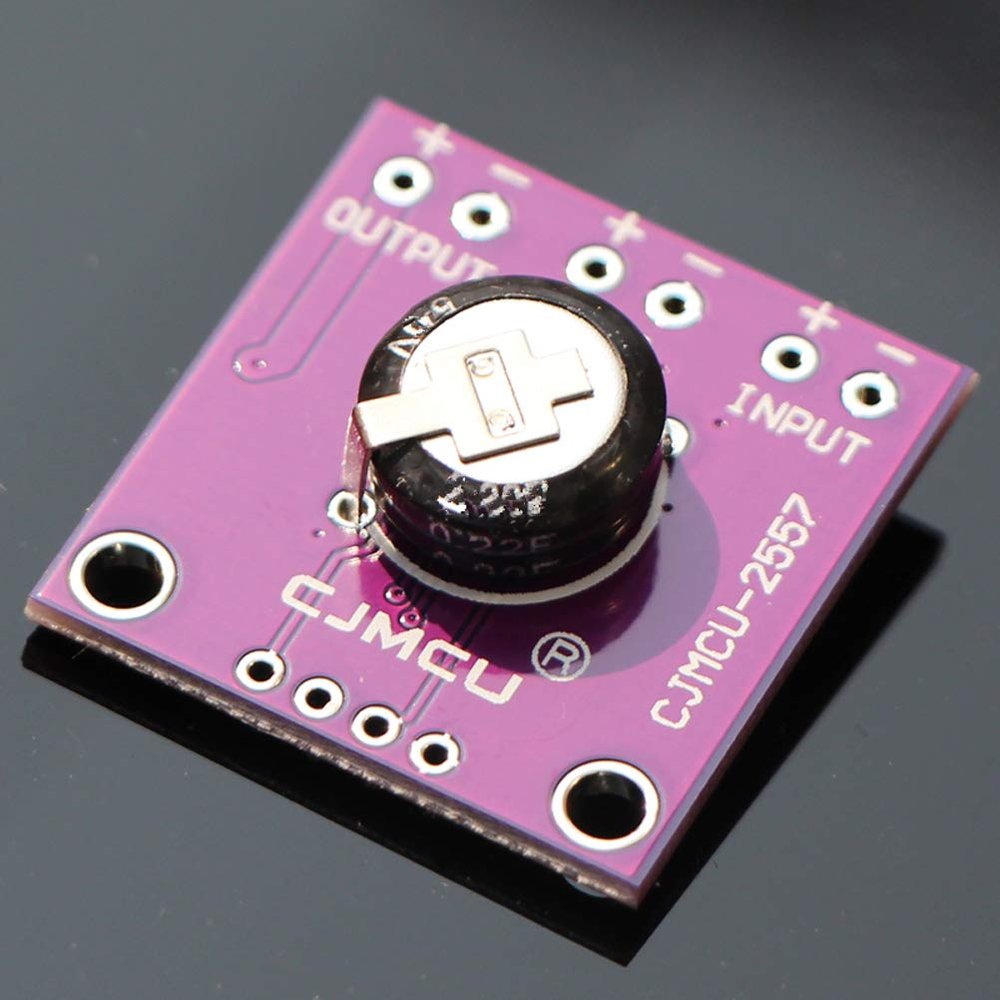

1pack CJMCU-2557 BQ25570 Nano Power Boost Charger and Buck Converter for Energy Harvester Powered Applications for Arduino Compatible with SCM & DIY Kits

Description

• Package Includes: 1 x CJMCU-2557 BQ25570 Nano Power Boost Charger
• Cold-start Voltage: VIN 330 mV

Features:
1. Ultra Low Power DC-DC Boost Charger
Cold-start Voltage: VIN 330 mV
Continuous Energy Harvesting From VIN as low as 100 mV

Input Voltage Regulation Prevents Collapsing High Impedance Input Sources Full Operating Quiescent Current of 488 nA (typical) Ship Mode with <5 nA From Battery 2. Energy Storage Energy can be Stored to Re-chargeable Li-ion Batteries, Thin-film Batteries, Super- capacitors, or Conventional Capacitors 3. Battery Charging and Protection Internally Set Undervoltage Level User Programmable Overvoltage Levels 4. Battery Good Output Flag Programmable Threshold and Hysteresis Warn Attached Microcontrollers of Pending Loss of Power Can be Used to Enable or Disable System Loads
5. Programmable Step Down Regulated Output (Buck) High Efficiency up to 93%
Supports Peak Output Current up to 110 mA (typical) 6. Programmable Maximum Power Point Tracking (MPPT) Provides Optimal Energy Extraction From a Variety of Energy Harvesters including Solar Panels, Thermal and Piezo Electric Generators Descriptions: The bq25570 device is specifically designed to efficiently extract microwatts (W) to milliwatts (mW) of power generated from a variety of high output impedance DC sources like photovoltaic (solar) or thermal electric generators (TEG) without collapsing those sources. The battery management features ensure that a rechargeable battery is not overcharged by this extracted power, with voltage boosted, or depleted beyond safe limits by a system load. In addition to the highly efficient boosting charger, the bq25570 integrates a highly efficient, nano- power Loads buck converter for providing a second power rail to systems such as wireless sensor networks (WSN) which have stringent power and operational demands
