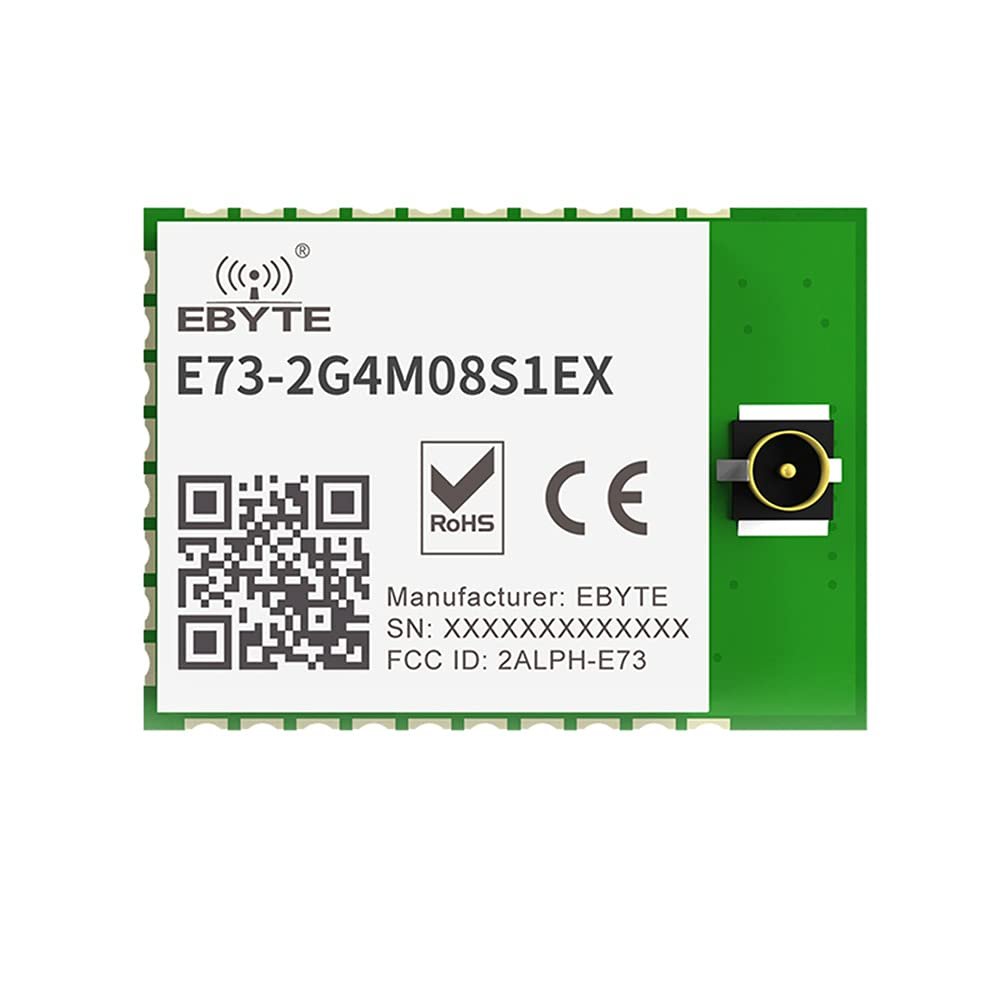

2.4GHz nRF52833 BLE5.1 RF Module Mesh Thread ZigBee 8dBm CDSENET E73-2G4M08S1EX for UAV Smart Home Wireless Transceiver Receiver

Description

• E73-2G4M08S1EX are wireless Bluetooth modules designed by Chengdu Ebyte which feature small size, low power consumption. It adopt the originally imported RFIC nRF52833 of NORDIC, supporting Bluetooth 5.1, Bluetooth mesh, 802.15.4, Thread, Zigbee and proprietary 2.4 GHz protocols.
• The chip comes with a high-performance ARM CORTEX-M4 core, taking use of a 32M industrial-grade crystal oscillator, and has abundant peripheral resources such as UART, I2C, SPI, ADC, DMA, and PWM. The module led out most IO Port of nRF52833 for multilateral development. Please see the pin definition for details.
• E73-2G4M08S1EX is hardware platform without firmware, so users need to conduct a secondary development.The characteristics of the nRF52833 chip can be found in the official Datasheet. The module has maximized the RF characteristics of the chip.
• Application - Smart homes and industrial sensors; Security system, positioning system;Wireless remote control, drone;Wireless game remote control; Health care products; Wireless voice, wireless headset; Automotive industry applications.

Features
13 x 18mm, small size;
Support Bluetooth 5.1, Bluetooth mesh, 802.15.4, Thread, Zigbee and proprietary 2.4 GHz protocols;
Maximum transmission power of 6mW, software multi-level adjustable;
Support the global license- free ISM 2.4GHz band;
Built-in high performance low power ARM?and Cortex?-M4 dual core processor;
Rich resources,512KB FLASH, 128KB RAM;
Support 1.7V~5.5V power supply, power supply over 3. 3Vcan guarantee the best performance;
Industrial grade standard design, support -40 ~ 85 C for working over a long time;
With IPEX antenna interface, an external antenna is required;
Under ideal conditions, the communication distance can reach 120m.
