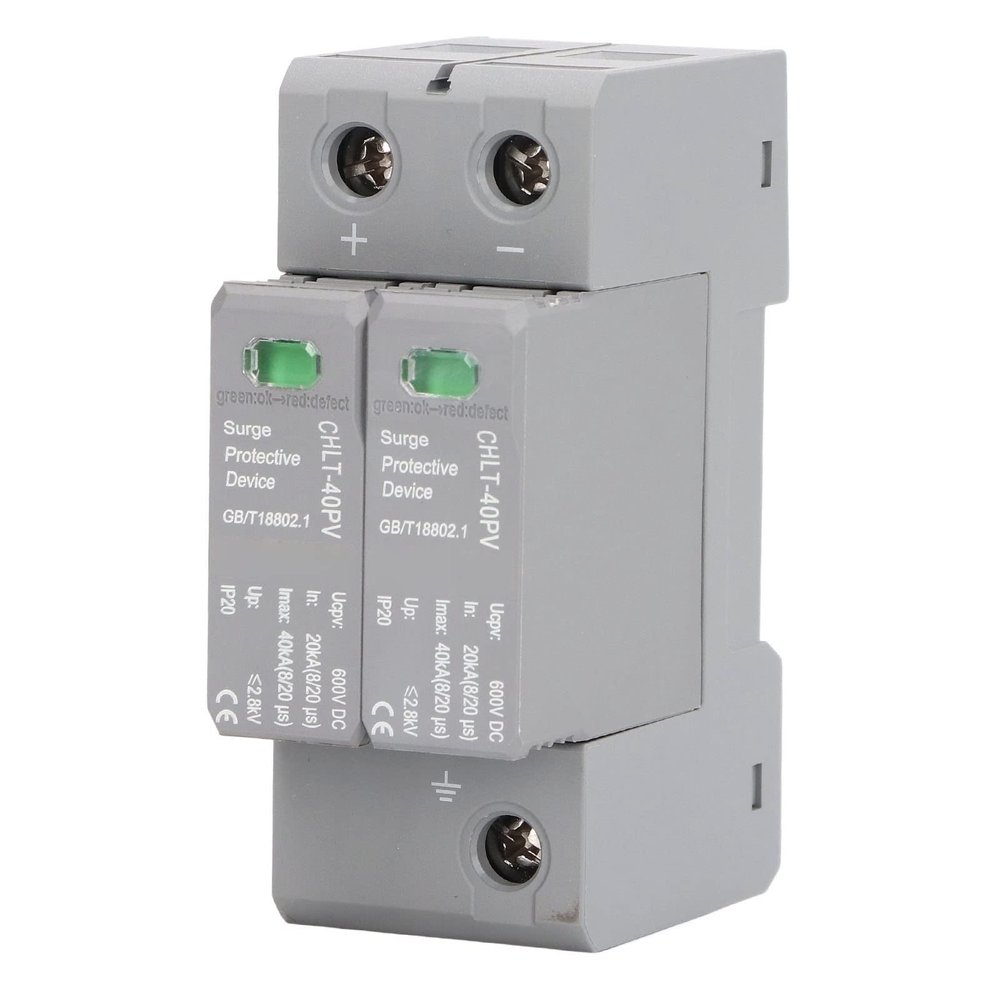

2P PV Protector DC 600V Photovoltaic Arrestor Overvoltage 20KA to 40KA

Description

• Specification: Maximum Continuous Operating Voltage: DC600V; Nominal Discharge Current: 20kA (8/20s); Maximum Discharge Current: 40kA (8/20s); Voltage Level Up: 2.8kV.
• Function: This device can defend the alternating current power system from thunder or overvoltage.
• Overvoltage : When the system has a overvoltage due to strike of thunder or other reasons, the protector immediately opens quickly within nanoseconds and introduces the overvoltage to the earth protecting the power using devices.
• Installation: Standard 2P 36MM rail mounting, and distribution box circuit breaker with the use of.
• After Sales Service: If there is any questions of your orders, please feel to us through email, we will write back as soon as possible!

Feature:
1. Flame Retardant: Enhances security in usage, flame retardant, and it can withstand greater work strength, improves performance, allows for an enhanced experience in usage.
2. Great Electrical Conductivity: device as an internal component, accurate chip, accuracy and strong conductivity is also a nice guarantee.

Specification:
Item Type: Device
Model: CHLT 40PV
Material: PC(Flame retardant)
Maximum Continuous Operating Voltage: DC600V
Nominal Discharge Current: 20kA (8/20?s)
Maximum Discharge Current: 40kA (8/20?s)
Voltage Level Up: ?2.8kV
Number of Poles: 2P
Level: IP20
Working Temperature: -40? - 80?
Working Humidity: ?90%(at 25? on average)

Package List:
1 x 2P Protective Device
1 x Sliding Sheet

Note:
1. The power supply must be cut off before installation, and with electricity is strictly prohibited.
2. When installation, please connect according to the installation diagram, where + is the positive line, ? is the negative line, do not misconnect, after installation is complete, close the automatic circuit breaker () switch, check whether the working state is normal.
