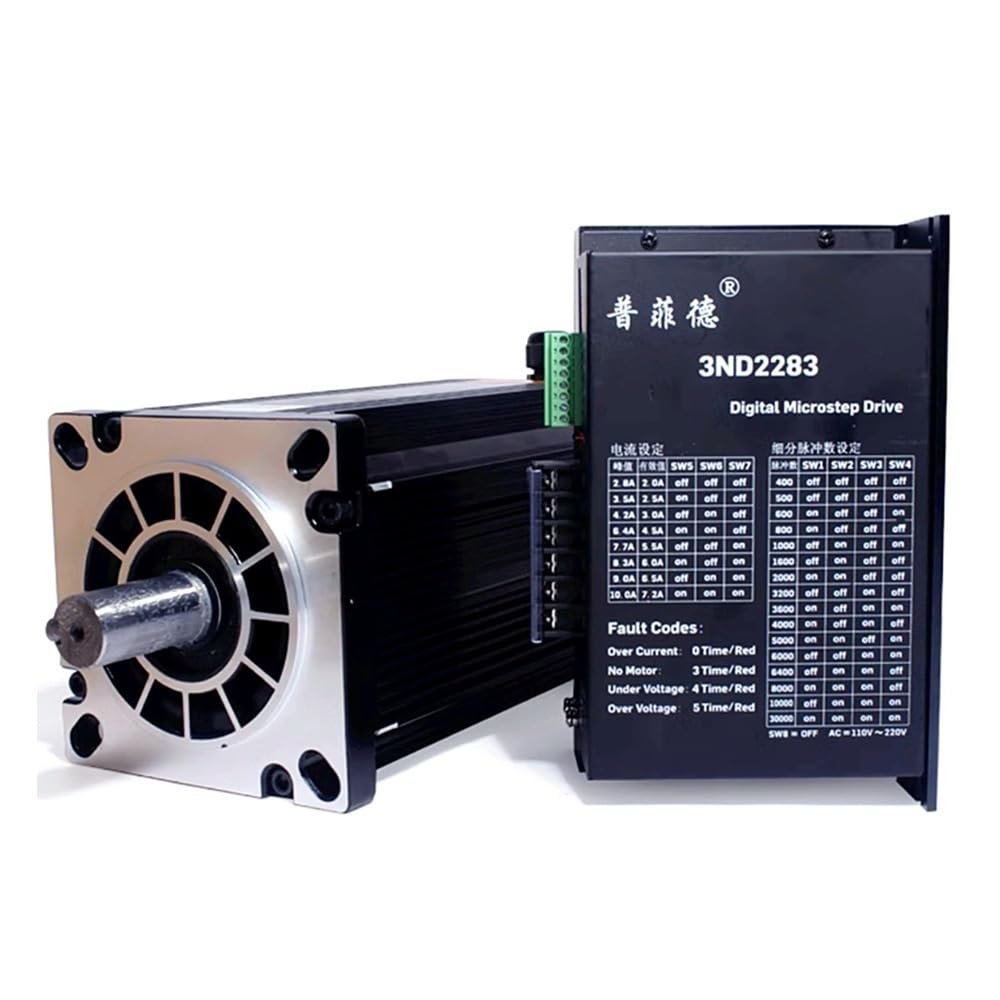

50Nm Nema52 3 Phase 130 Stepper Motor Kit With Driver 3ND2283 10A Large Engine for Milling Lathe Turning Engraver (Size : 24mm)

Description

• Motor Drives
• 50Nm Nema52 3 Phase 130 Stepper Motor Kit With Driver 3ND2283 10A Large Engine for Milling Lathe Turning Engraver

Motor Drives
1 pcs 130BYG350D Motor
1 pcs 3ND2283 Driver
1. Low Noise
2. High Precision
3. Large
130BYG350D THREE PHASE STEPPING MOTOR
Step Angle Accuracy
5%
Temperature Rise
80 Max
Insulation Resistance
100M Min
500VDC
Dielectric Strength
500V AC 1minute
Shaft Radial Play
0.025mm Max
(450g-load)
Shaft Axial Play
0.08Max
(450g-load)
Step Angle
1.2
Holding
50N
(Driver)Operating Voltage
220V
Current
6.8A
Inductance
21mH
Resistance
1.1
Rotor Inertia
50.3Kg.cm
Weight
17.8KG
Motor Length
284
Matched Driver
3ND2283
