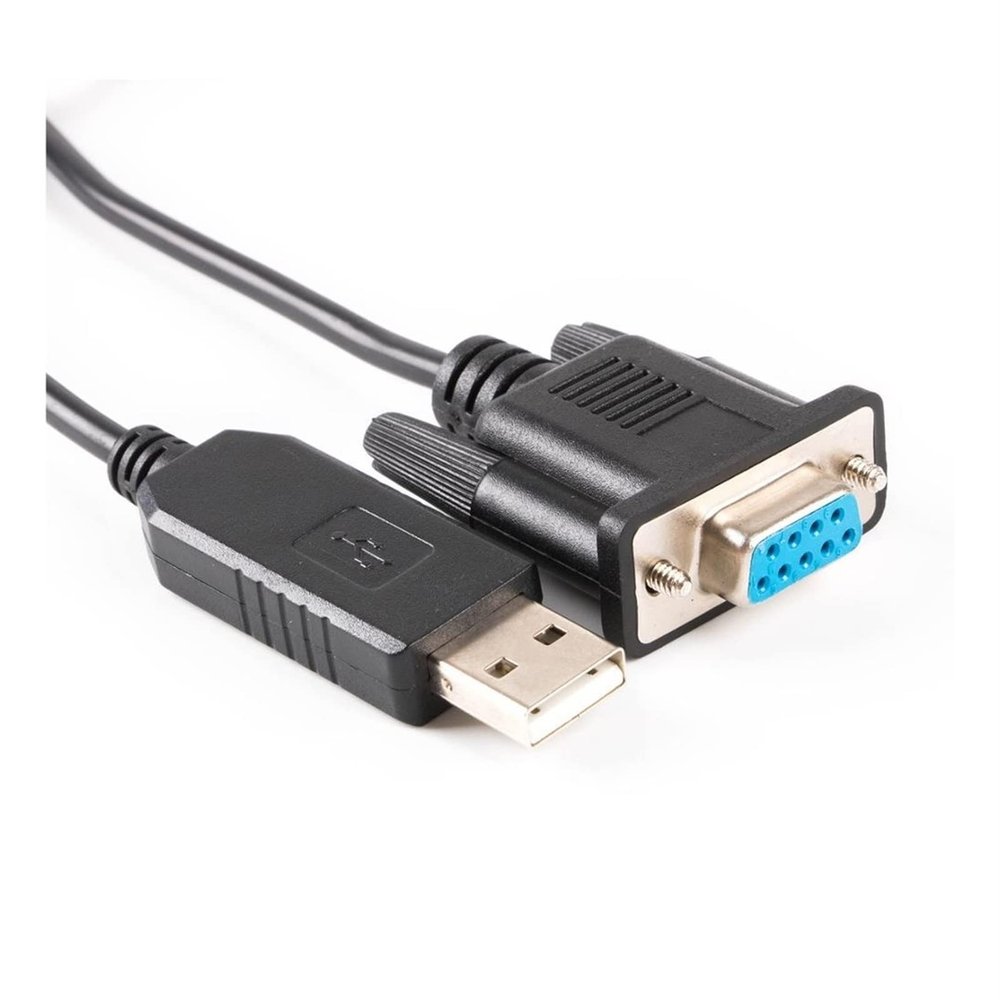

AJOHBM USB to DB9 Female RS232 I-O-I-O-I Port Serial Adapter Converter Cable Support Win7/8/10, 6FT

Description

• Auto transmit buffer control Compatible With RS485 applications.
• Transmit and receive L drive signals.
• Integrated 1024 bit internal EEPROM Compatible With I/O configuration and storing USB VID, PID, serial number and product description strings.
• Support Compatible With bus powered, self powered, and high-power bus powered USB configurations.
• 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow Compatible With high data throughput.

USB to DB9 Female FTDI RS232 IOIOI Port Serial Adapter Cable
USB to DB9 Female RS232 IOIOI Port Serial Adapter Cable
Length:6ft/1.8m
Multiple System Support, Support Win7/8/10/android/M os

Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support Compatible With 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support Compatible With event characters and line break condition.
New configurable CBUS I/O pins.
Auto transmit buffer control Compatible With RS485 applications.
Transmit and receive L drive signals.

FIFO receive and transmit buffers Compatible With high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow Compatible With high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM Compatible With I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support Compatible With USB suspend / resume.
Support Compatible With bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter Compatible With USB I/O .
Integrated level converter on UART and CBUS Compatible With interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator requi
