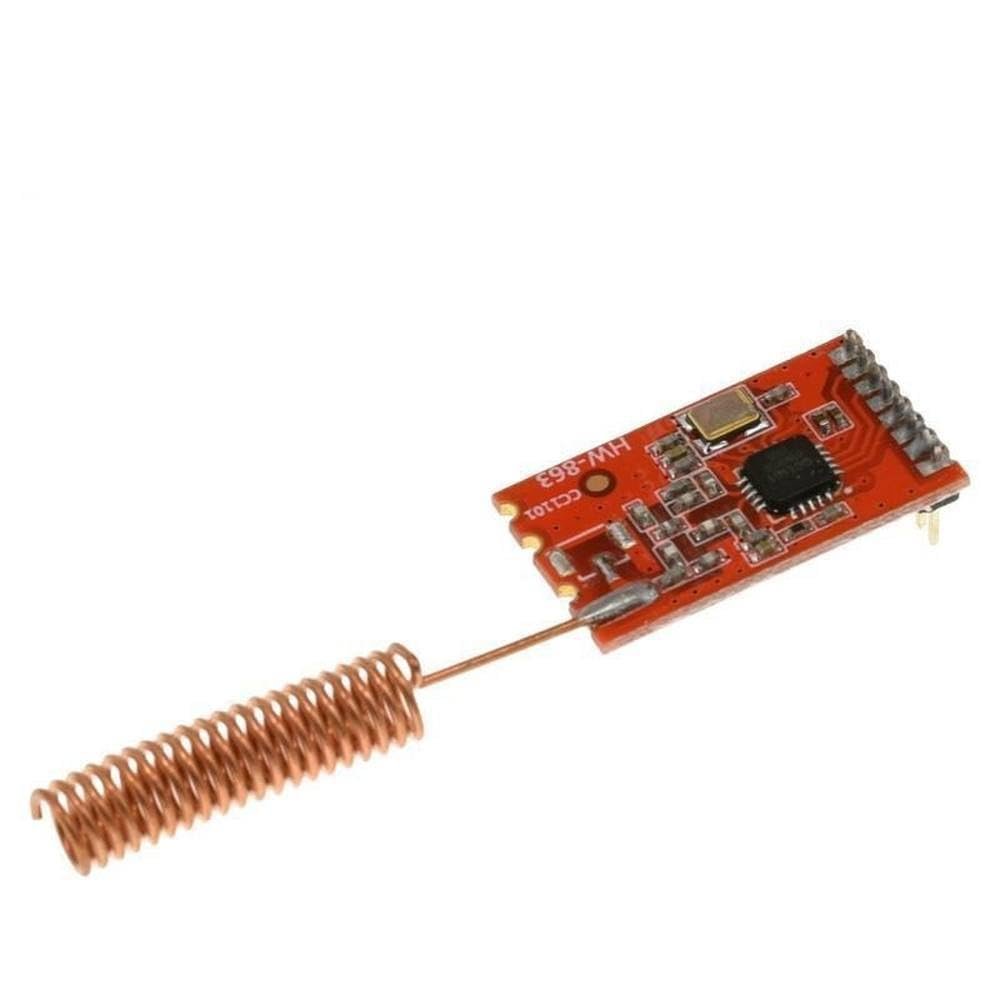

CC1101 433M 10mW Wireless Sender Receiver Module NRF905/SX1212/SI4432

Description

• CC1101 433M 10mW Wireless Sender Receiver Module NRF905/SX1212/SI4432

Product
Descriptions:

Products using the chip CC1101, can be widely used in the Internet of Things, industrial control, medical, security alarm, number

According to collection, smart home, water and electrical meter reading and other oc ns.

Features:
Low power consumption, high sensitivity, simple network structure, small size, with wireless wake up power

Can equal the advantage.

Product specifications:

Color: Red

Chip :CC1101

Center frequency :433MHz

Maximum power :10mW

Transmitting power :10dBm (about 10mW)

Supply voltage :1.8V-3.6VDC

Transmitting current :29.2mA@10ddBm (power supply capacity must be greater than 100mA)

Reception sensitivity :-116dBm/0.6kbps

Remote control distance :1000m (theoretical value)

Total length :46mm (including antenna)

Pin hole spacing :1.27mm

Product performance:

1, open transmission distance of 300 to 500 meters.

2. Support automatic channel clearance before transmission (CCA), namely carrier sense system

3, efficient SPI serial programming interface, available IO port simulation SPI timing, can also be used

SPI interface of MCU.
