DirectNine Basics TOA Electronics MT-S0301 Matching Transformer for High-Impedance Operation; 1kOhms at 10W Impedance; 30W Rated Input Power

Description

• Micro Class D amplifier for use in meeting/board rooms and signage applications.
• UL 2043-rated for plenum installation
• Energy Star certified including Auto Off/Standby
• Small in size (approx. 6" x 6" x 1.75") allows convenient and flexible placement
• L/R Line inputs via: removable Transformer-Balanced Terminal Block, 1/8" TRS mini-jack and RCA connections

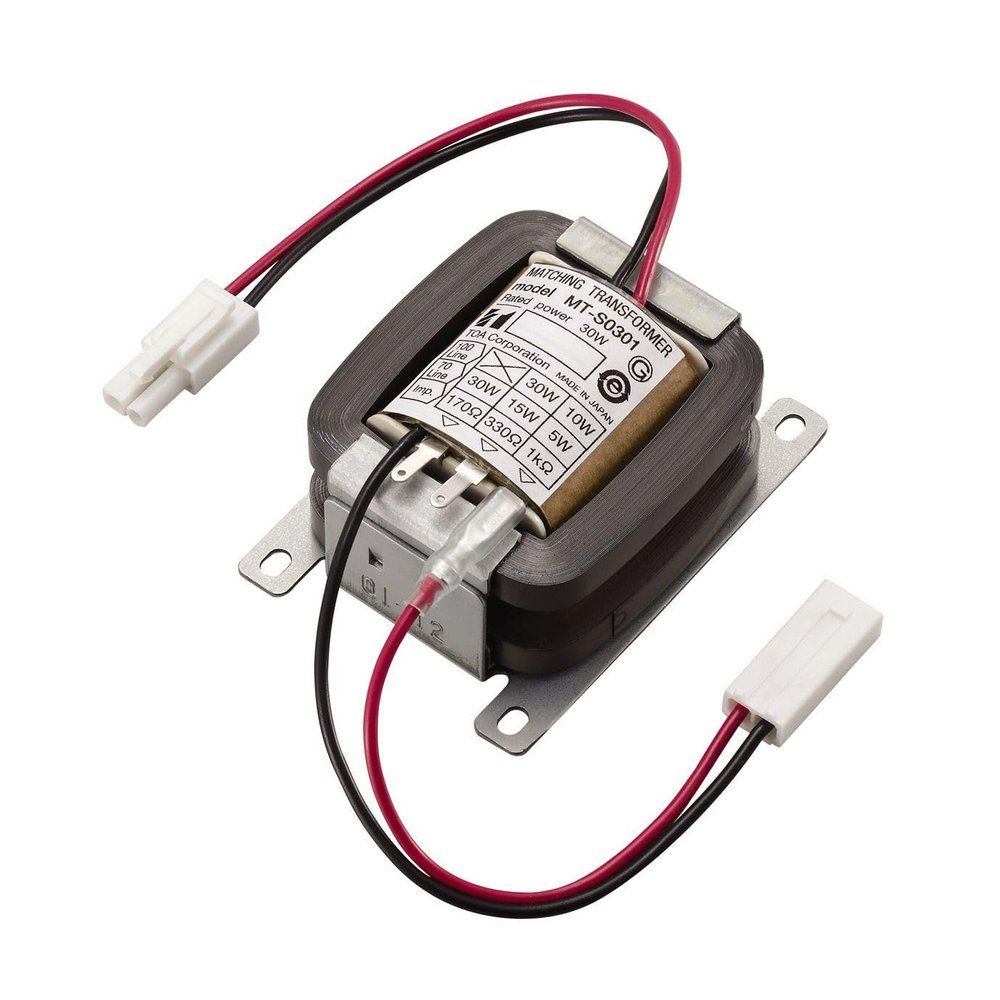

TOA Electronics MT-S0301 Matching Transformer For High-Impedance Operation; 1kOhms at 10W Impedance; 30W Rated Input Power

The MT-S0301 Matching Transformer is designed to be installed in the Line Array Speaker

Key Features

-Micro Class D amplifier for use in meeting/board rooms and signage applications.
-UL 2043-rated for plenum installation
-Energy Star certified including Auto Off/Standby
-Small in size (approx. 6" x 6" x 1.75") allows convenient and flexible placement
-L/R Line inputs via: removable Transformer-Balanced Terminal Block, 1/8" TRS mini-jack and RCA connections

Specifications:
-Rated Input Power: 30 W
-Primary Side 100 V line: 330 ohms (30 W), 1 k ohms (10 W)
-70 V line: 170 ohms (30 W), 330 ohms (15 W), 1 k ohms (5 W)
-Secondary Side 8 ohms
-Applicable Speaker SR-H3S, SR-H3L, SR-H2S, SR-H2L
-Dimensions: 53 x 75 x 36 mm (W x H x D)
-Weight: 370 g (0.82 lb)
