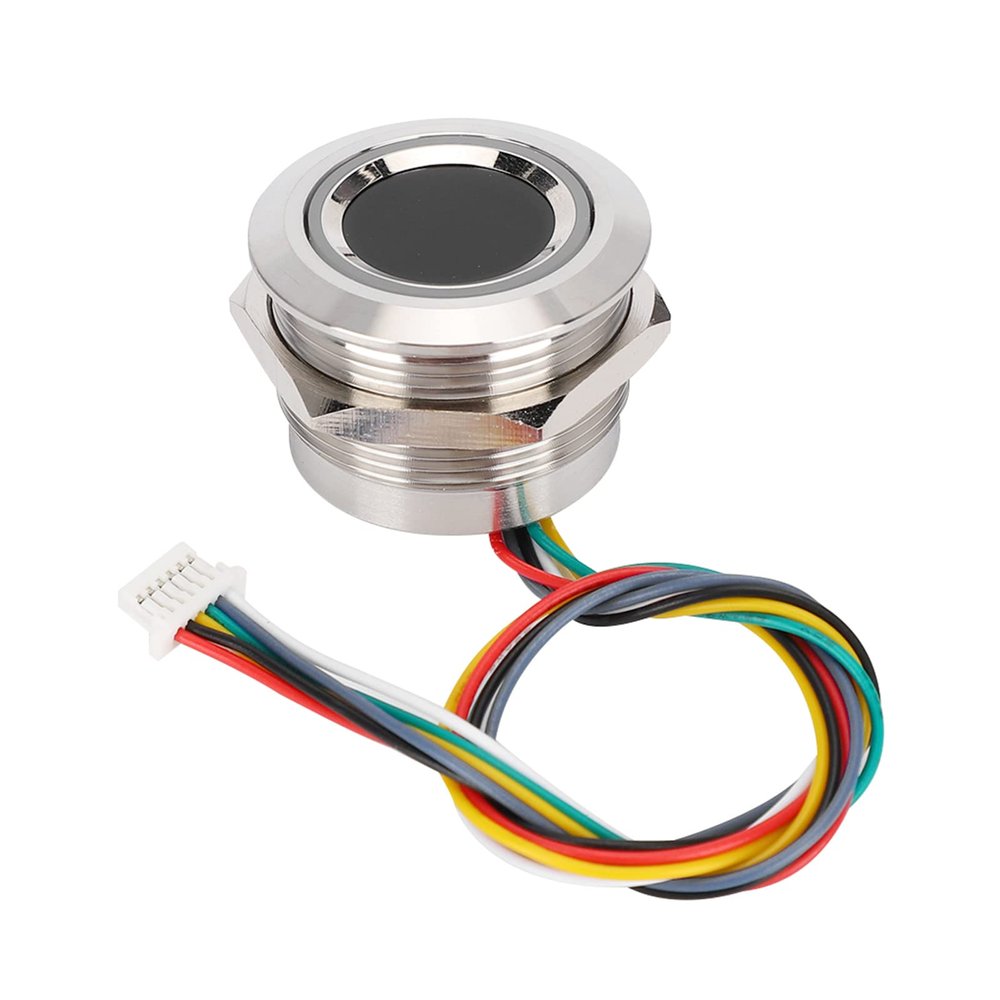

Fingerprint Scanner, Fingerprint Identification Module, Capacitive Fingerprint Module with 2-Color Indicator Light for Access Control Assistance and Safety Box

Description

• Wide ApplicationThe fingerprint access control has a wide application areas, can be embedded in a variety of final products, such as: access control, assistance, safety box.
• 500 Fingerprint Storage This fingerprint identification module has a built-in algorithm chip, circular acquisition chip, using a 192x192 pixel sensor, it can store 500 fingerprint.
• High Recognition RateThe fingerprint modul high recognition rate, flexible for using, it can adapt to dry fingers, wet fingers, light texture fingerprints fingers, and old fingers.
• Professional Performance Integrated image collection and algorithm chip together, it has professional performance. Simple installation, no need complicated tools, convenient for using.
• After Sales ServiceIf there are any using problems or unsatisfactory with our products, please feel to us, our professional customer service team will consult the issues with . Thanks for purchasing from us.

Spec:
Condition: Brand New
Item Type: Fingerprint Identification Module
Material: Metal
Color: As picture shown
Power Supply Voltage: DC 3.3V
Operating Current: 30mA (Typical Value)
Peak Current: 40mA
Fingerprint Image Entry Time: <0.3 Seconds
Acquisition Window Area: Diameter: Approx. 15mm/0.6in
Installation Diameter: Approx.19mm/0.7in
Image Pixel: 192x192 Pixel
Image Resolution: 508dpi
Matching Mode:
Comparison Method: 1:1
Search Mode: 1:N
Storage Capacity: 200pcs
Safety Level: Level 5 (from Low to High: 1, 2, 3, 4, 5)
FAR: <0.0001%
FRR: <1.0%
Search Time: <0.3 S (While 1:1000, Mean Valve)
Upper Interface: RS232 (TTL Logic Level, 3.3v)
Communication Baud Rate: (9600 N) bps, N=1-12 (default Value N=6, 57600bps)
Working Environment:
The Temperature: - 20 - + 45
Relative Humidity: 10RH85RH (No Condensation)

packing list:
1 x Fingerprint Identification Module
