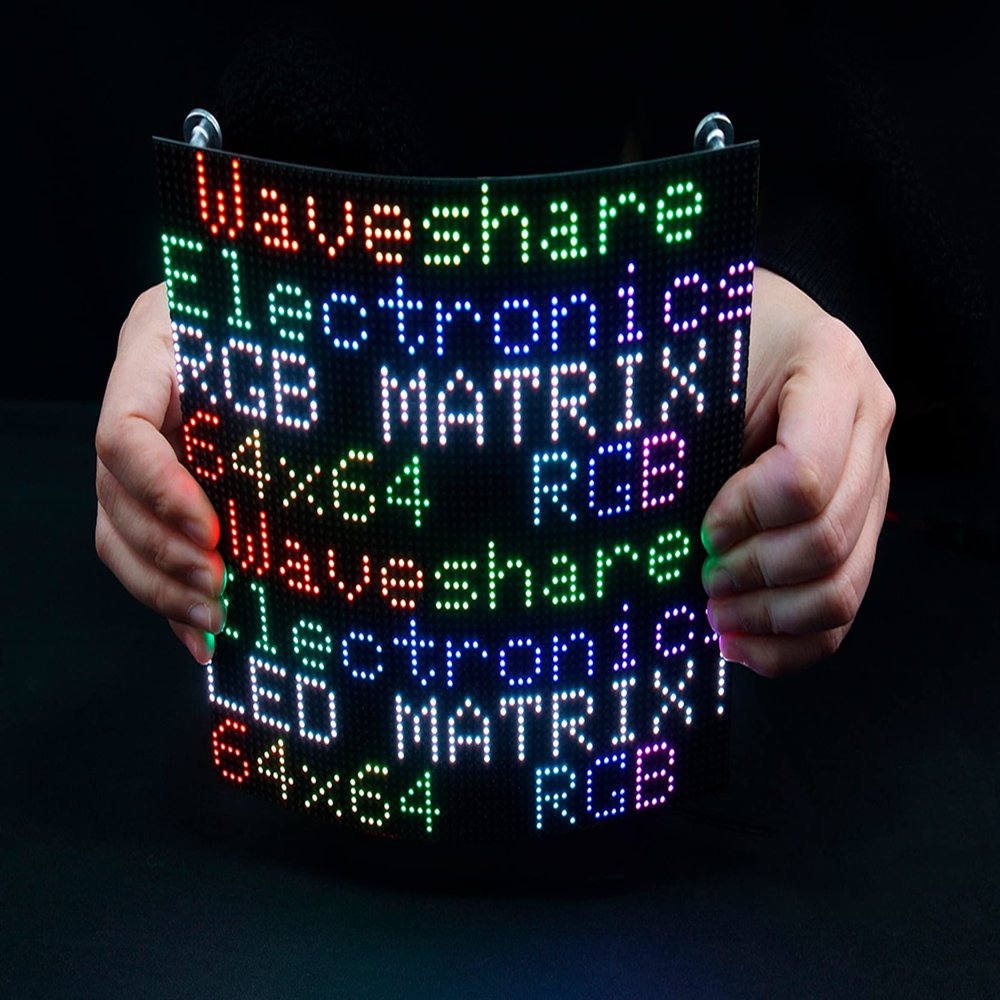

Flexible RGB Full Color LED Matrix Panel 64x64 Pixels, 4096 Individual RGB LEDs,3mm Pitch,Adjustable Brightness and Bendable PCB, Compatible with Raspberry Pi/Raspberry Pi Pico / ESP32 / Ardu

Description

• Flexible RGB full-color LED matrix panel, 4096 individual RGB LEDs, 3mm Pitch, 6464 pixels, adjustable brightness and bendable PCB. allows displaying text, colorful image, or animation.
• Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface.
• Chainable design: Onboard two HUB75 header, one for controller data input, one for output. Multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header, chain support.
• Usage scenarios: Flexible PCB material, lighter and thinner, can be gently bent and suitable for some cylindrical, circular and curved surfaces, or other creative LED display shapes
• Attention: The flexible PCB can be gently bent but do not bend it excessively or repeatedly,otherwise, it is easy to be damaged

6464 Flexible RGB LED Matrix Panel,4096 Individual RGB LEDs, 3mm Pitch, Flexible PCB.Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / for Arduino.
Features
Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

4096 individual RGB LEDs, full-color display, adjustable brightness
Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface
6464 pixels, 3mm pitch, allows displaying text, colorful image, or animation
192192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
Onboard two HUB75 header, one for controller data input, one for output, chain support
Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications
DIMENSIONS: 192mm x 192mm
PIXELS: 6464=4096 DOTS
PITCH: 3mm
PIXEL FORM: 1R1G1B
VIEWING ANGLE: 140
CONTROL TYPE: synchronization
DRIVING: 1/32 scan
HEADER: HUB75
POWER SUPPLY: 5V / 4A (VH4 header input)
POWER: 20W

Chainable Design: Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel,Via HUB75 Input/Output Header
Usage Scenarios: Flexible PCB Material, Lighter And Thinner, Can Be Gently Bent And Suitable For Some Cylindrical, Circular And Curved Surfaces, Or Other Creative LED Display Shapes

Online Development Resources /User Manual ://bit.ly/3Do4olF

Package Content
RGB-Matrix-P3-64x64-F LED matrix and accessories x1
Power supply terminal adapter x1
16P wire ~30cm x1

Note: The flexible PCB can be gently bent but do not bend it excessively or repeatedly,otherwise, it is easy to be damaged.
