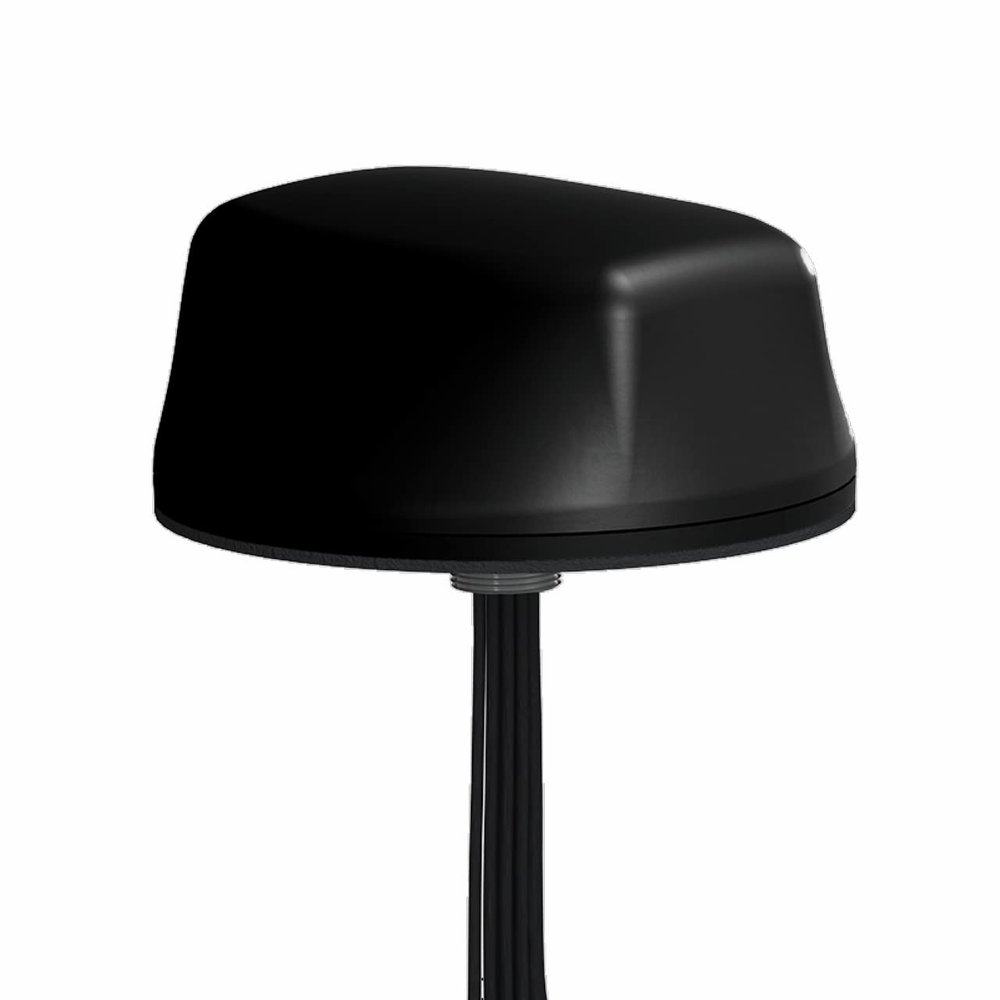

GPC Mobile Mark LTMWG942 7-in-1 4X 5G Cellular, 2X Wi-Fi 6E, 1x GNSS Dual Carrier MIMO Multi-Band Antenna, SMA, 15ft (Blck), LTMWG942-A3CB3CW3JG2C-BLK-180

Description

• Cables 1-4 (5G Cellular): 617-960 MHz, 2 dBi & 1710-7200 MHz, 5 dBi
• Cables 5-6 (WiFi 6E): 2.4-2.5 & 4.9-7.125 GHz, 5 dBi
• Cables 7 (GNSS): 1561, 1575, & 1602 MHz, 5 dBi
• The LTMWG40 Measures 5.5 (140 mm) in diameter with a low profile of 2.38 (60.4 mm) it takes up significantly less space than multiple antennas.
• Mounting 7/8 (22 mm) Dia. Feed Through 3/4 (19 mm) Long Thread for up to 1/2 (13 mm) Thick Surface
• Shock & Vibration IEEE-1478, EN 61373, MIL-810G, TIA 329.2-C
• Dust & Water Ingress IP69K (Stud Mount, When Properly Mounted) IP67
• Mobile Mark Part # LTMWG942-A3CB3CW3JG2C-BLK-180

The LTMWG942 (4x 5G Cellular, 2x WiFi 6E, 1x GNSS) is a 7-cable antenna covering 5G; it is backward compatible for 4G LTE. This antenna has four Cellular elements, two WiFi 6E elements, and one GNSS. With 7-elements, it provides a good match for the dual-carrier modems. There are two pairs of LTE MIMO elements, one pair for each carrier for the LTMWG944. Furthermore, these fleet management systems offer Cellular carrier backup. Also, the 2x WiFi elements provide faster throughput for the advanced WiFi processors. The LTMWG942 covers all Global Cellular & LTE frequencies and is also Private LTE and 5-G ready. Specifically, the Cellular/LTE elements that cover: 617-960 & 1710-7200 MHz. In addition, the WiFi6E elements cover 2.4-2.5 GHz, 4.9-7.2 GHz.
