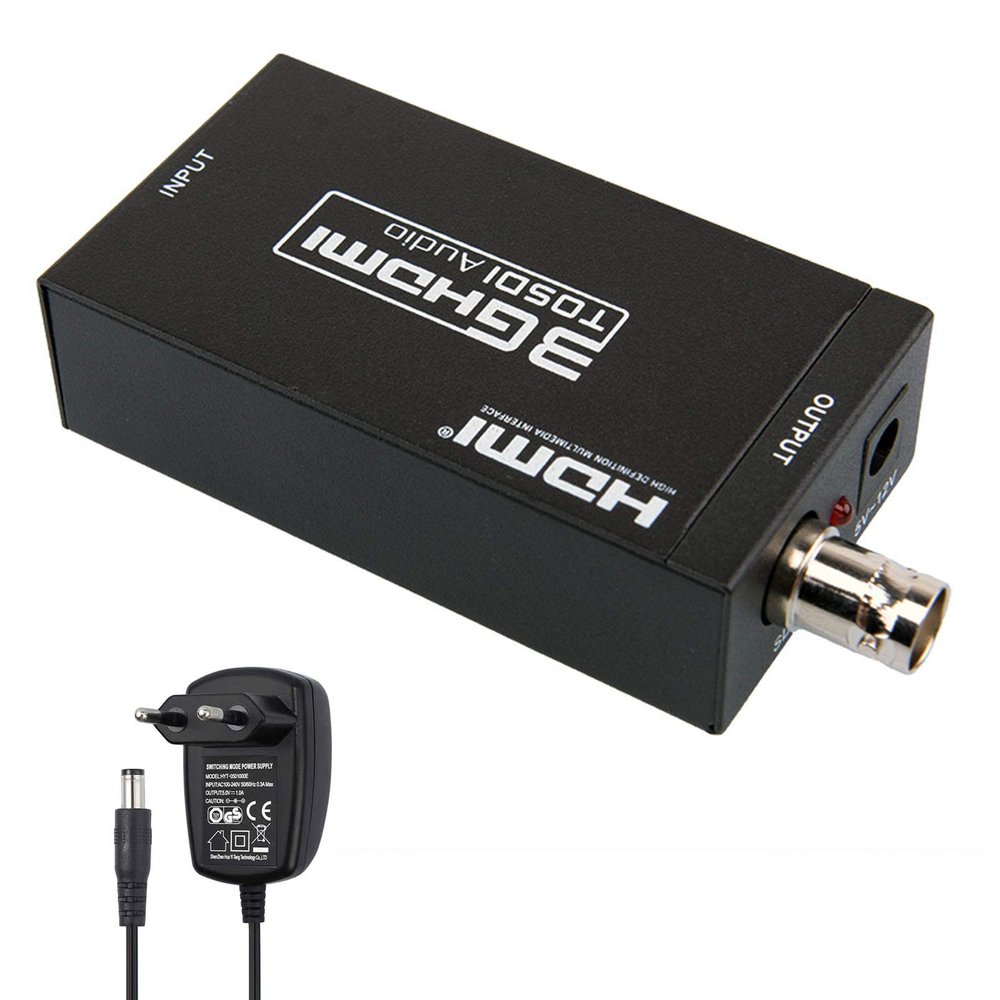

GRACETOP HDMI to SDI, HDMI to SDI Converter HD Video Audio Converter, SDI Converter, HDMI to SDI Adapter SD-SDI/HD-SDI/3G-SDI Adapter for Camera/Home Cinema/SDI Editing System/Game Console

Description

• Mini HDMI to SDI converter: this is an HDMI to SDI converter, the HDMI source is displayed on the SDI display. 1080P full HD display, suitable for multimedia lessons, video conferencing, security monitoring, radio and television, etc.
• HDMI to SDI signal: 480i / 576i to SD-SDI (SMPTE 259M-C, bit rate 270 Mbit/s); 720p / 1080i (SMPTE 292M, bit rate 1.485 Gbps or 1.485 / 1.001 Gbps) for HD-SDI; 1088. 0p on 3G -SDI (SMPTE 424M / 425M-AB, with a bit rate of 2,970 Gbps and 2,970 / 1,001 Gbps).
• Input/Output Resolution: The device supports input/output resolution: 480i, 576i, 720p @ 50 / 59.94 / 60, 1080i @ 50 / 59.94 / 60, 1080p @ 23.97 / 24/25 / 29. 997 / 3 0/50 / 59.94 / 60
• Maximum SDI output distance: HDMI to SDI adapter supports SDI output distance of up to 100 meters (3G-SDI), 200 meters (HD-SDI) or 300 meters (SD-SDI).
• Packaging and service: 5V-12V wide voltage, 1 x HDMI to SDI converter, 1 x 5V power supply (European standard), 1 x manual (English language not guaranteed). We offer a three-month warranty service and a 24-hour online service. If you have any questions, please contact us in time by email.

Mini HDMI to SDI converter, display the HDMI signal source on the SDI display. Ensuring high bit rates of 2,970 Gbps, so you get a high resolution signal without loss. For SDI camera, home theater, surveillance, etc.
Feature:
1. Display the HDMI signal source on the SDI display.
2. Synchronous transmission of audio and video.
3. Easy to install and use.

Product parameters:
1. Displays the HDMI source on the SDI display.
2. SDI interface operates at bit rates of 2,970 Gbps, 2,970/1,001 Gbps, 1,485 Gbps, 1,485/1,001 Gbps and 270 Mbps.
3. Support HDMI input times: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
4. Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bit rates of 270 Mbps)
720p/1080i to HD-SDI (SMPTE 292M, at bit rates of 1485Gbps or 1485/1001Gbps)
1080p to 3G-SDI (SMPTE 424M / 425M-AB, with bit rates of 2.970Gbps and 2.970/1.001Gbps)
5. Supports SDI output distance of up to 100 meters (3G-SDI), 200 meters (HD-SDI) or 300 meters (SD-SDI)

Specifications:
Input connection: 1 x HDMI
Output connection: 1 x BNC (SDI/HD-SDI/3G-SDI)
SDI transfer rates: 2,970 Gbps and 2,970/1,001 Gbps
Input/output resolution: 480i, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60.
Power supply: DC 5V -12V.

Note:
1. Only support the coaxial cable with BNC connector, not the coaxial cable with F-connector.
2. Broadcast standard is not supported.
3. Only HDMI to SDI converters cannot work in reverse.
Box contents:
1 x HDMI to SDI converter.
1 x 5 V / 1 A DC power supply adapter.
