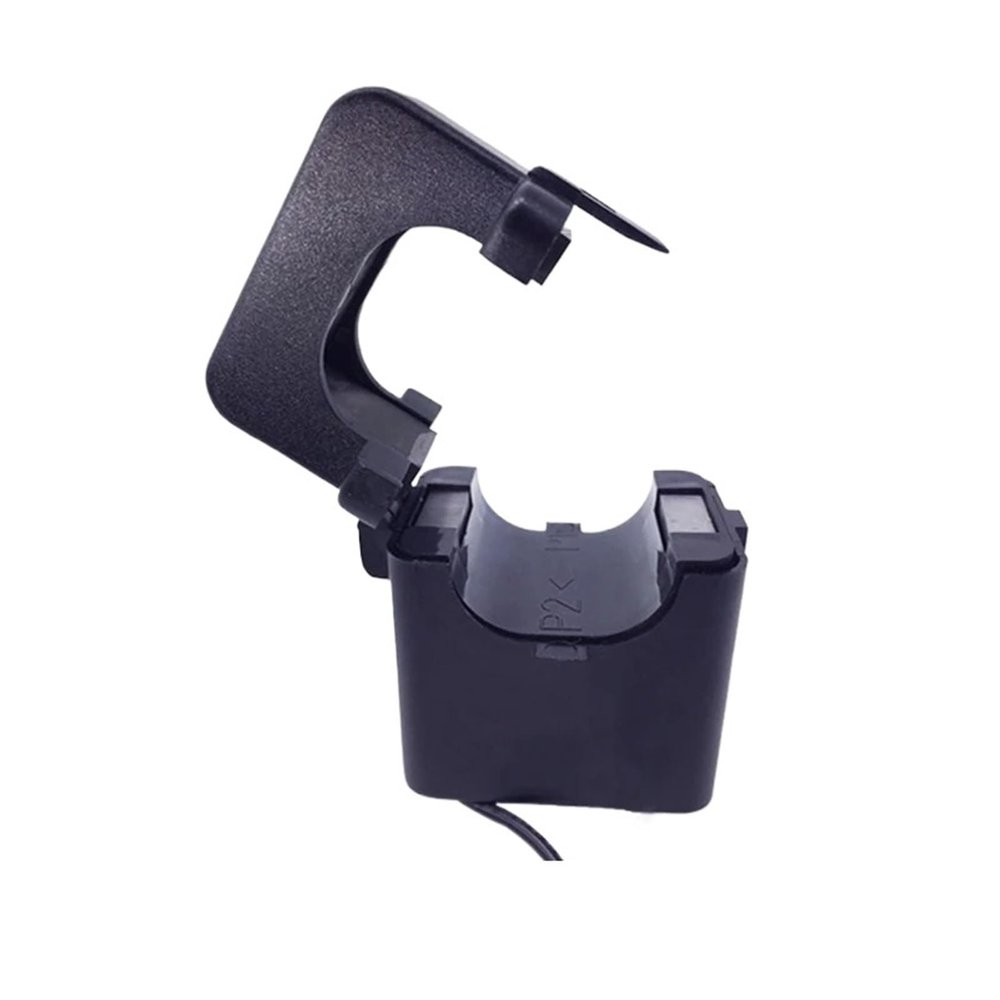

GVMUKNYE Clamp-on Current Transformer AC Current Sensor KCT-50 Clamp-on Current Transformer(250A 5A)

Description

• Isolation Transformers

Isolation Transformers
Electrical Specifications
Rated primary current (ampere) 50/60Hz
10-1000A
Max. Current (continuous)
1200
Accuracy @RL10
0.5/1.0/3.0
range of working temperature
-15~60
Storage temperature range
-15~60
Dielectric Withstand Voltage (Hi-pot)
3.5KV/1mA/1min
Insulation resistance
DC500V/100M or above
Current vs. Temperature Error
<;50ppm/K
Mechanical specifications
PA66 (applicable to UL 94-V0)
Opening angle
180 degree
Approximate weight
800 g
Spool
