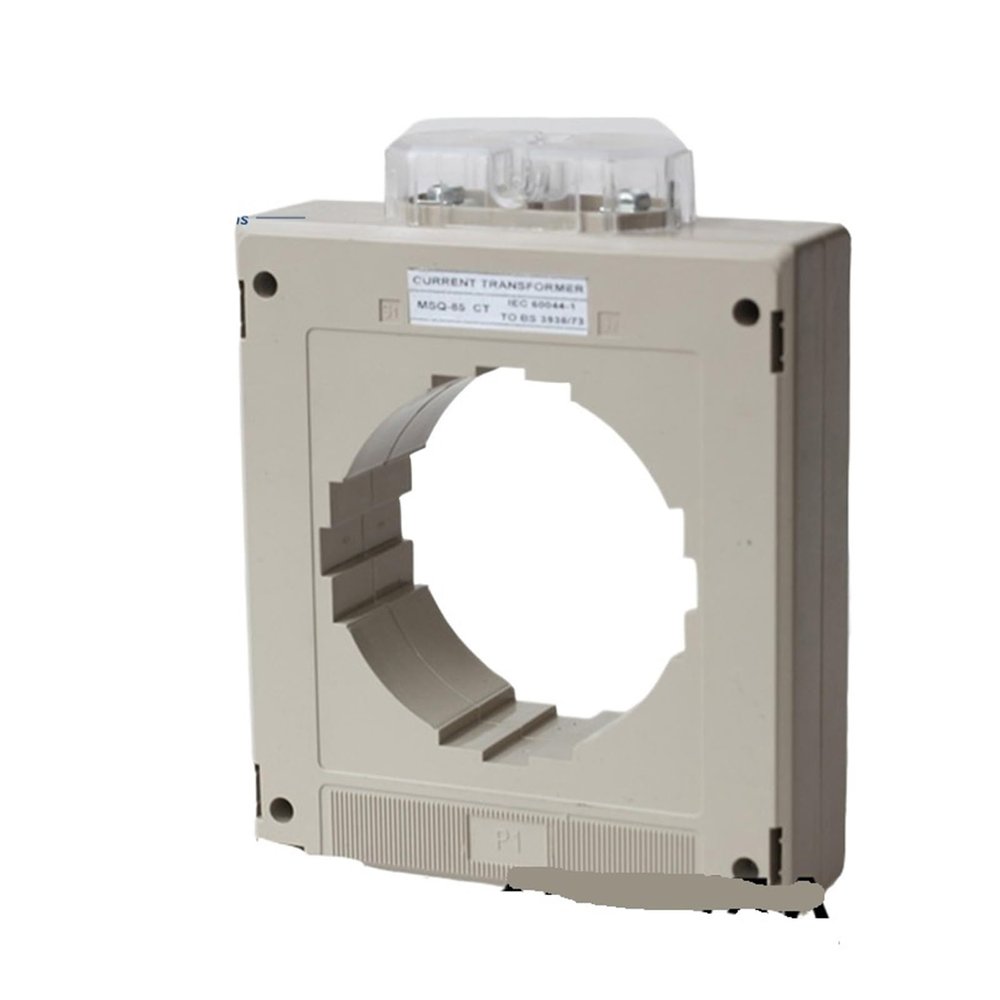

GVMUKNYE MSQ-80 750A 800A 1000A 1200A 1500A 1600A 2000A high Precision toroidal Current Transformer 0.5 Grade Sealed Current Transformer(1000A,5A)

Description

• Isolation Transformers

Isolation Transformers
MSQ-85 1000/5A Current Transformer

MSQ series current transformers can be used to test, control, display and record the operation of electrical equipment.

and protect the device from damage,

Suitable for AC circuits with rated voltage below 660V and frequency of 50-60Hz.

The current transformer can also be used in conjunction with mining transformers.

feature:

1) Safe. Easy to install and portable

2) Wide inner window allows clamping of large cables or busbars

3) Wide range of sizes to accommodate all existing installations

application

1: Current measurement, monitoring and protection of electrical circuits and equipment.

2: Current and power measurement of motors, lighting, air compressors, HVAC systems, air conditioning equipment, and automation control systems

3: Current, power and energy monitoring device.

4: Relay protection device.

Primary current:
5A-6000A
Secondary current:
5A 1A
Standard Approval:
IEC44-1, BS7626
Maximum Voltage:
0.72/3KV
frequency:
50/60 Hz
specified load:
2.5VA/5VA/10VA/15VA
class:
0.5, 1.0
Short-time thermal current:
Ith=60*ih
Rated safety factor:
<; 5

Model
Nominal current ratio
Load (VA) Accuracy
Rated voltage (V)
Rated frequency (Hz)
Level: 0.5
Level 1
MSQ-85
750/5A
7.5
10
720
50/60
800/5A
10
10
720
50/60
1000/5A
10
10
720
50/60
1200/5A
10
15
720
50/60
1500/5A
15
15
720
50/60
1600/5A
15
15
720
50/60
2000/5A
15
15
720
50/60

Contour
