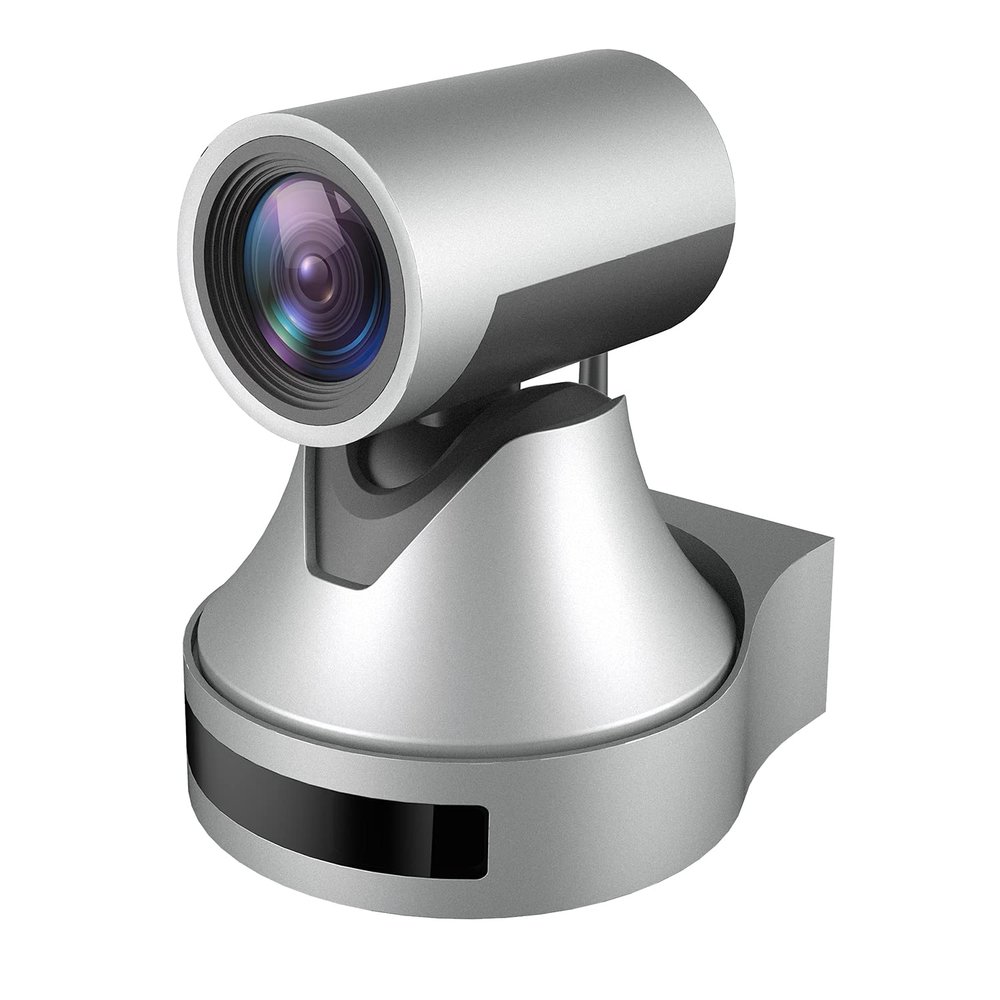

HaiweiTech NDI PTZ Camera 2.0 MP 1080P60 12X 20X 30X Optical Zoom Cameras SDI HDMI CVBS IP USB Camera for Video Conferencing and Education Solution (12X Optical Zoom with NDI)

Description

• Various Optical Zoom lenses: NDI and POE function are optional,12X, 20X, 30X zoom lens for your choice, the lens has a wide viewing angle of 83.7 without distortion.
• Full HD Image: 1 / 2.8 inch 2.07 MP high quality sensor, with maximum resolution of 1920x1080 and output frame rate up to 60 frames per second.
• Super Noiseless Gimbal: High-precision stepped motor and precision motor drive controller are used to ensure that the gimbal runs smoothly at low speed and keep no noise.
• Wireless RF: 4x4 MIMO and beamforming technology, the maximum transmission rate can reach 300Mbps, strong penetration and long transmission distance; 4 external antennas to make the transmission more effective
• Use Case: tele-education, education recording and broadcasting, conference system, global vision training system, tele-medicine, court trial system, emergency command system and so on.

Z25 PTZ Camera Information
Sensor: 1/2.8 inch CMOS sensor
Effective Pixels: 16: 9, 2.07 Megapixel
Video format:
1.HDMI/SDI Output: 1080P601080P501080I601080I501080P301080P25720P60720P50
2.CVBS SD Output: 576i, 480i
Optical Zoom:
12X: f=3.9-46.8mm, 6.3(tele)--72.5(wide), F1.8- F2.4
20X: f=5.5-110mm, 3.3(tele)-54.7(wide), F1.6 F3.5
30X: f=4.3-129mm, 3.34(tele)--65.1(wide), F1.6 - F4.7
Minimum illumination 1Lux@F1.8AGC ON
Focus: Auto/ Manual/ One Push
White balance: Auto/ Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K/ 7000K
BLC: ON/ OFF
Electronic Shutter: Auto/ Manual
WDR: OFF/ Dynamic level adjustment
Video Adjustment: brightness, color, saturation, contrast, sharpness, B/W mode, Gamma Curve
SNR: >50dB

Input/ Output
Video Compression: H.265/ H.264
Audio Input Interface: Dual track 3.5mm line input
Audio Compression: AACMP3G.711A
IP Interface: 100M IP port (10/100BASE-TX)
Visca Protocol: RTSP/ RTMP/ ONVIF/ T28181/ VISCASupport remote upgrade, reboot and reset
Control Signal Interface: RS-232 I/O, RS485
Baud Rate115200/9600/4800/2400
Supply Adapter: Input: AC110V-AC220V, Output: DC12V/1.5A RF Parameters
Operating frequency range: 5.15.9 (GHz)
Transmit power: 17dBm
Channel bandwidth: 40MHz
Modulation mode:OFDM
Transmission distance: 300 meters (outdoor open and unobstructed), 150 meters (indoor free and unobstructed)
Data transmission rate: Max 300Mbps (determined by transmission distance and channel occupancy)
Anti-interference mode: Manual / automatic selection of channel mode PTZ Parameter
Pan Rotation: -170+170
Tilt Rotation: -30+90
Pan Control Speed: 0.1 60/s
Tilt Control Speed: 0.130/s
Preset Number: 255 presets10 presets by remote controller Package
power supply, RS232 control cable, remote control, instructions, guarantee card
