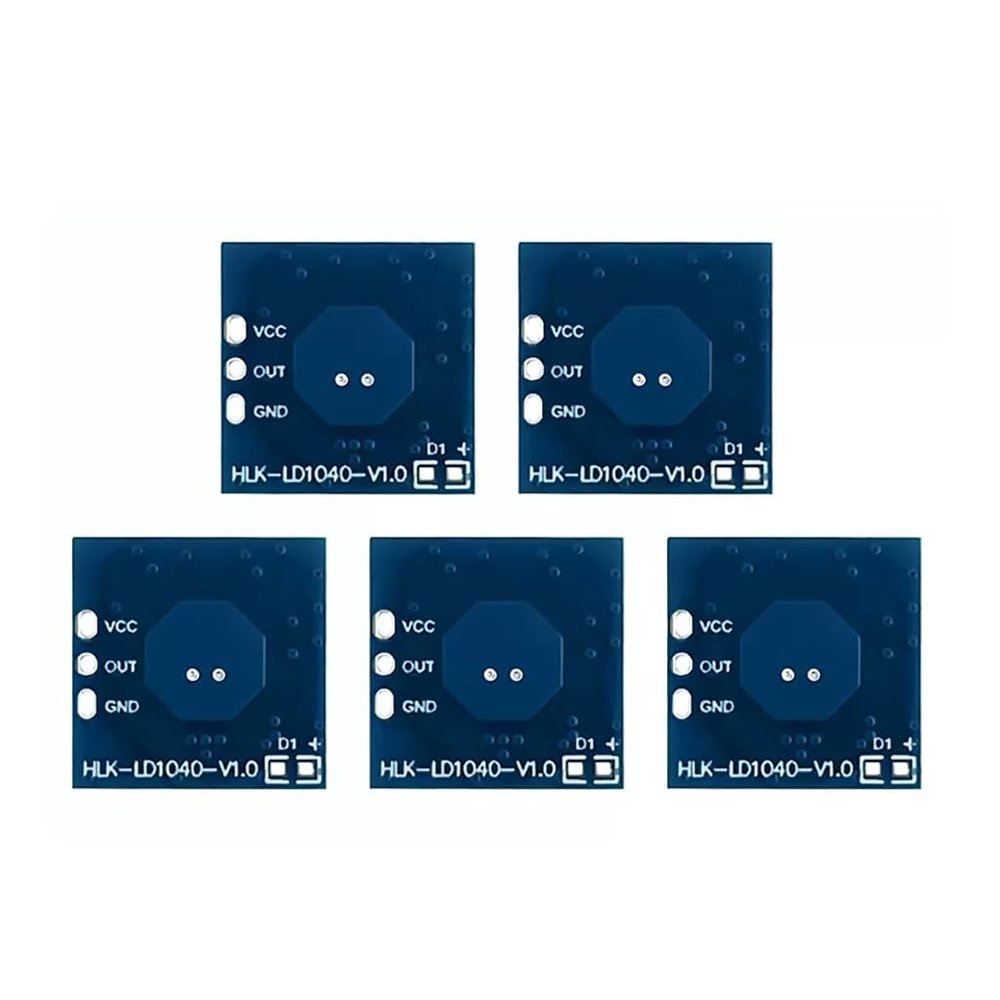

HLK-LD1040 X-Band 10G Micro Motion Intelligent Sensor Low Power RaDAR Sensor Module Support Fast Inspection Mode (5Pcs)

JMT

HLK-LD1040 X-Band 10G Micro Motion Intelligent Sensor Low Power RaDAR Sensor Module Support Fast Inspection Mode (5Pcs)

46,59€ 77,65€
Buying Bulk?
  • Order within 17 hours and 29 minutes to get between June 19 - June 25
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • This is a motion sensing module based on X-band radar chip, with a centre frequency of 10.525GHz.
  • The design adopts fixed frequency, directional transmitting and receiving antenna (1T1R), integrated IF demodulation, signal amplification and digital processing, with the ability of delay setting, adjustable sensing range and light intensity detection.
  • Supporting the drive power supply should be 5-1 2V (recommended 5V), drive current is not less than 5mA, the power supply ripple amplitude needs to be controlled within 100mV, frequency fluctuations should be small
  • Interface type: Hole spacing 2.0/2.54mmx3PIN. O: high and low level outputs. V: 5-1 2V. G: GND, power ground (The other end is the download debugging port)
  • Warm Tips: Drive power and radar module assembly, should avoid radar module bottom or antenna surface, facing the drive power module, and should try to drive away from the power module inside the rectifier bridge, switching transformer and other frequency interference devices, in order to prevent interference with microwave signals.
