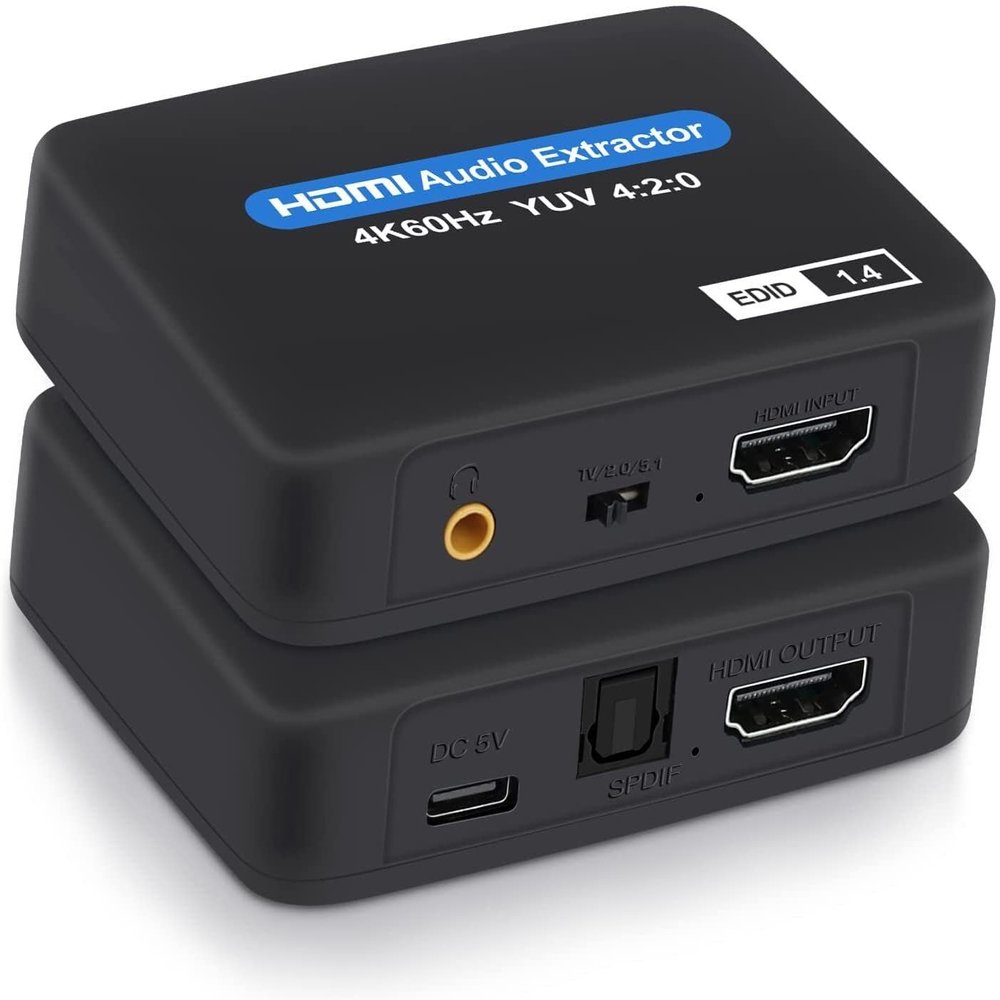

KSRplayer HDMI Audio Extractor 8K 60Hz 4K 120Hz 7.1CH/5.1CH/2CH Stereo Extractor Converter Optical TOSLINK SPDIF + 3.5mm Audio Splitter Adapter (4K)

Description

• HDMI audio extractor splitter support 4Kx2K@60Hz/ 3D/1080p/1080/720p. HDCP1.4, YUV:4:2:0. Support video color format:24bit/deep color 30bit. Audio format: DTS-HD/dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD(Not Support Always Dobly Digital Plus). Max Bandwidth of 10.8Gbps. Using AWG26 HDMI standard cable, the longest input and output can reach 32.8ft respectively.
• HDMI Audio Converter has three kinds of audio mode TV, 2.0CH and 5.1CH. 3.5MM audio output supports 2.0CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2.0CH PCM, 5.1CH .( Note: Our Audio Extractor can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.)
• 4K HDMI Audio Extractor Embedder is Suitable for various HDMI source devices like Blu-ray/ DVD/ HD player, Amazon Fire TV, Apple TV, PS5, Xbox, PC/laptop, HD camera, HD DVR etc. Due to voltage supply each device can support is different and limited,For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), we highly recommend using power adapter.
• One HDMI input to one HDMI output + Optical Toslink SPDIF and 3.5mm stereo audio output, achieving the synchronization of audio signal separation. (Tips: Optical Toslink SPDIF and 3.5mm audio support output separately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
• 1x HDMI Audio Extractor Converter, 1x 5V Power Adaptor, 1x User Manual. Our products are backed with ONE YEAR limited warranty.

Features
HDMI audio extractor:
One HDMI input to one HDMI+optical Toslink SPDIF and 3.5mm stereo audio output to achieve synchronization of audio signal separation. (Note: Optical Toslink SPDIF and 3.5mm audio support output to audio channel, amplifier, headset and other audio receivers respectively, without connecting TV/monitor)
4K@60HZ :
HDMI audio extractor splitter support 4Kx2K@60Hz /3D/1080 pages/1080/720 pages. HDCP1.4YUV:4:2:0 Support video color format: 24bit/deep color 30bit. Audio format: DTS-HD/dolly trueHD/LPCM7.1/DTS/dolly-AC3/DSD (dobly Digital Plus is not always supported). The maximum bandwidth is 10.8Gbps. With AWG26 HDMI standard cable, the maximum input and output can reach 32.8 feet respectively.
Three audio editing settings:
HDMI audio converter has three audio modes TV, 2.0CH and 5.1CH. 3.5MM audio output supports 2.0CH PCM LPCM stereo audio; The optical SPDIF output supports the incoming 2.0CH PCM, 5.1CH. (Note: Our audio extractor cannot decode these audio formats. If your amplifier or speaker does not support these audio formats, there will be no audio on the speaker or amplifier, so please set the audio format on the HDMI source to PCM/LPCM audio format.)
Wide compatibility:
The 4K HDMI audio extractor Embedded is applicable to various HDMI source devices, such as Blu ray/DVD/HD player, Amazon Fire TV, Apple TV, PS5, Xbox, PC/laptop, HD camera, HD DVR, etc. Because each device supports different and limited voltages, it is recommended to use power adapters for some devices with low power HDMI ports (such as PS4, PS4 Slim, and other Sony devices).
Specifications
HDCP version: HDCP1
HDMI version: 4HDMI1 4B
HDMI resolution: 2160P/30HZ/1080/50/60HZ/1080/720P/480P
Support video color format: 24bits/dark color 30bit/36bit
Audio output: SPDF+3.5MM audio
Maximum bandwidth: 340MHZ
Maximum transfer rate: 10.2Gbps
Input/output TMDS signal: 0.5-1.5V p-p (TTL)
