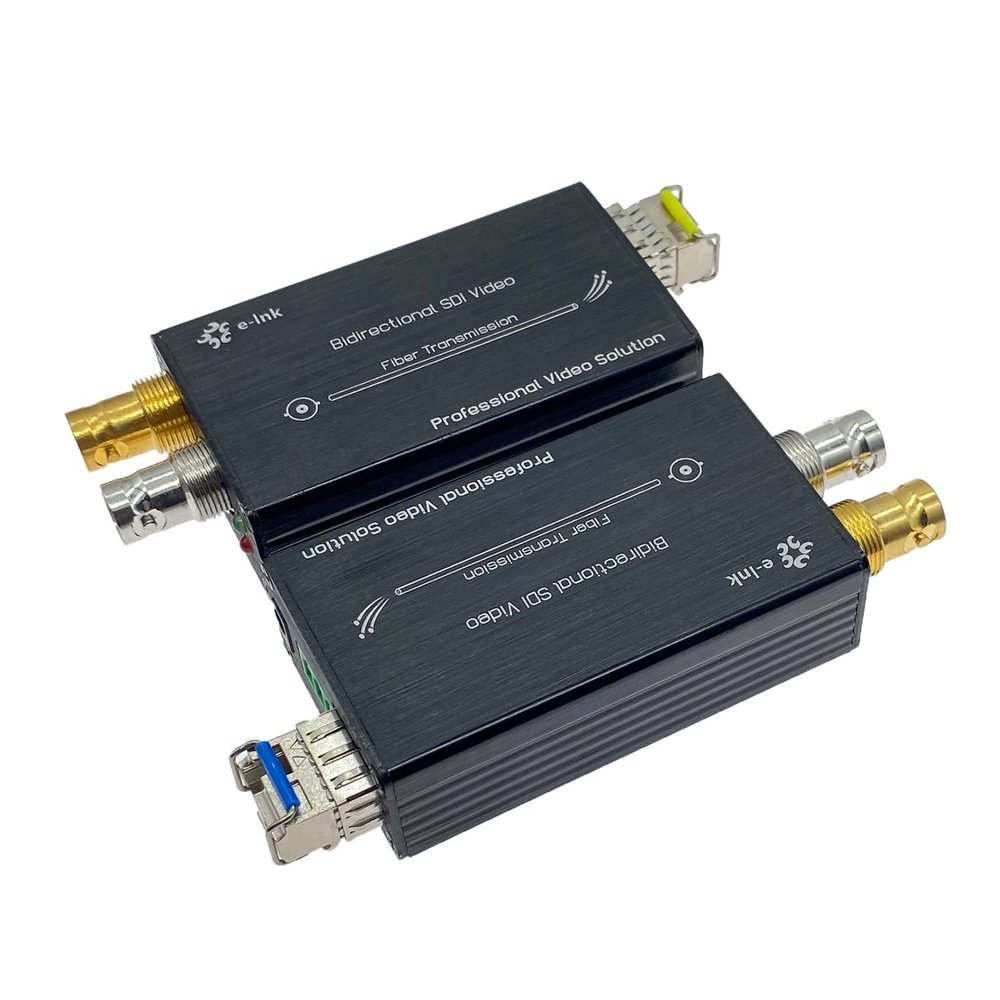

Mini Bidirectional 3G/HD SDI Fiber Extender 1080P 60Hz Micro Bi-Directional SDI Over Fiber Converter Broadcast Level SDI Video Optical Transceiver Single-Mode Single Fiber 20km

Description

• 3G/HD-SDI Video: This Bidirectional SDI over fiber system is used to send Bidirectional 3G HD-SDI signals to remote display devices, using a single LC/LC Fiber Optic cable, Support transmission of two-way (bi-directional) high-definition SDI video over a single-mode fiber with simplex LC interface.
• Lossless and non-compression Transmission: The Bidirectional SDI Fiber converter support SDI with 8-channel audio embedded, resolution up to 1080P@60Hz, Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s. Full digital non-compression broadcast level transmission up to 20Km.
• Bi-directional high Speed Serial Data: With Bidirectional RS-485 data (control PTZ) and 1 Channels audio bidirectional (BNC connectors) and one 10/100Mbps Ethernet ,also one stereo 3.5mm audio in and out.
• Aluminum Casing with Compact Size: The SDI Fiber Extender using Aluminum material with exquisite appearance, good corrosion resistance. And also only 1.7*0.87*2.83 inch in size, its so small and can install on cameras.
• Support CWDM/DWDM SFP: The Fiber optic support CWDM/DWDM technique. You can use CWDM/DWDM SFP module when you only have limited fiber cable resource.

Overview:
This Mini-type Bidirectional SDI Fiber Converter supports 1-channel HD Video (audio embedded), resolution up to 1080P@30Hz, Automatic reclocking 270Mbit/s - 1.48Gbit/s. Support Automatic cable equalization to ensure signal integrity.
Features:
1 channel Bidirectional SDI video.
Each SDI channel includes 8-channel audio embedded.
Automatic reclocking 270Mbit/s - 1.48Gbit/s.
Directly compatible with HD-SDI camera systems.
65600ft(20km) Long distance transmission.
Full digital non-compression broadcast level transmission.
Bi-directional high Speed Serial Data
Specification:
Video Formats: 1.5 Gbps, 270 Mbps (automatically selected based on input)
Fiber Interface: Simplex LC
Video Interface: BNC
Transmission Distance: 550m-20Km
Wavelength: 1310nm/1550nm
Power input: 5-24V DC
Power Consumption: <5W
Casing: Aluminum Case
Dimensions: 80*40*20 mm(1.7*0.87*2.83 inch)
Weight: 1KG/pair
Mounting Options: Desktop
Working Temperature: -40~+75( -40 to 167)
What's in the package:
2 * Bidirectional SDI Video Extender
2 * Power Adapter
2 * SFP Module
1 * SDI Fiber Converter User Manual
