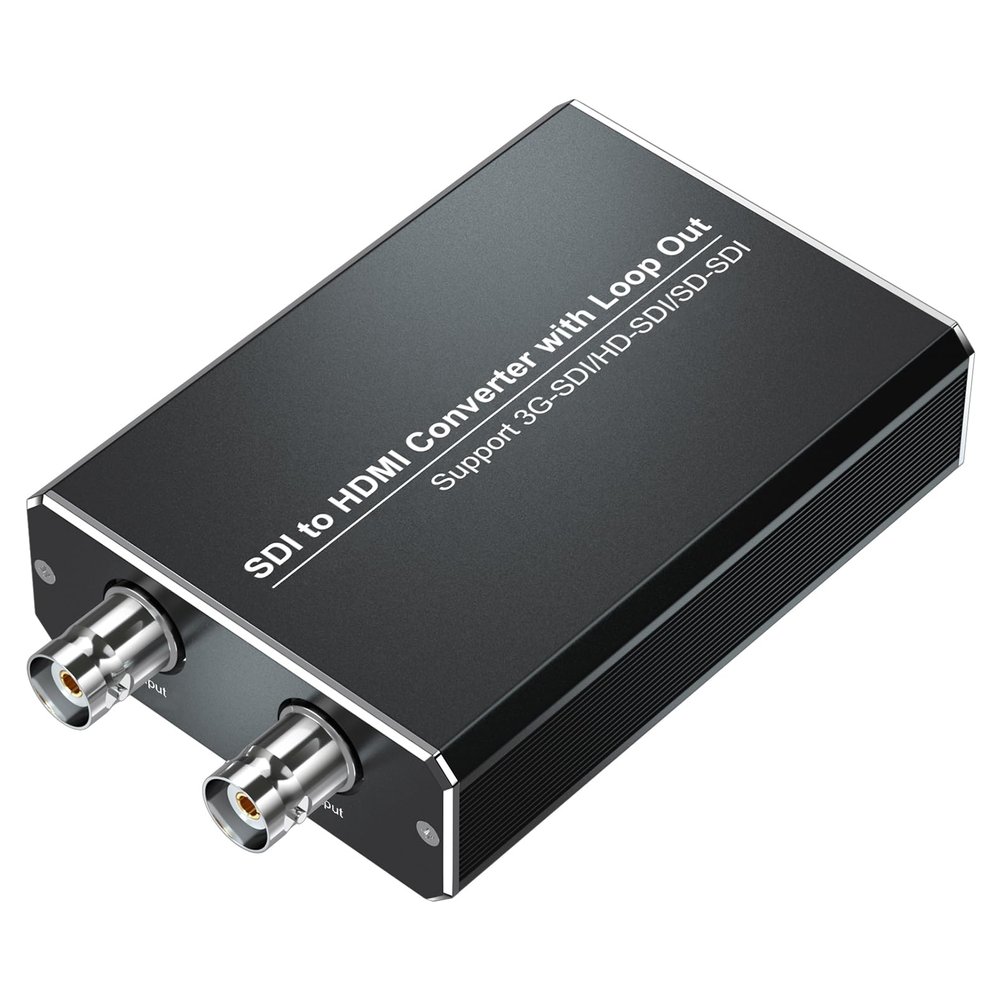

MISOTT SDI to HDMI Converter with Loop Out, 1080P HDMI Adapter - Compatible with 3G/HD/SD-SDI, Auto Format Detection and Audio De-embedder

Description

• SDI to HDMIThis SDI HDMI adapter is designed to convert 3G-SDI/HD-SDI/SD-SDI signals into HDMI signals to view on HDMI screens, auto format detection and audio & video synchronous display.
• With SDI Loop outThis SDI to HDMI converter supports SDI loop out for local display.
• Long Distance TransmissionIt can convert SDI signals into HDMI signal and transmit it over long distance up to 300ft (3G-SDI)/500ft (HD-SDI)/1000ft (SD-SDI); SDI loop out cable length up to 300ft.
• Compatible with 3G-SDI/HD-SDI/SD-SDISDI signals compatible with: 3G-SDI--1080p@60/59.94/50Hz(SMPTE 425M, Level A); HD-SDI--1080i@60/59.94/50Hz, 720P@60/59.94/50Hz; SD-SDI--NTSC@59.94Hz, PAL@50Hz. Bit rate supports: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270 Mbps
• Compact & Easy to UseAluminum shell, great heat dissipation. Simple & easy to operate. No drivers needed, just plug & play.

Attention:
1. One way conversion, only converts SDI to HDMI, can not support HDMI to SDI.
2. Only supports SDI signal, does not support RF, CVBS, AHD, TVI, CVI.
3. Does not support 6G/12G SDI.
4. If using with ATEM, please set ATEM to 720P@60Hz.

This SDI to HDMI converter is designed to convert 3G-SDI/HD-SDI/SD-SDI signals into HDMI to view on HDMI screens.
Our SDI HDMI adapter supports SDI loop out for local display.

Specifications:
1. Input: 1 x SDI
2. Output: 1 x HDMI Type A + 1 x SDI loop out
3. SDI Signal FormatSDI-SDI/HD-SDI/3G-SDI
4. SDI Input Resolutions: 480i, 576i, 720P@30Hz/50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/25Hz/ 30Hz/50Hz/60Hz
5. HDMI Output Resolutions: 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/ 25Hz/30Hz/ 50Hz/60Hz
6. Audio Input Signal: SDI embedded
7. SDI Data Rates: 270Mb/s, 1.485Gbps, 2.97Gbps
8. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
9. Power Supply: 5V/1A
10. Supports multiple cascaded

Package List:
1 x SDI to HDMI Converter
1 x Power Adapter
1 x User Manual
