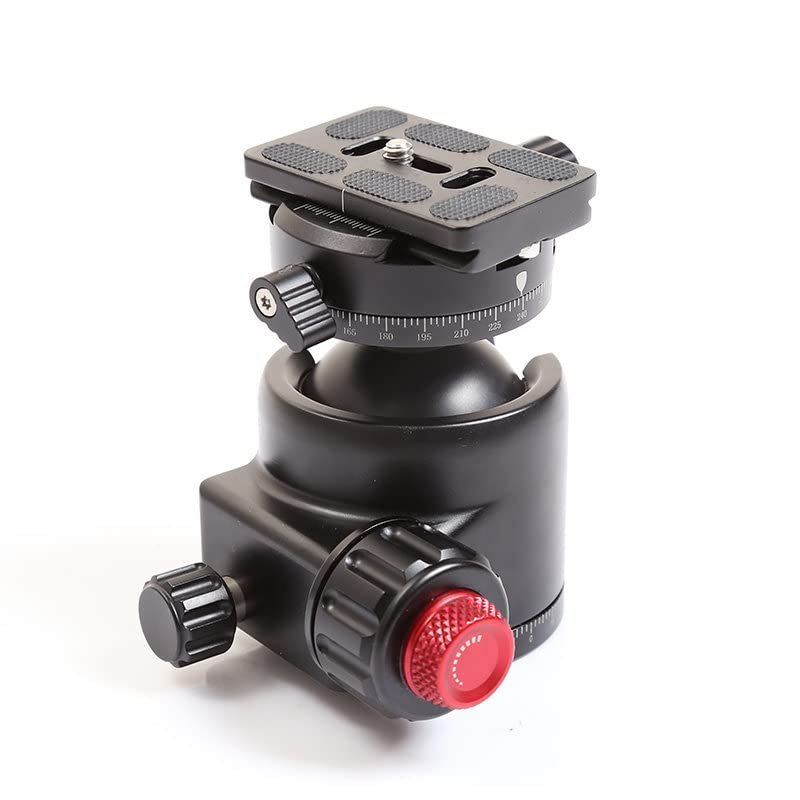

OBO H520 Low Profile Damping Ball Head Unique 52mm Ball Double 360 Panoramic Tripod Head CNC Aluminium Alloy Metal Ball-Head Arca Swiss Quick Release Plate Max Loading 77lbs/35kg

Description

• Low Profile ball head: The damping regulator has been added to the ball locking knob to make it easier to control the angle of the ball, The height is 102mm, the ball diameter is 52mm, the diameter of the base is 64mm, weight is only 0.65kg, and the bearing capacity reaches 35kg
• Damping ball head and Double 360 Panoramic : The damping regulator has been added to the ball locking knob ,Accurate Scale and Rigorous Structural give you precise and easy control over each plane of movement that your camera move through; Achieve better effect at shooting or video recording.
• Craft: laser engraving,Hard anodized finish and CNC Precision machined parts, The main body of the ball head adopts hollow-out design, which makes its appearance more special.
• Detail: with Arca-Swiss quick release plate , Quick release plate screw 1/4, Base plate holes is 3/8, The base has a 360 scale display to help the camera easily capture the panorama.The maximum opening width of the clamp seat is 39.8mm when the locking knobs are fully released .
• Wide Compatibility: U-shaped notches on the main body of the ball head, so you can easily switch into vertical shooting from horizontal. You can use this ball head with tripod, monopod,camera slider or mini tripod,for installing camera,Camcorder,DV, mobile phone, telescope.
• Screw and hole:3/8screw hole at the bottom can be attached to tripod, monopod, slider and other stands. 3*1/4in to 3/8 in Screw adapt is included. Equipped with 1/4 screw, the removable arca-swiss quick release plate is suitable for DSLR Nikon Canon Sony Samsung cameras etc

OBO Tripod :Relying on high quality professional carbon fiber tripod and head ball always win customers.
H520 Ball Head from OBO factory

Model :H520 Color:Black

Technical Details

Material: aluminum
Head height: 102mm /4in
Head base diameter: 64mm/ 2.52in
Net weight: 0.65kg / 1.43Lb
Max loading: 35kg /77.16lb
Pan Rotate Angle: 360 degrees
screw holes: Base plate holes is 3/8 and quick release plate screw 1/4 screw thread

Package Size: 11*10.5*8cm/ 4.33"*4.13"*3.15"in
Bubble Level: Yes
Package Includes

1 x Instruction Manual

Note: Camera and Tripod NOT included.
