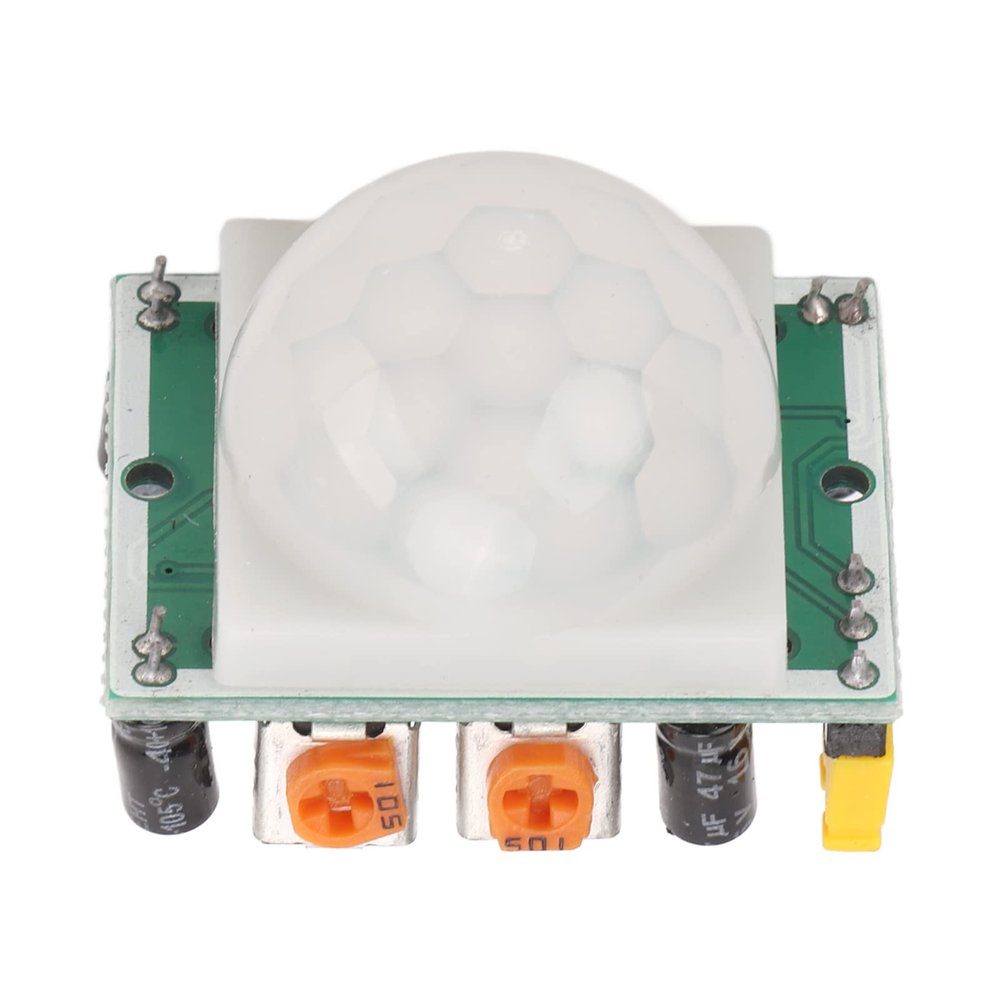

Tyenaza PIR IR Module, Human Body Pyroelectric Infrared Sensor Module DC 4.820V for Buzzers Automatic Doors Electric Fans

Description

• How to Work: The heavy duty human body infrared sensor module is an automatic control product based on infrared technology, with higher working efficiency, bring you a smart and convenient life
• Excellent Performance: The PIR IR module is with high sensitivity, strong reliability, ultra low power consumption and ultra low voltage working mode, stable in performance, durable in use
• Wide Application: The Pyroelectric Infrared Module is widely used in various types of automatic induction electrical equipment, especially automatic control products powered by dry batteries
• Fully Automatic Induction: When people enter the sensing range, the output will be high level, and when people leave the sensing range, the high level will be automatically turned to low level after a delay
• Powerful Function: Automatically and quickly turn on various incandescent lamps, fluorescent lamps, buzzers, automatic doors, electric fans, dryers and automatic washing machines and other devices

Specification:
Item Type: PIR IR Module
Material: PCB
Application: Widely used in various types of automatic induction electrical equipment
Operating Voltage Range: DC 4.8-20V
Quiescent Current: <50uA
Level Output: High 3.3V, low 0V
Trigger Mode: L non-repeatable trigger, H repetitive trigger (default repetitive trigger)
Delay Time: 0.5-200S (adjustable), can be produced in the range of a few tenths of a second - dozens of minutes
Blocking Time: 2.5S (default), can be made in the range of tenths of seconds - tens of seconds
Circuit Board Dimensions: Approx. 32mmx24mm/1.3x0.94in
Sensing Angle: <100 cone angle
Working Temperature: -15 to +70
Induction Lens Diameter: Approx. 23mm/0.91in

Package List:
1 x PIR IR Module
