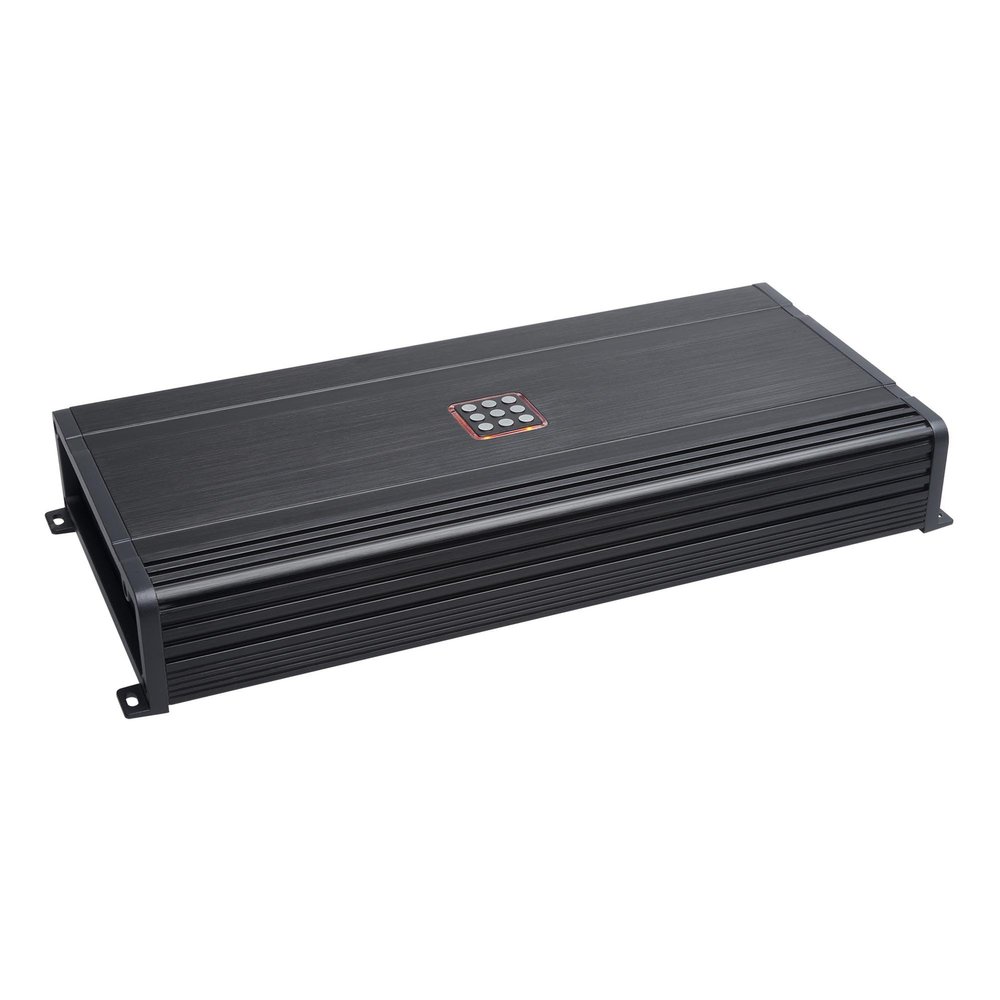

PowerBass PBX-600.6-6-Channel Compact Amplifier, Class-D, 100 watts x 6 at 4-Ohms, 150 watts x 6 at 2-Ohms

Description

• 900 Watt High Efficiency Full-Range Class D Design
• Front Load Terminal Design
• 2-OHM Stable Six Channel Amplifier
• Ultra Low Current Draw
• Double Sided Copper Plated PCB

900 Watt High Efficiency Full-Range Class D Design
Front Load Terminal Design
2-OHM Stable Six Channel Amplifier
Ultra Low Current Draw
Double Sided Copper Plated PCB
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
Variable Subsonic Filter
High Current Voltage Ripple Rejection Circuitry
Balanced RCA Inputs
Selectable Auto Turn On Circuit
Remote Soft Delay Turn On/Off Circuit
40 Click Variable Detente High/Low Pass Electronic Crossover
LPF / HPF / x10 BandPass Filter Selector Switch
Variable Gain Control
Calibrated Visual Clip Indicator
Wired Secondary Remote Gain Control Included
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output

Specifications
Peak Power: 900W RMS / 1800W PEAK
Subwoofer Frequency Range: 10 Hz - 250 Hz
Inputs: 3 Pairs RCA (speaker level compatible)
Dimensions (in Inches): 15x7x2.25
Depth: 15
Channels (mono): 6
4-ohm Power: 100 watts x 6
4-ohm Mono Power: 300 watts x 3
2-ohm Power: 150 watts x 6
1-ohm Mono Power: N/A
Variable Subsonic Freq: N/A
Height: 2.25
Width: 7
Low-Pass Crossover Freq: 25 Hz - 250 Hz
High-Pass Crossover Freq: 50 Hz - 350 Hz
Crossover Slope: 12 dB
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >90 dB
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 100 watts x 6
Output Power (14.4 V) @ 2 ohm: 150 watts x 6
Output Power (14.4 V) @ 1 ohm: N/A
Frequency Response: 10 Hz - 40 kHz
