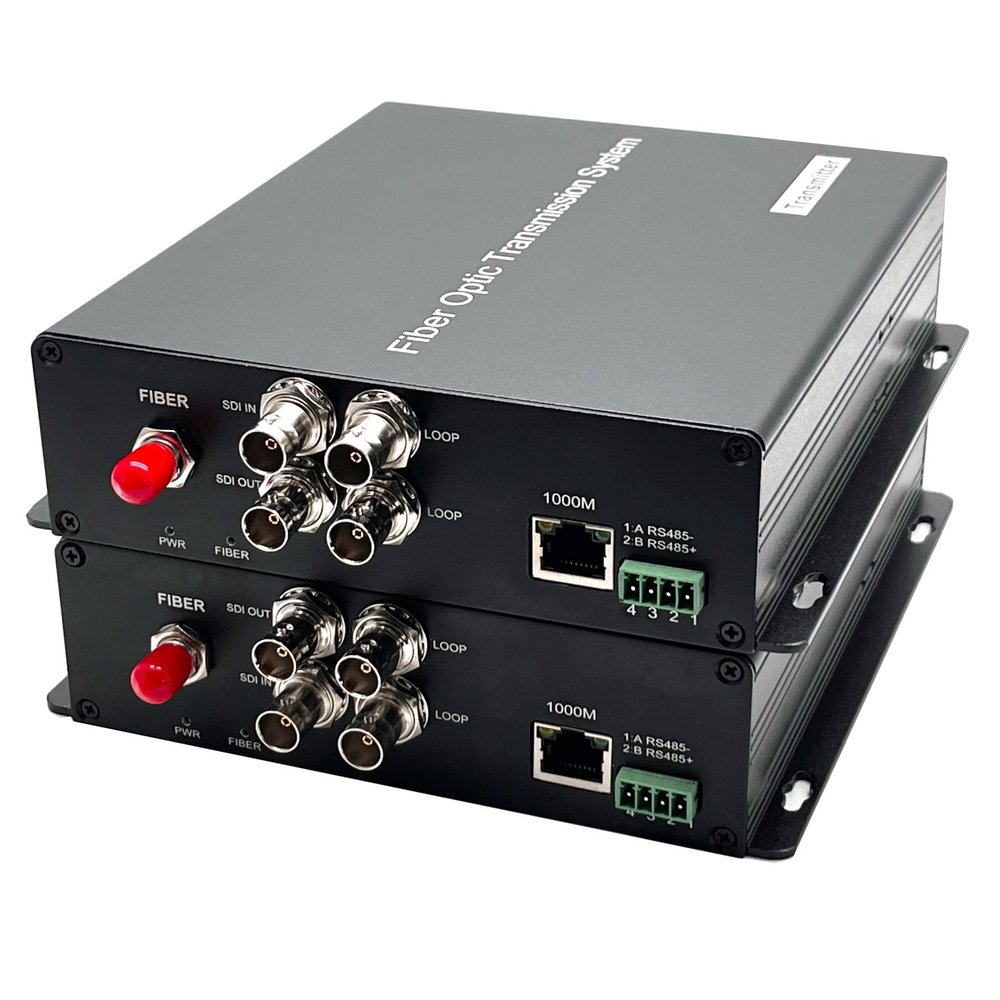

Primeda-telecom Broadcasting Bidi 3G SDI HD Video Gigabit Ethernet RS485 Over Fiber Optic Media Converters, ST Port Singlemode up to 20Km (12.4mi) Uncompressed 1 Set

Description

• Professional Broadcasting Quality. This unit extends 1 channel Bi-directional uncompressed 3G-SDI, HD-SDI or SD-SDI video over single fiber optic cable. Single-Mode Fiber transmission distances up to 20Km(12.4miles), Compatible with multi-mode Fiber up to 300Meters.
• Support video resolution 1080P@60,59.94, 50,30,25,24Hz and 1080I@60,50Hz and more. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant.
• Support 1 Gigabit Ethernet and Bidirectional RS485 data. it can extend network signal,the network signal (RJ45 port) can be through same fiber optic from Sender side to Receiver sid., like PC and IP camera with RJ45 port.
• With clock recovery, clock shaping, it can make your video image more smooth,No flash. LED Status Provide Rapid Indication of Operating Parameters.
• No need to set up, plug and play.

Description:
The unit can extend 1 Bi-directional 3G/HD-SDI and 1 Gigabit Ethernet and Bi-directional RS-485 data over a fiber optic to far distance synchronously. Uncompressed real-time audio and video transmission, No delay. Professional Broadcasting High quality design.
OEM ,Custom made is acceptable,Contact us if you have special requirements.

Function:
1x Bi-directonal 3G-SDI with Loop out
1x Gigabit Ethernet
1x Bi-directional RS485
ST, Single-mode up to 20Km
AC100-240V, 5V

SDI Video:
1. Physical Interface: BNC
2. Max Resolution: 1920 x 1080 @ 60Hz
3. Video Input and Output Impedance: 75 (unbalanced)
4. Video Input/output VoltageTypical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.

Optical Interface:
ST (FC/SC is optional)

Data
1. Physical Interface: standard industry block terminal
2. Interface signal: RS485 Bi-direction
3. Baud Rate:0-400Kbps
4. BER 100,000 hours

Package Include:
1. 3G-SDI Transmitter
2. 3G-SDI Receiver
3. 2 x External Power adapters (US/EU/UK/AU standard is optional)
4. 1x FREE 3M fiber patch cord
5. 1 x User manual
