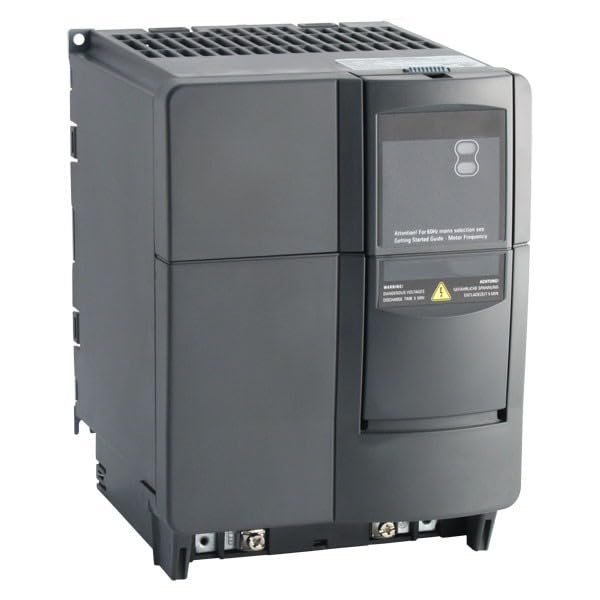

QAZxmxs New 6SE6440-2UC21-5BA1 6SE6440-2UC22-2BA1 6SE6440-2UC23-0CA1 Module Warranty for one Year (6SE6440-2UC22-2BA1)

Description

• Net Weight (kg):3.3 Kg
• Packaging Dimension: 235.00 x 180.00 x 250.00MM
• without filter 200-240 V 1/3 AC+10/-10% 47-63 Hz constant torque 2.2 kW overload 150% 60 s, 200% 3 s square-law torque 2.2 kW 202x 149x 172 (HxWxD) degree of protection IP20 ambient temperature -10+50 C

Dimensions: Frame Size B 149mm Wide x 202mm High x 172mm Deep. Enclosure Rating: IP20. Overload: 150% x 60seconds. Speed Control Range: 0Hz to 650Hz. Braking: To 100 Ohm minimum external resistor (not supplied) Features: 2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs Input Current: 20.2A Input Voltage: 1ph 200-240V 10%, 47-63Hz Mounting: Cubicle mount via 4 x M4 Bolts. Ambient: Rated -10 to 50C. Ventilation space above and below: 100mm. Ventilation space at sides: 0mm
