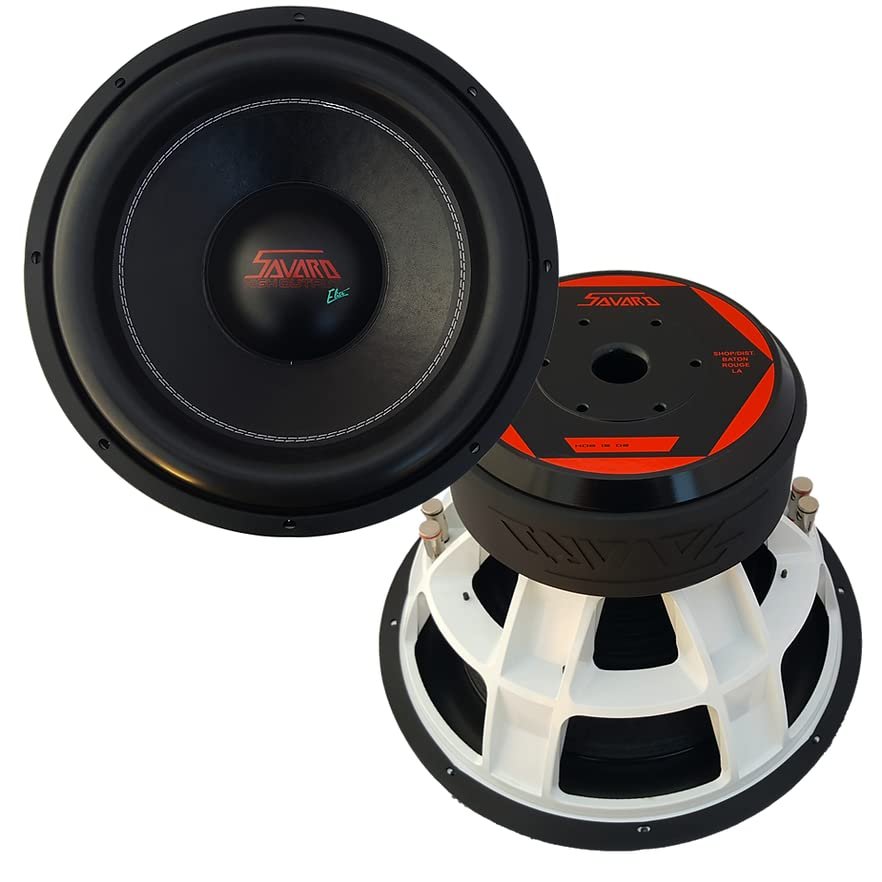

SAVARD Speakers High Output Elite Series 15" D2 Ohm Subwoofer

Description

SAVARD Speaker Systems High Output ELITE Series 15 D2 Ohm Subwoofer

SAVARD High Output ELITE Series General Features:
Long Strand Kevlar Reinforced Cone
Tall Roll Nomex Surround with Double Stiching
Layered Linear Conex Spider with Reinforced Layered Tinsel Leads
Over/Under Removable Gasket for Multiple Mounting Configurations
Cast Aluminum Basket w/360 Venting
Pole Vent for Increased Cooling
3in Quad Layer Aluminum USA Made Voice Coil
4in Thick Y35 Ferrite Motor Assembly
8 AWG Spring Terminals

High Output ELITE 15 D2 Ohm Specifications:
Nomial Diameter: 15inch
Power Handling: 2000w/RMS
Rec. Power Range: 2000-3500w/RMS
Dual 2-Ohm Impedance
Frequency Response: 18Hz - 120Hz
Sensitivity: 87.14 db 1w/1m

*PRE-Break-In* Thiele and Small Parameters:
Resonant Frequency (Fs): 42.29 Hz
DC Resistance (Re): 3.8 Ohm (series wiring)
Voice Coil Inductance (Le): 2.93 mH at 1kHz
Mechanical Q (Qms): 6.753
Electromagnetic Q (Qes): 0.890
Total Q (Qts): 0.786
Compliance Equivalent Volume (Vas): 1.35 cuft
Mechanical Compliance of Suspension (Cms): 0.04mm/N
BL: 19.29 Tm
Diaphram Mass w/ Airload (Mms): 327 grams
Displacement: 0.2 cuft
30mm Xmax in One Direction 60mm Overall
SD: 122 in sq

Mounting Information:
Overall Diameter: 15.5 in
Baffle Cutout Diameter: 14.125in
Mount Depth: 10in
