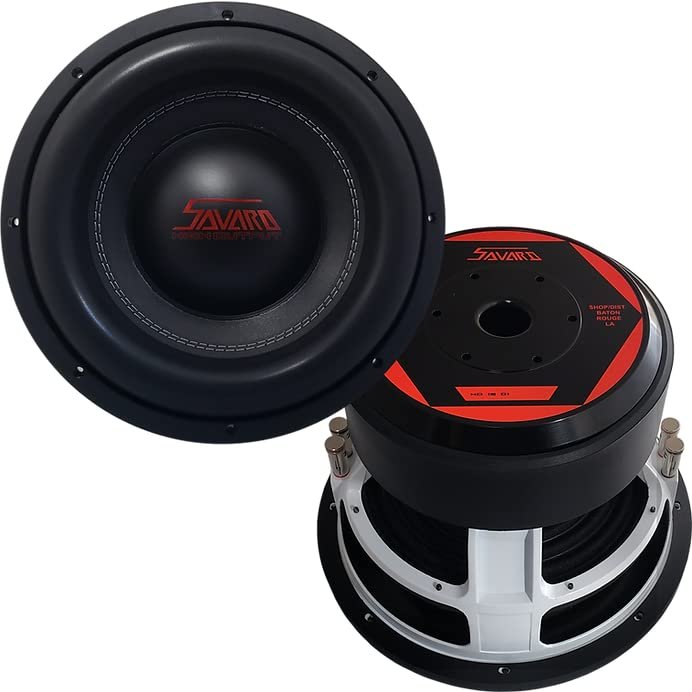

SAVARD Speakers High Output Series 10" D1 Ohm Subwoofer

Description

SAVARD Speaker Systems High Output Series 10 Subwoofer

SAVARD High Output Series General Features:
Long Strand Kevlar Reinforced Cone
Tall Roll Nomex Surround with Double Stiching
Layered Linear Conex Spider with Reinforced Layered Tinsel Leads
Over/Under Removable Gasket for Multiple Mounting Configurations
Cast Aluminum Basket w/360 Venting
Pole Vent for Increased Cooling
3in Quad Layer Copper Voice Coil
4in Thick Y35 Ferrite Motor Assembly
8 AWG Spring Terminals

High Output 10 Specifications:
Nomial Diameter: 10inch
Power Handling: 2000w/RMS
Rec. Power Range: 2000-3500w/RMS
Dual 1-Ohm Impedance
Frequency Response: 18Hz - 120Hz
Sensitivity: 78.93 db 1w/1m

*PRE-Break-In* Thiele and Small Parameters:
Resonant Frequency (Fs): 37.85 Hz
DC Resistance (Re): 2.32 Ohm (series wiring)
Voice Coil Inductance (Le): 3.38 mH at 1kHz
Mechanical Q (Qms): 6.206
Electromagnetic Q (Qes): 0.582
Total Q (Qts): 0.532
Compliance Equivalent Volume (Vas): 1.86 cuft
Mechanical Compliance of Suspension (Cms): 0.04mm/N
BL: 20.37 Tm
Diaphram Mass w/ Airload (Mms): 437 grams
Displacement: 0.16 cuft
30mm Xmax in One Direction 60mm Overall
SD: 46.94 in sq

Mounting Information:
Overall Diameter: 11 in
Baffle Cutout Diameter: 9.25in
Mount Depth: 7.75in
