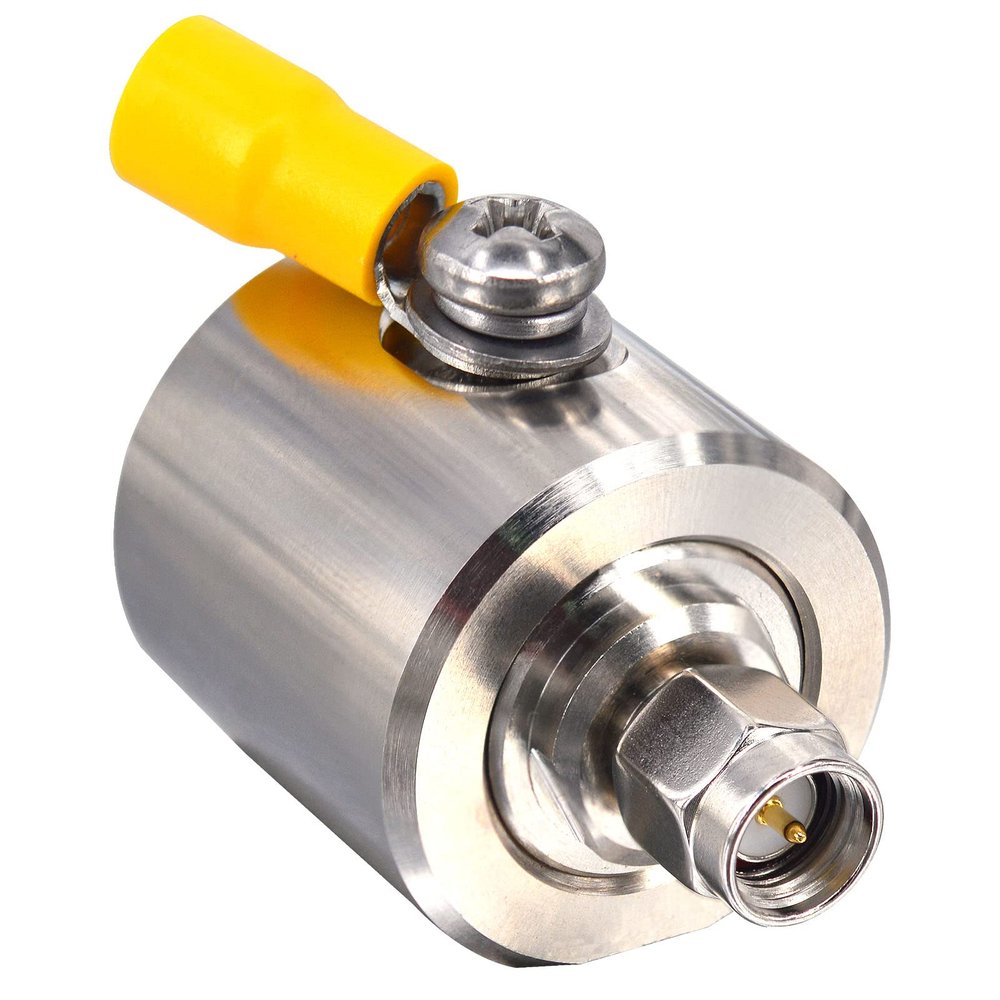

SMA Coaxial Lightning Protection Surge Protector SMA Male to Female 50 Ohm 0-3GHz Coaxial Lightning Surge Protector for Signal Booster GSM 3G 4G LTE Wireless LAN WiFi Antenna

Description

• SMA-male to SMA-female 50 Ohm compatible with 50 Ohm SMA connector cell phone signal boosters, 2.4GHz Wireless LAN WiFi antennas, GPS receivers, microwave communication system, broadcast televsion
• Protect your signal booster amplifier system from dangerous lightning strikes or electrical surges by installing the lightning arrestor between the amplifier and the outdoor antenna
• Standard 90 V DC breakdown voltage gas discharge tube (GDT) element which can be easily replaced to provide multistrike capacity
• Frequency Range up to 3 GHz covers 2G 3G 4G LTE cell phone signal boosters, 2.4GHz Wireless LAN WiFi, WiMAX, FM, AM, VHF and UHF broadcast network surge suppression
• Designed and manufactured the lightning surge protector body material with high quality nickel plated brass to provide superior performance and longevity

Electrical Specifications
Input Impedance: 50
Frequency Range: DC - 3 GHz (0-3 GHz)
Durability: 500 cycles
VSWR: <1.2:1
Insertion Loss: <0.15dB
DC Breakdown Voltage: 90 V
Gas Tube Impulse Breakdown Voltage: 700V
Maximum Withstand Current: 5 kA
Gas Tube Insulation Resistance: 1000M Ohm
