SMTAV PTZ Camera, 20X Optics Zoom,1080P60,3G-SDI+HDMi+USB3.0+Network Video Output for Churches, Schools, Video conferences and Live Streaming (20X, SDI HDMI IP)

Description

• 1/2.8-inch, high-quality HDCMOS sensor with 2.1 million effective pixels, which can achieve high-quality images with ultra-high resolution of 1920x1080. The output frame rate can reach up to 60/50 frames/second.
• 3G-SDI, HDMi, network, and USB3.0 interfaces output video simultaneously. Supports 1080P60/50/30/25, 720P60/50/ and other high-definition video formats.
• 20x optical zoom, controllable via RS-232C/RS485/network, supports VISCA/Pelco-D/Pelco-P/Onuif and other protocols, supports 255 presets
• Apply 2D and 3D noise reduction algorithms based on motion estimation, and use a new generation of low-noise sensors to effectively reduce noise.

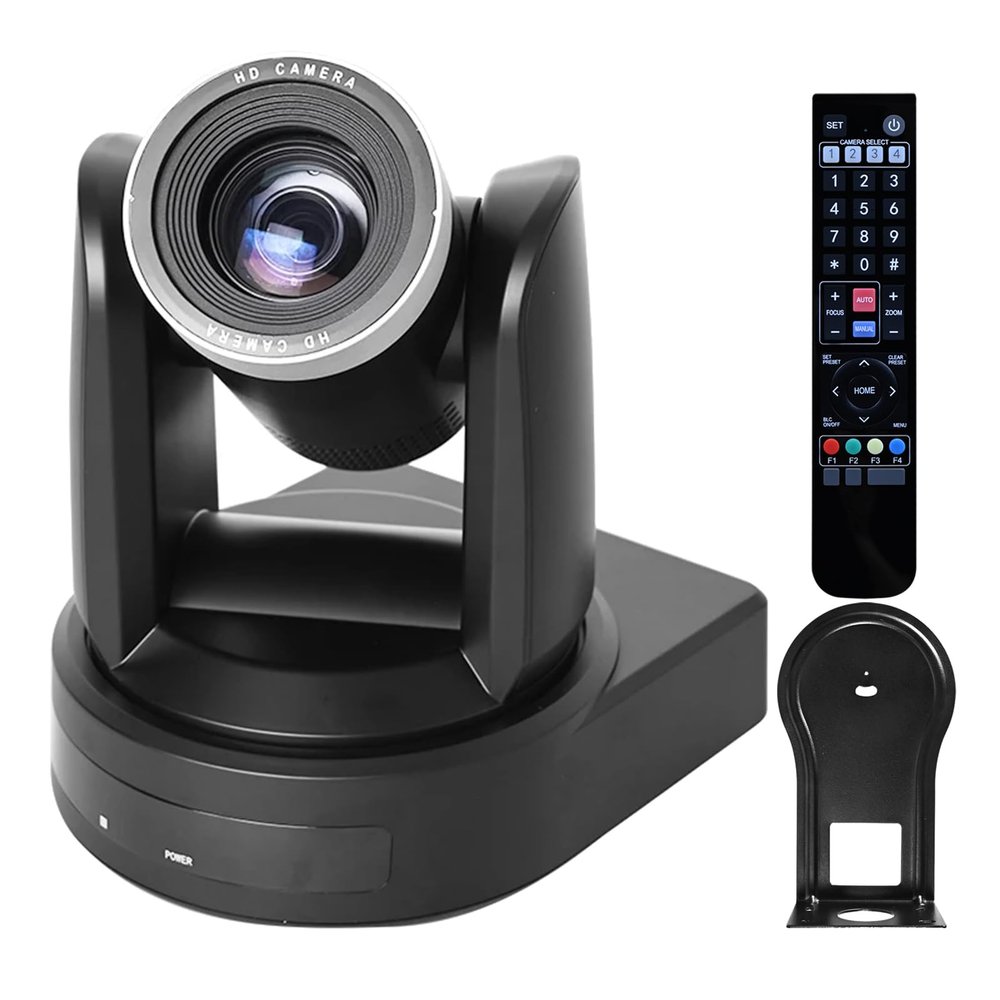

• Including camera*1, power adapter*1, power cord*1, VISCA cable*1, PoE adapter*1, user manual*1, Wall mounting bracket*1

Image sensor 1/2.8-inch high-quality HD CMOS sensor

Effective pixels 16:9 2.1 million effective pixels
Video format 1080p60/50/30/25 720p60/50/
Lens zoom: 20x optical zoom, f=4.7mm~94mm
Digital zoom 12x
Viewing angle 2.9 (narrow angle)--62 (wide angle)
Minimum illumination 0.1Lux
Signal-to-noise ratio >50dB
High-definition video interface HDMi, 3G-SDI USB3.0 IP
Encoding format H.264Baseline, Main Profile, High profile, H.265 Mainfile, MJPEG encoding
Image resolution "Main stream 1920*1080@30fps, 1280*720@30fps ;Sub-stream 720*576@30fps, 640*480@30fps"
Protocol support TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONUIF protocol Standard ONUIF protocol
PoE Support(including a PoE splitter)
Preset accuracy: 0.1 degrees
Number of preset: 255 user-settable preset positions
Input voltage DC12V (DC11.5-DC12.5V)
Power consumption 15W (maximum)
Storage temperature -10 to +60
Working temperature 0 to +45
Dimensions (width x height x depth) 155mmX186mmX172mm
Weight (net weight) 2.5KG (1.3KG)
