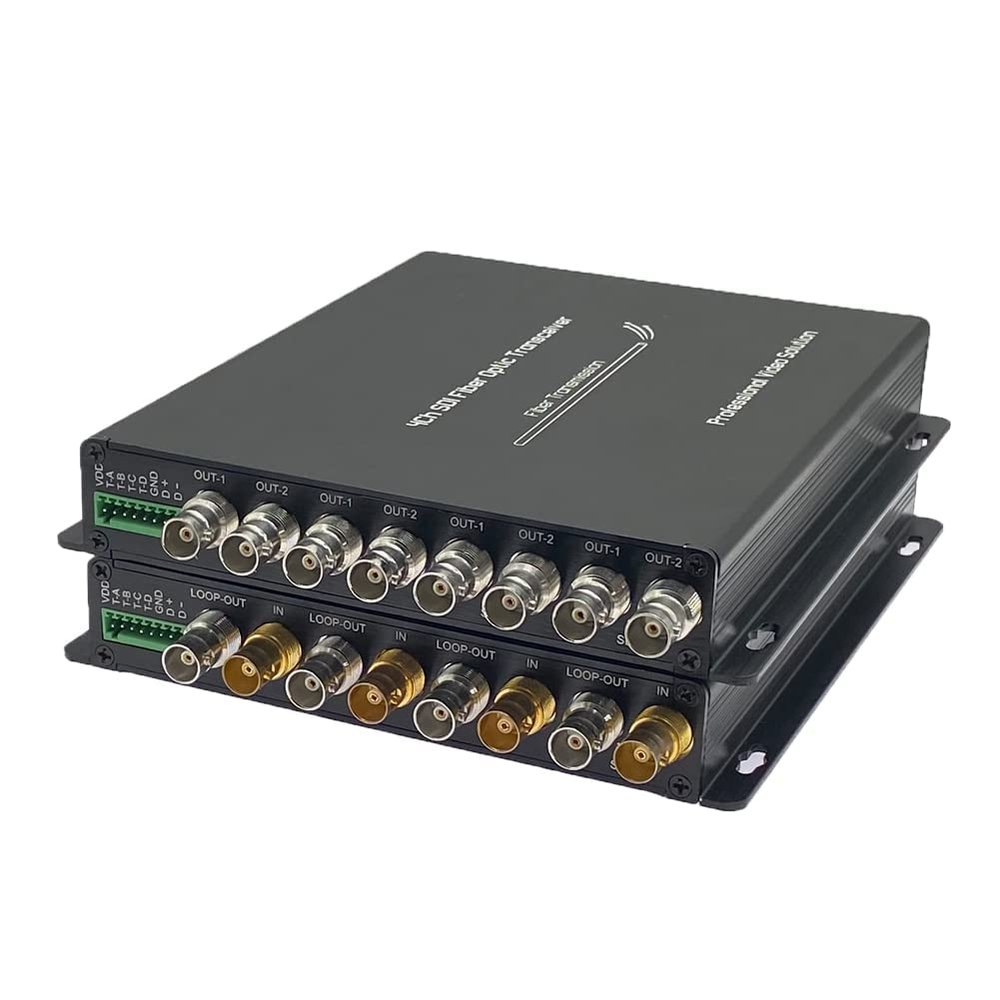

Steloproad 4CH 3G-SDI Fiber Converter 1080P Broadcast Level SDI Video Optical Transceiver Loop Output 4ch 3G SDI Fiber Extender with RS485 SDI Over Single-Mode FC 20km

Description

• Loop output: The 3G-SDI Fiber Optic transceiver support loop output, you can see the image easily in local side.
• 3G-SDI Video: The SDI Fiber converter support 3G-SDI with 8-channel audio embedded, resolution up to 1080P&60Hz, Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s.
• Long stable transmission: Full digital lossless transmission, no compression broadcast level transmission and no delay, audio and video synchronous transmission, Long transmission up to 20km.
• Support RS485&Tally: The 4ch 3G-SDI to fiber converter support both Backwards RS485(Max 57600) and Tally. You can control other device or use Tally Function in broadcast.
• Industrial Grade Quality Use industrial grade components and aluminum housing, it can work at wide range temperature -20C-70C(-4F to 158F). You can use it in outdoor harsh environment.

Overview

The 4ch 3G-SDI Fiber Extender series non-compressed SDI digital optical terminal is composed of SDI transmitters and receivers that transmit 3G SDI video signals, audio signals, and RS485 signals via optical fiber, while supporting loop output. Optical terminal machine transmission has the advantages of long transmission distance (0-20km), wide frequency band, strong interference resistance, high safety performance and light weight, which is suitable for long distance and special environmental transmission.
Features:

Full digital lossless transmission, no compression broadcast level transmission, audio and video synchronous transmission; Support 8 channels 3G-SDI input, support embedded audio synchronous transmission; Automatic reclocking 270Mbit/s-1.48G bit/s-3Gbit/s; Support HDTV 1080P, 1080I, 720P; 1920 * 1080 largest @60Hz; Long transmission up to 20km;


Specifications: Signal Category: SDI /3G-SDI Signal Video resolution: Max 1920*1080@60Hz Laser center wavelength: single mode (1310nm&1550nm) Fibre transmission code rate: 270Mb/s1.48Gb/s-3Gbit/s Fiber transmission distance: single mode (0-20Km Applicable voltage: 5-12V DC Maximum power consumption: 6W Working environment: -20 ~70(-4F to 158F) Dimension(L*W*H): 185*150*30mm(7.28*5.91*1.18in) Weight: 1200g(2.65lb)


Whats in the package:

LNK-SDI-4V transmitter *1 LNK-SDI-4V receiver *1 Power Adapter *2 User Manual
