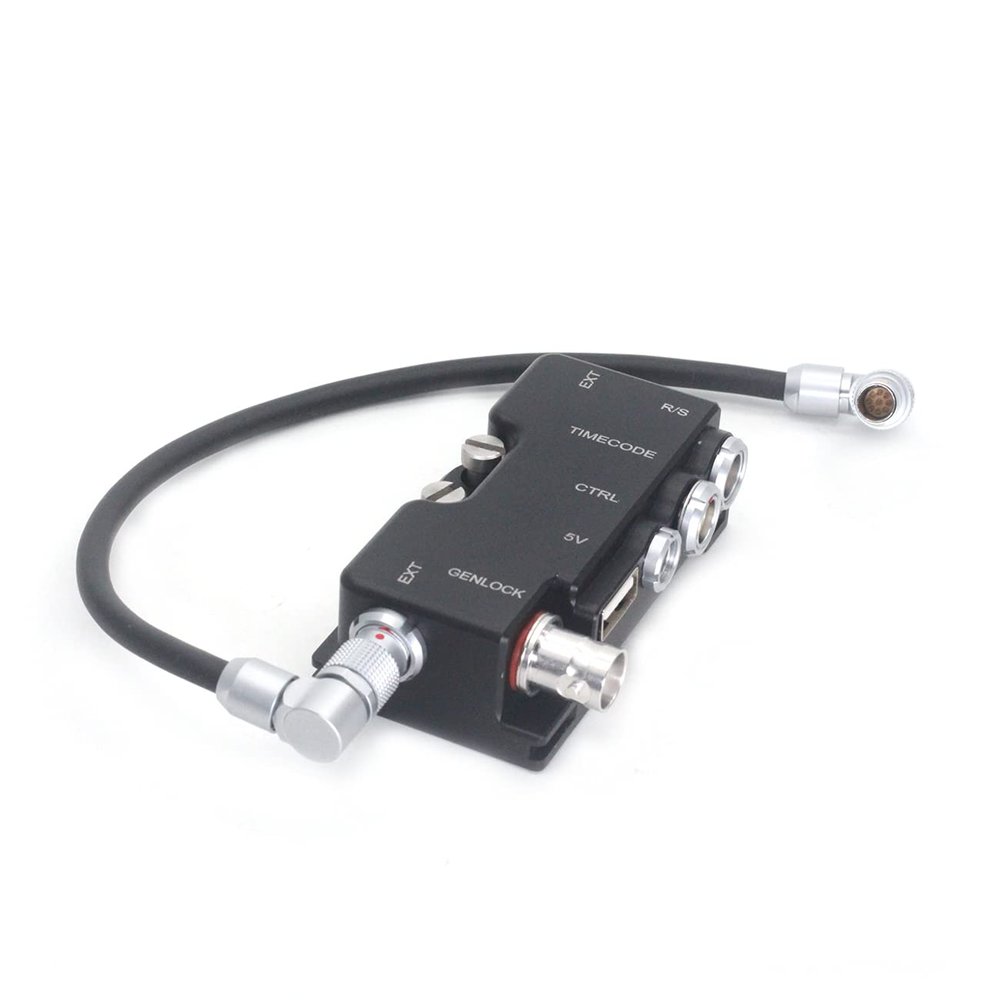

SZJELEN B-Box Splitter RED Komodo EXT 9pin Splitter with RS 3pin/Time Code 0B 5pin/ CTRL 00B 4pin/ 5V USB/Genlock BNC (B-Box & Cable2)

Description

• B-Box (RED KOMODO) is connected to the BP-9 battery slot on the right side of the camera and provides a breakout cable for the EXT connector of the camera.Battery Slide Pro V-Mount or Gold Mount for RED KMODO can be used at the same time.
• Customized right-angle 360-degree rotating elbow connectors allow neat cable operation. When using the B-Box, the BP-9 battery can also be installed in the slot on the left side of the camera, or fixed on the device with a 1/4 screw.
• RED KOMODO EXT9-pin splitter with R/S (3pin Fischer) Time code (0B 5pin) CTRL (00B 4pin) 5V (USB) Genlock (BNC)
• Each cable has been tested in practice, serving hundreds of photographic equipment companies, quality assurance.We are committed to all the products we operate are qualified, high-quality.

B-Box (RED KOMODO) is connected to the BP-9 battery slot on the right side of the camera and provides a breakout cable for the EXT connector of the camera. Battery Slide Pro V-Mount or Gold Mount for RED KMODO can be used at the same time. Customized right-angle 360-degree rotating elbow connectors allow neat cable operation. When using the B-Box, the BP-9 battery can also be installed in the slot on the left side of the camera, or fixed on the device with a 1/4 screw.

Available ports include:

-R/S (3pin Fischer)

Simple runop of the handle trigger box, simple 3-pin Fischer trigger cable, etc.
No power available
Devices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758
pin1:GND, pin2:N/C, pin3:GPI

-Time code (0B 5pin)

Standard wiring of time code input/output
pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT

-CTRL (00B 4pin)

RED CTRL standard wiring
pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX

-5V (USB)

5V available, maximum 500mA
May need to enable power in the camera menu

-Genlock (BNC)

Standard wiring for genlock
Center: signal, shell: GND

EXT input/output, one EXT 0B9 pin output is reserved to ensure that the original cable can continue to be used.
