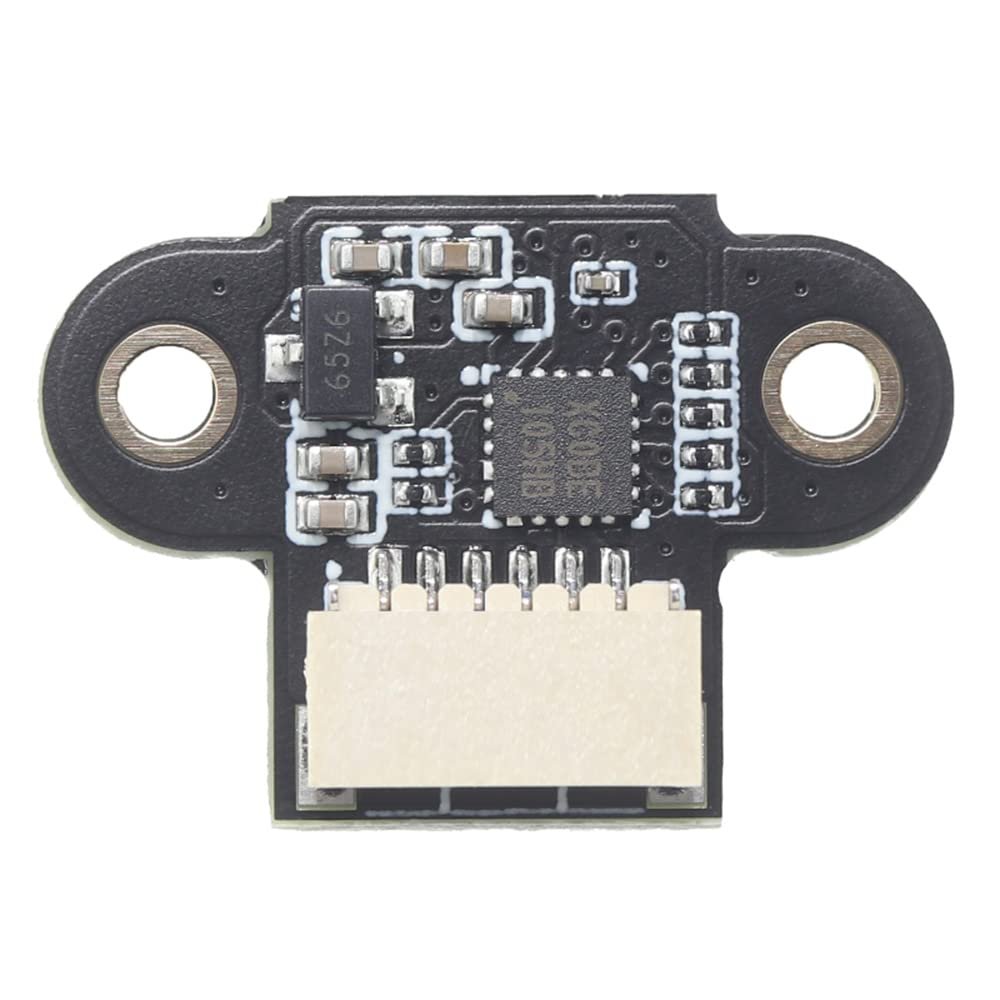

Taidacent 2.5m TOF250 UART I2C TOF Range Finder Sensor Time of Flight Distance Ranging Sensor Module Proximity Sensor

Description

• Signal voltage 5V Usage detect obstacles Output Uart I2C Detection distance 0.05m-2.5m/1.5m
• Accuracy 5% Resolution 1mm Frame rate default 10hz(0-18hz adjust) Ambient light resistance 50Klux
• Working temperature -20C to 70C Center wavelength 940nm FOV 25 degree
• Power supply 3.3V-5V Peak current less 100mA
• Robotic obstacle avoidance and cliff detection Obstacle detection UAV fixed height LOT IoT field Other consumer products

TOF250 is a single-point ranging sensor based on the TOF principle, using a 940nm infrared light source, providing accurate and repeatable long-distance measurement for high-speed autofocus (AF). The innovative TOF time-of-flight technology makes this sensor The performance is independent of the reflectivity of the target object. TOF (time-of-flight) measurement technology uses low-cost CMOS process SPAD (single photon avalanche diode) to achieve it makes the measurement results accurate, with higher immunity to ambient light sex.
