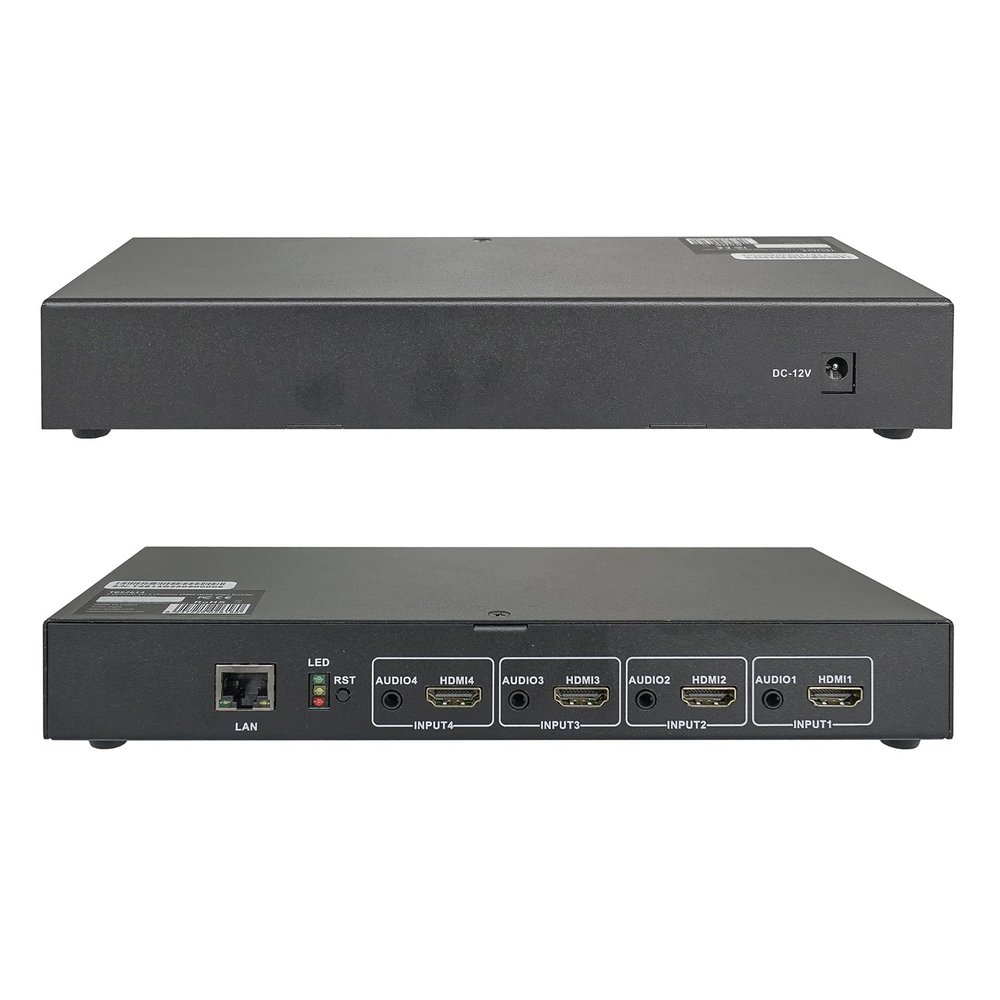

TBS2614 2 Channels 4K or 4 Channels 1080P HDMI Video Encoder

Description

• 2 CHANNELS 4K OR 4 CHANNELS 1080P 60hz: Professional high-definition video encoder, which is also our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.
• MULTIPROTOCOL OUTPUT: Compliant with HTTP/HLS/RTMP(RTMPS)/RTP&UDP unicast and multicast protocol
• DOULD CODE STREAM: Support Main TS stream and the sub-TS stream use in different network protocols for transmission (multi-rate multi-protocol support)
• WIDELY PERFORMANCE: Can be applied to Digital TV Broadcasting System, Digital Signage Project, Remote Video Conference, Head-end system of Digital TV branch network

Key Features:
Support multiple devices display on a computer at the same time, Supports dual ethernet ports 1000M/100M
Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
Support streaming add watermark (OSD), XY axis, the font can be set
Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
Support build-in or external methods, support left and right sound channel, Support audio gain, be able to turn volume individually
Support coding without video signal
Complete the setting effect immediately, dont need to restart
Support one-key recovery of the default configuration

Specifications:
Input: 4 xHDMI input, 4 Channel line in audio, HDCP supported
Output:1 x RJ45 100M (management port), 1 x RJ45 1Gbps (data port)
Video
Input resolution: 3840x2160p_30hz, 1920x1080p_60hz, 1920x1080p_50hz, 1920x1080i_60hz, 1920x1080i_50hz, 720p, 720x576i, 720x576p, 640x480i, and ect.
Codec: H.265 / H.264
Profile:H.265 Main profile, H.264 Baseline profile, H.264 Main profile, H.264 High profile
Encoded size: 3840x2160,1920x1080,1680x1056,1280x720,1024x576,960x540, 850x480, 720x576, 720x540, 720x480, 640x480, 640x320, and ect.
aspect ratio: 16:9, 4:3
Color setting: Brightness, Contrast, Saturation
Bitrate control: CBR, VBR
Bite rate: 16Kbps ~ 12Mbps
Video frame rate: 5 - 60 fps (1080p and low: 5 ~ 60fps; 4k: maximum is 30fps)
OSD: Text, Image
Audio
Input selection: HDMI embedded: 4 channel HDMI embedded audio Line in: 4 channel 3.5mm Jack independent audio support audio gain
Audio coding: AAC(LC/HE), MP3, G.711
Audio bit rate: 24Kb/s ~ 320Kb/s
IP Output: 1 RJ 100M / 1000M adaptive Ethernet port
System
Protocols: HTTP, HLS, RTSP, RTMP/RTMPS, RTP/UDP unicast & multicast, SRT (Caller mode, Listener mode)
