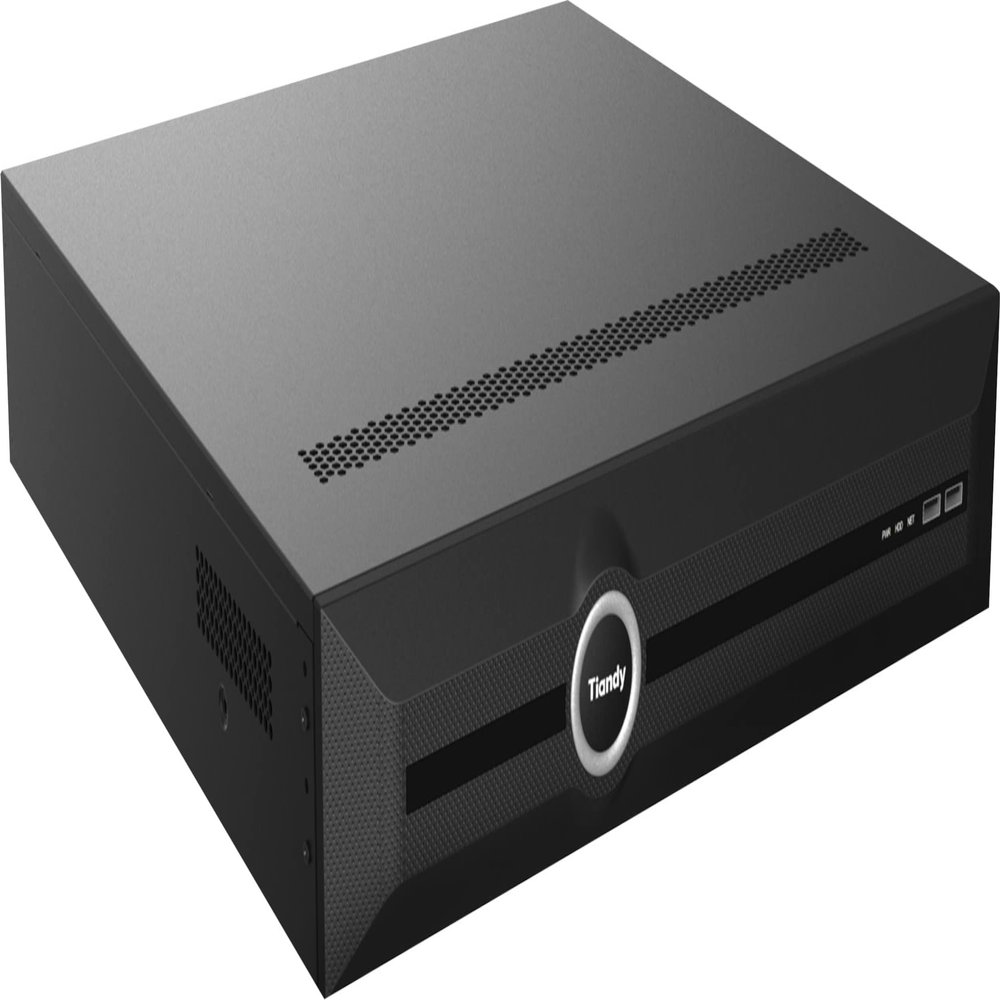

Tiandy TC-R3440 Spec: I/B/N 40-Channel NVR, HDDs Not Included, 4 SATA Interfaces Connectable for Recording and Backup, Up to 40 IP Cameras, Live View Support

Description

• HDDs Not Included
• Connectable to third-party network cameras
• 4 SATA interfaces connectable for recording and backup, up to 10TB for each HDD
• HDMI Video output at up to 4K (3840 x 2160)
• Supports live view, storage, and playback of the connected camera at up to 12MP resolution
• Up to 40 IP cameras can be connected

Tiandy TC-R3440 Spec: I/B/N 40-Channel NVR, HDDs Not Included, 4 SATA Interfaces Connectable for Recording and Backup, Up to 40 IP Cameras, Live View Support

Key features: - HDDs Not Included
- Connectable to the third-party network cameras
- Up to 40 IP cameras can be connected
- Supports live view, storage, and playback of the connected camera at up to 12MP resolution
- HDMI Video output at up to 4K (3840 x 2160)
- 4 SATA interfaces connectable for recording and backup, up to 10TB for each HDD
- HDMI and VGA independent outputs
- Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported

Specifications:

Input:
- Max resolution: 12MP
- Two-way audio Input: 1-ch, 3.5mm
- Bandwidth: Income 400Mbps, outcome 200Mbps

Output:
- HDMI/VGA output: DMI: 2-ch, 3840x2160, 2560x1600, 2560x1440, 1920x1080, 1280x720, 800x600, 1024x768, 1366x 768, 1440x900, 1280x800; VGA:2-ch, 1920x1080, 1280x720, 800x600, 1024x768, 1366x768, 1440x900, 1280x800
- Screen split: 1/3/4/6/8/9/10/13/16/20/25/36/40/64
- Audio output: 1x3.5mm, 1xBNC

Decoding:
- Decoding format: S+265/H.265/H.264
- Recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Preview capability: 2x12MP, 4x4K, 5x5MP, 8x4MP, 16x1080P, 32x720P, 40x4CIF

Hard disk:
- SATA: 8 SATA interfaces for 8 HDDs
- Capacity: Up to 10TB for each HDD
- eSATA interface: 1 SATA interface

External Interface:
- Network interface: 2xRJ45 self-adaptive 10/100/1000 Mbps network interfaces
- USB interface: 2xUSB 2.0, 1xUSB 3.0
- Serial interface: 2xRS485, 1xRS232

General:
- Power supply: AC100~240V, 50/60HZ
- Chassis: 2U
- Dimensions: 3.7" x 17.32" x 18.11"
- Weight (without HDD): 15.87 lbs
