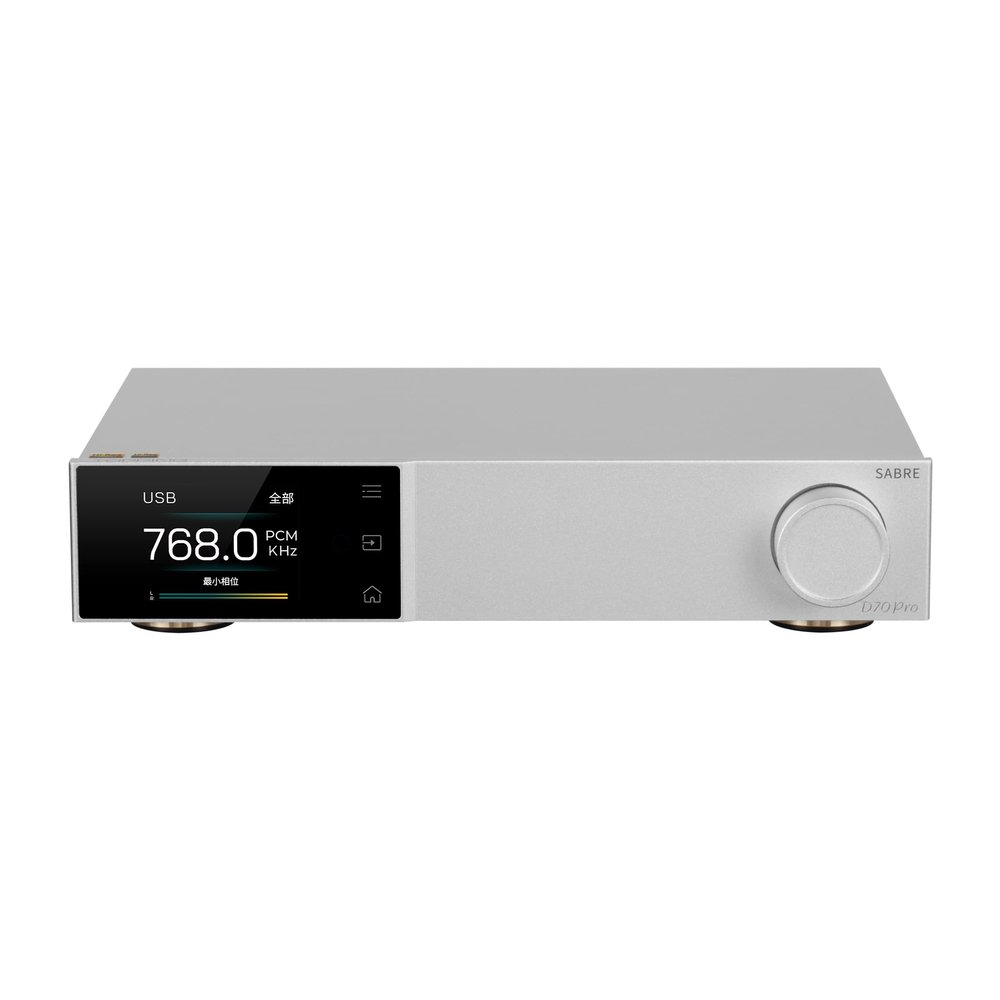

Topping D70 PRO Sabre DAC ES9039SPRO XU316 Bluetooth 5.1 LDAC Aptx-Adaptive HiFi Decoder (Silver)

Description

• Brand new I/V conversion New IV conversion circuitry is designed to give you higher quality audio playback. Our circuitry uses an exclusive design that provides lower distortion and noise while occupying a smaller volume. We strive to demonstrate the full performance of our DAC chips to bring you a more superior audio experience.
• Bluetooth 5.1 transmission: D70 Pro SABRE supports LDAC / aptX-Adaptive I aptX HD I aptX 1 AAC I SBC audio encoding, allowing high quality audio to be transmitted wirelessly for a better sound experience.
• Plug and play: D70 Pro SABRE has wide compatibility and can be used on multiple operating systems, such as Windows 10, Windows 11, MAC, Linux, and i0s/Android. Simply connect to the audio source and you can use it immediately. It requires driver installation and setup for ASIO applications on Windows systems only. The USB hardware is based on XMOS XU316 and Thesycon custom driver (applicable to Windows, other systems are free of driver), which is stable and reliable.
• Freely switch output modes: The D70 Pro SABRE features the versatile RCA single -ended output and the professional XL .R balanced output. Y ou can turn on only the desired output channel, or both outputs at the same time. Whether you are connecting two different systems or in a situation where you need to output two audio signals at the same time, the D70 Pro SABRE provides you with a more convenient and efficient way to output.
• Integrated preamp function: In addition to the fixed output level DAC mode, the D70 Pro SABRE also has a "preamp" mode. In this mode, the D70 Pro SABRE can adjust the volume and output directly to the power amplifier or active speakers.

D70 Pro SABRE DAC parameters (LineOut/USB In@96kHz)

RCA
THD+N (A-wt)<0.00008% @ 1 kHz
THD @90kBw (No-wt) <0.0004% @1kHz
SNR (A-wt):128dB @1kHz
Dynamic Range (A-wt):128dB @1kHz
Frequency Response 20Hz-20kHz ( 0.05dB) 20Hz-40kHz ( 0.2dB)
Output Level2.1Vrms @0dBF S (4V Mode) 2.5Vrms @0dBF S (5V Mode)
Noise (A-wt)<1.0uVrms
Channel Crosstalk-128dB @1kHz
Channel Balance 0.3dB
Output Impedance50

XLR
THD+N (A-wt)<0.00006% @ 1
THD @90kBw (No-wt) <0.0002% @1kHz
SNR (A-wt):133dB @1kHz
Dynamic Range (A-wt):133dB @1kHz
Frequency Response 20Hz-20kHz ( 0.05dB) 20Hz-40kHz ( 0.2dB)
Output Level4.2Vrms @0dBF S (4V Mode) 5.0Vrms @0dBF S (5V Mode)
Noise (A-wt)<1.0uVrms
Channel Crosstalk-140dB @1kHz
Channel Balance 0.3dB
Output Impedance100

* Note: The above data is the result obtained from TOPPING lab test under AC220V 50Hz and D70 Pro SABRE set to 5V output mode.
