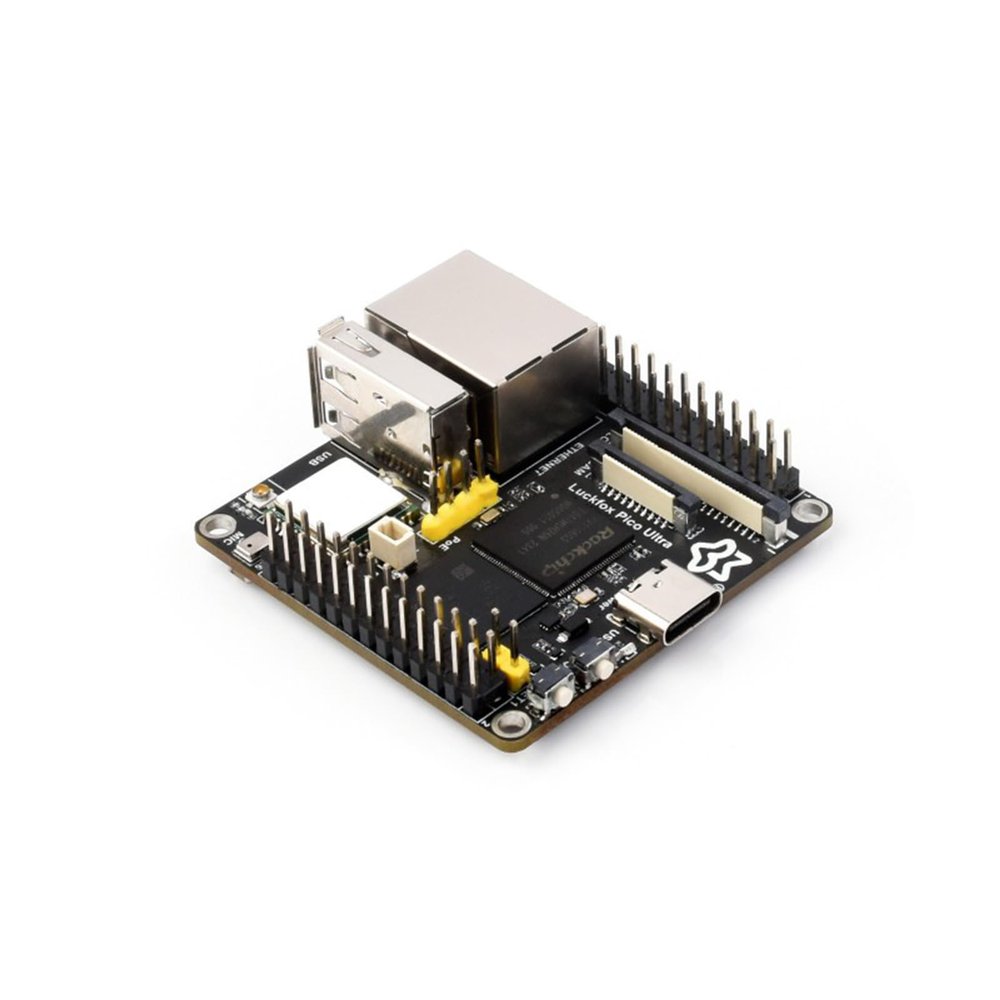

TUOPUONE Pico Ultra RV1106 Linux Micro Development Board Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors with WFi Not Included PoE Module

Description

• Luck-Fox Pico Ultra is a cost-effective Linux micro developmentboard
• Bbased on the Rockchip RV1106 chip to provide a simple andefficient development platform for developers
• upports a variety ofinterfaces including MIPI CSl, RGB LCD GPIO, UART, SPI, 12C, USB, etc.which is ideal for embedded applications.
• Onboard 2.4GHz WFi 6 And BT5.2/BLE BT Module, Providing Stable Connection With Efficient Transmission
• Provides Both Network Connection And Power Supply For Luck-fox Pico Ultra Board In Only One Ethernet Cable

Luck-fox Pico Ultra
Luck-Fox Pico Ultra is a cost-effective Linux micro developmentboard, based on the Rockchip RV1106 chip to provide a simple andefficient development platform for developers, Supports a variety ofinterfaces including MIPI CSl, RGB LCD GPIO, UART, SPI, 12C, USB, etc.which is ideal for embedded applications.

Version Options
Luck-fox Pico Ultra (without WFi, with 8GB EMMC)
Luck-fox Pico Ultra PoE Kit (without WFi. with 8GB EMMC.with Luck-fox PoE module)
Luck-fox Pico Ultra W (with onboard WFi and 8GB EMMC)
Luck-fox Pico Ultra W PoE Kit (with onboard WFi and 8GB EMMC.with Luck-fox PoE module)

Highly Integrated And Powerful Performance Integrates CPU, NPU, ISP And Other Processors
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
