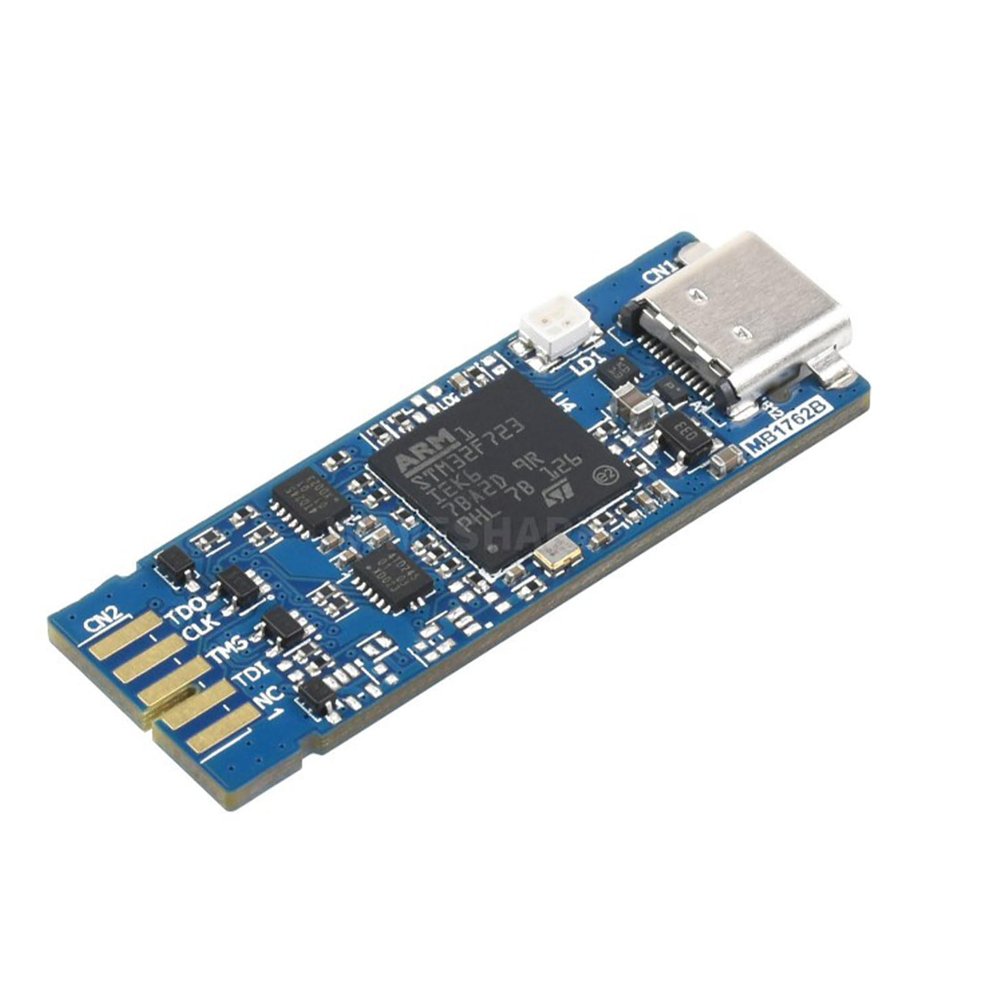

TUOPUONE STLINK-V3MINIE in-Circuit Debugger and Programmer for STM32 Based On Arm Cortex-M STM32 32-Bit Microcontroller Virtual COM Port (VCP) up to 15 Mbps

Description

• STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers.
• The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.
• STLINK-V3MINIE also provides a Virtual COM port interface for the host PC to communicate with the target microcontroller through one UART.
• STLINK-V3MINIE is a portable version easytouse debugger and programmer including STDC14 interface with its flat cable and onboard pads for boardtoboard (BTB) card edge connector.
• Supports all STM32 series microcontrollers with JTAG/SWD interface.

Introduction
The STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers, portable and easy-to-use.
Onboard JTAG/SWD interfaces for communicating with STM32 microcontroller, also provides a virtual COM port for the host PC to communicate with the target microcontroller through one UART.

Features At A Glance
Tiny 15 mm 42 mm stand-alone debugging and programming probe for STM32 microcontrollers
Self-powered through a USB Type-C connector
USB 2.0 high-speed interface
Probe firmware is updatable through USB
Support drag-and-drop Flash programming of binary files
Two color LEDs: communication, power
JTAG communication support up to 21 MHz
SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
Virtual COM port (VCP) up to 15 Mbps
1.65 to 3.60 V application voltage support

Package Content
STLINK-V3MINIE x1
