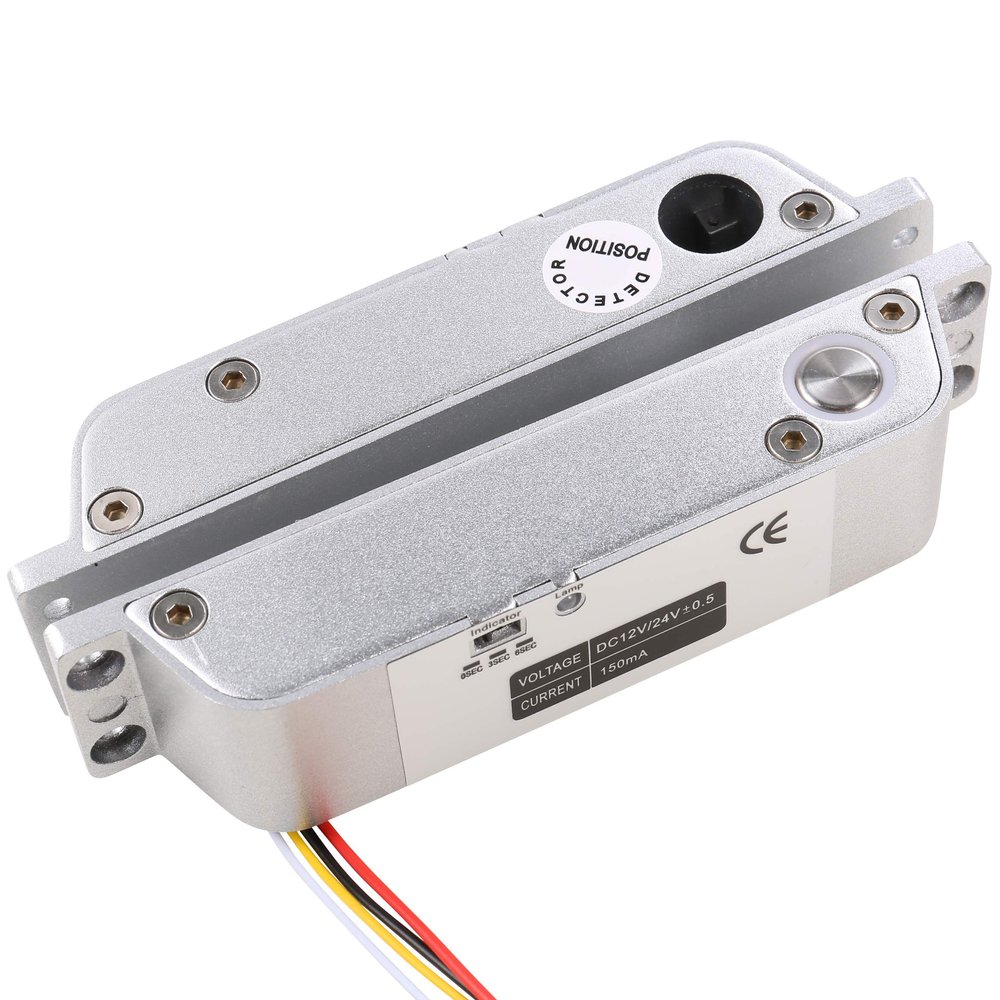

UHPPOTE Fail-Safe Electric Drop Bolt Lock for Narrow Door Access Control System

Description

• Working Voltage: 12VDC
• Working Current: Start state 1.2A; Persistent state 120mA
• Fail-Safe: Unlocked when power is removed
• Wires: Red to "NC", black to "GND". Yellow line and white line are useless, don't need to be connected
• Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

Features:
NC mode - (locked while supplied with power), fail safe mode
Installation: Unfold install (surface mounted)
Material: Aluminum alloy material
Time delay: 0/3/6SEC
Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc
Surface scrub treatment, durable and wear-resistant
Lock body use hexagon screw, fixed panel, anti-theft and more security
Coil type: Continuous working
Locking mode: Magnetic induction
Specifications:
Dimensions: 150x34x28mm
Lock Core: The diameter is 12.5MM, extending the length of 15MM
Working Voltage: 12VDC
Working current: Start-up 1.2A Persistent state 120mA
Operating Mode: NC (locked while supplied with power), fail safe mode
Wires: red to "NC", black to "GND".
Warm Note: yellow line and white line are useless, don't need to be connected.
Package Including:
1 x Electri bolt lock
1 x Bag of installation kit
1 x Manual (English)
