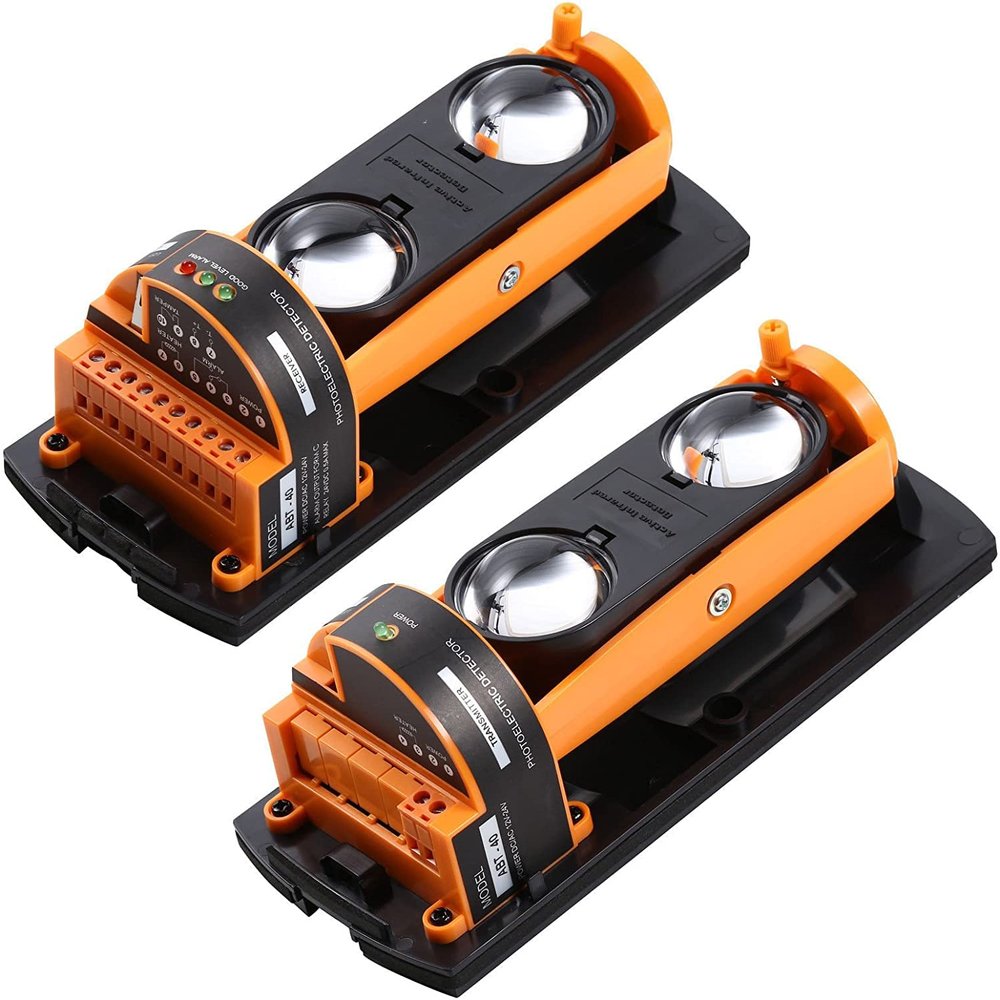

UHPPOTE Wired Photoelectric Dual 2 Beams Detector Active Infrared Outdoor Distance 40m/131ft

Description

• Digital frequency conversion
• Easy alignment with visual LED indicator.
• Adopt microprocessor control(CPU), real digital circuit.
• Full time NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.
• Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light.

Features:
Full time NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.
Digital frequency conversion.
Easy alignment with visual LED indicator.
PC engineering plastic material.
Professional waterproof design with the rubber seal around.
Resistant to rain, fog, snow and frost.
Adopt microprocessor control(CPU), real digital circuit.
Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light.
AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.
Horizontal / vertical optical angle can be easy to adjust.
Technical parameters:
Model: ABT-40
Detecting distance (outdoor): 40m/131ft
Detecting distance (indoor): 120m/393ft
Detection method: Simultaneous interruption of 2 infrared beams
Response speeed: 12-250msec
Alarm output: Switch signal output(NO/NC)
Power and Voltage: DC12~24V; AC11-18V
Current consumption: 100mA Max
Operating temperature: -25~55
Humidity: 95% Max
Tamper: NC. 1B contact output DC26V/0.5A Max.
IP rating: IP 65
Exterior dimension: 80x77x195mm / 3-5/32"x3-1/32"x7-43x64"
Weight: 1.0kg
Package:
1 x Receiver & Transmitter
Note:
It can't work alone and needs to work with the alarm control panel. And you need to purchase the alarm control panel separately.
