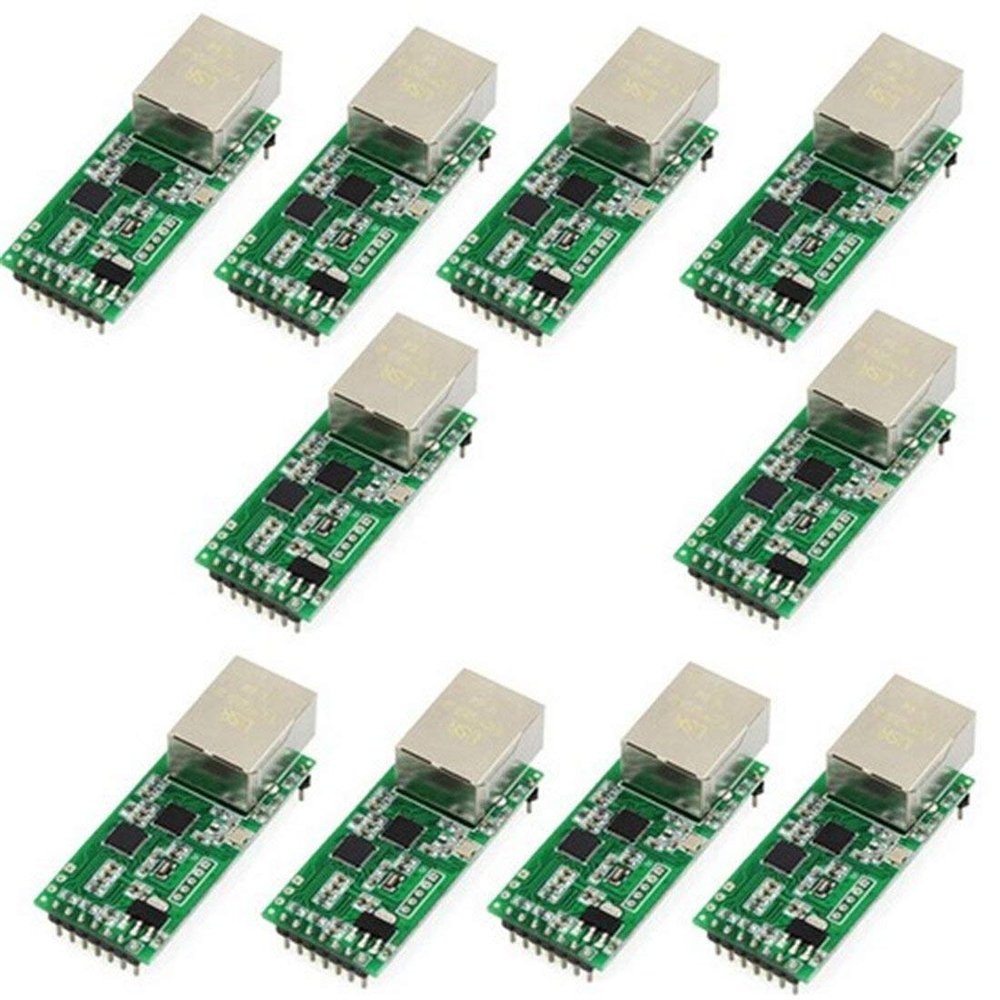

Upgraded Tiny USR-TCP232-T2 Serial Module Tiny Serial Ethernet Converter Module UART TTL to Ethernet TCPIP Module Support DHCP and DNS (10 PCS)

Description

Introduction Of Ethernet Module
USR-TCP232-T2 Is a Tiny Size Serial Ethernet Module Which Can Realize Data Bidirectional Transparent Transmission Between TTL And RJ45 Port. It Can Also Be Applied In RS232/ RS485 By Level Shift Circuit.USR-TCP232-T2 Is Based On Cortex-M0 Core. It Has Characters Of Low Power, Fast Speed And High Efficiency.

Feature Of Ethernet Module
Support DHCP, Automatically Obtain An IP Address And Query IP Address Through Serial Setting Protocol
Support DNS Function
Set Parameters Through Webpage And Serial AT Command
Upgrade Firmware Via Network
Auto-MDI/MDIX, RJ45 Port With 10/100Mbps
Serial Port Baud Rate From 600 Bps To 460.8 Kbps, Check Bit Of None,Odd,Even,Mark And Space
Work Mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support Virtual Serial Port And Provide Corresponding Software USR-VCOM
Heartbeat Package Mechanism To Ensure Connection Is Reliable, Put An End To Dead Link
User-Defined Registration Package Mechanism, Check Connection Status And Use As Custom Packet Header
Under TCP Server Mode, Client Number Ranges From 1 To 16; Default Number Is 4
The Global Unique MAC Address Bought From IEEE, User Can Define MAC Address Restore Factory Default
Across The Gateway, Switches, Routers
Can Work In LAN, Also Can Work In The Internet (External Network)
Provide PC TCP/IP Socket Programming Example Such As VB,C++,Delphi,Android And IOS Support Customization

Application Field Of Ethernet Module
Industrial Data Transmission, Industrial Automation
Security And Protection Monitoring, Public Security
Smart Home, Power Control, Environmental Monitoring, Intelligent Agriculture
Door Check On Work Attendance System, POS System, Rice Selling System
Building Automation System, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring
