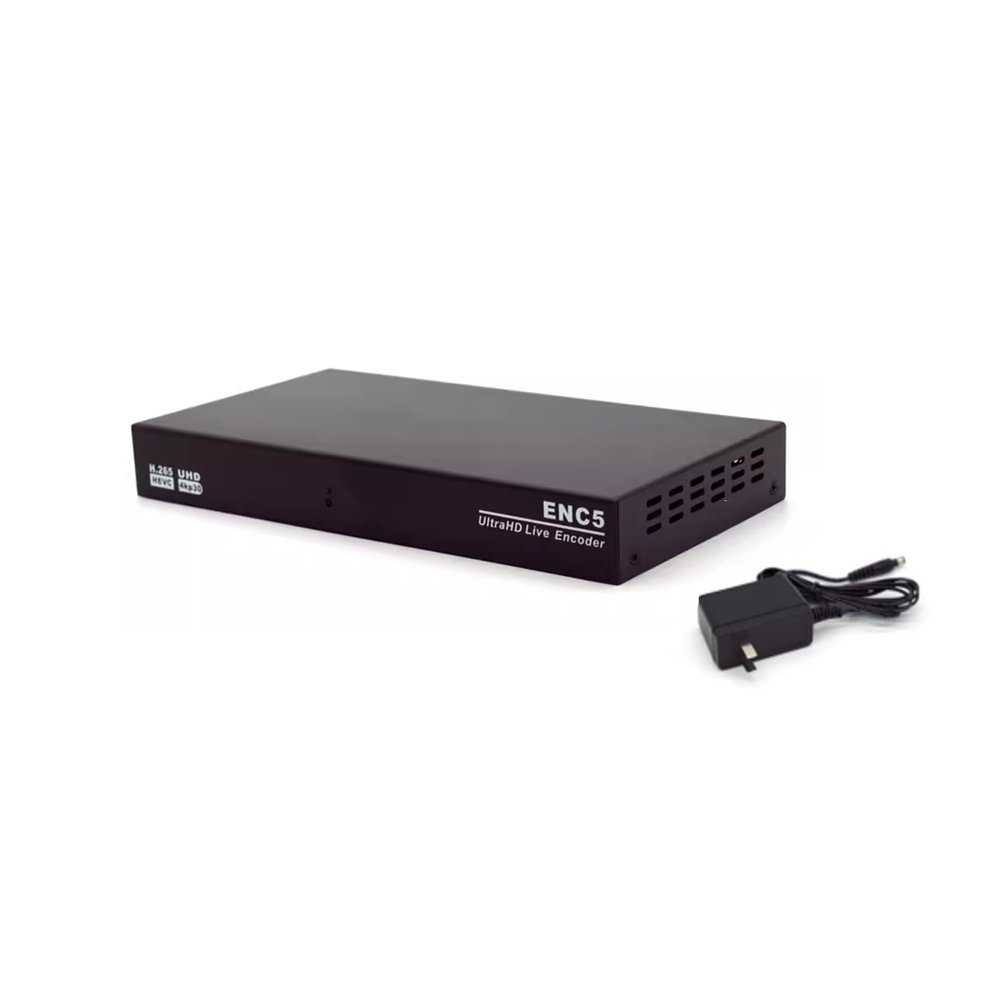

WayPonDEV Link Pi ENC5 5-Port NDI 4K HDMI Encoder,1080P Video Decoder, Support NDI/SRT/HX/RTMP/RTSP/ONVIF for YouTube Facebook Live Broadcast, with ARM Cortex A9 CPU

Description

• [5-Channel HDMI1.4 Encoder ] ENC5 HD Encoder with 5 channels HDMI 1.4 port, support up to 4K@30fps input and 4K60P HDMI output multi protocol live broadcasting, including RTSP/RTMP/HTTP/HLS/UDP/ONVIF/Unitcast/Multicasting.It supports 5-channel 1080P/60 input and output, and can link up to 5 devices for operation at the same time.
• [Support Mainstream Video Platforms] ENC5 4K HD encoder compatible with most Internet video platforms and streaming sites such as YouTube Live, Facebook Live, Twitch and Twitter online Live Broadcast.
• [Full HD Resolution] ENC5 HD encoder supported resolutions including 4K30, 1080P, 720P, 16001200, 1440900, 1366768, 12801024, 1024768, 800600, 640480. ENC5-V2 4K is not just a encoder, it support decoding, director, mixing and other functions at the same time. It can also achieve one-click remote assistance, live game, online class teaching.
• [Various Peripheral Devices] ENC5 hdmi encoder support a variety of peripheral devices, including: TV set-top boxes, laptops, cameras, network monitoring, USB cameras, mobile phones, game consoles, etc. ENC5-V2 encoder with wide range of application scenarios.
• [Support WiFi/4G Module] ENC5 HDMI Encoder can achieve wireless transmission, mobile live and other programmes, while supporting multi-platform live, multi-picture guide switching. ENC5-V2 encoder also support LAN, public network call and Tally light control. It can auto-linking with vMix and other playback software
• [SDK Document] SDK download please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave all technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)" .

-Specification-
Main Chip: Hi3531DV100
CPU: ARM Cortex A9 Dual Core@1.4GHz
Memory: 2GB DDR3
Flash: 256MB Nand Flash
Input interface: 5-way HDMI 1.4 Maximum support 4K30
Resolution: 4K, 1080P, 720P, 1600x1200, 1440x900, 1366x768, 1280x1024, 1024x768, 800x600, 640x480
Encoding format: H.264 Baseline profile
H.264 Main profile
H.264 High profile
H.265 Main profile
MJPEG/JPEG Baseline
Encoding resolution: 4K, 1080P, 720P, 360P
Frame rate: 1~60 adjustable
Multi-Reference Frame: Support SmartP, DualP
Maximum bit rate: 40Mbps
Bit rate control: CBR, VBR, AVBR
Wired interface: 10/100M/1000M RJ45 network port
Wireless Interface: Support USB wifi module, support USB 4G module
Transmission Protocol: RTSP, RTMP, RTMPS, HTTP, HLS, UDP, Unicast, Multicast
ONVIF: Support
-Package Content-
ENC5 HDMI Encoder x1
12V 2A Power Supply x1
-Technical Support- Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122. Please leave the message in our forum by "forum.youyeetoo.com/".
