WayPonDEV youyeetoo R1 Rockchip RK3588S 8-Core 64bit Single Board Computer,Support 8K Dispaly, PCIe 2.0 SSD,NFC,WIFI5/6, Android/Linux AI Devkit for AIOT (8GB RAM+64GB eMMC)

Description

• [Optional RAM Configuration ] WayPonDEV youyeetoo R1 is a compact arm-based SBC,which support LPDDR4 RAM from 4GB,8GB and 16GB up to 32GB, and optional eMMC flash with 32GB/64/GB/128GB/256GB capacity(please check the variant option from different Asin's title).
• [AIoT Chip-Rockchip RK3588S] Youyeetoo R1 open-source singe board computer is powered by the Rockchip RK3588S octa-core 64-bit processor from Rockchip, built on an 8nm process, with frequency up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU and features a built-in NPU with 6 TOPS of AI computing power.
• [Compact Size but Feature-rich Interfaces] Youyeetoo R1 RK3588S SBC has only 3.93 inch x 2.73 inches (100*69.3mm)in size, but various interfaces including M.2 PCIe2.0, dual MIPI CSI cameras, Multi-screen, USB2.0 x3, USB3.0 x1, TTL UART serial port x3,debug UART x1, I2C x2, GPIO x7, SPI x1, ADC x2, CAN x1 and other common interfaces for the AIOT(Internet of Things).
• [Support Multiple OS & Wide Range of Application Scenarios] Youyeetoo R1 development board support Android 13/Debian 11/Ubuntu 22.04/Linux Buildroot and can be applied to edge computing, artificial intelligence, smart robot, advertising machines, vending machines,smart homes and other AIoT fields.
• [Wiki and Pack List] http(s)://wiki.youyeetoo.com/r1, you can find SDK, tutorials, tech docs and dev tools are provided, making development simpler and more convenient. Pack List: youyeetoo R1 SBCx1,heat sink x1. Any custimzation requirements or technical support please contact us by wpd#youeetoo.com (#------>@) or post your quesiton on http(s)://forum.youyeetoo.com/

Features
CPU:Rockchip RK3588S (8nm LP process)8-core 64-bit4xCortex-A76 and 4xCortex-A55Up to 2.4GHz frequency
GPU: ARM Mali-G610 MP4 Odin GPU :Compatible with OpenGL ES 1.1/2.0/3.1/3.2;OpenCL 1.1,1.2,2.0;Vulkan 1.11.2 450 GFLOPS;3D and 2D graphics engine
NPU:Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
Storage:eMMC: 32G/64G/128G/256GB (option); M.2 slot(BOTTOM) M-Key @NVMe SSD(PCIe) 2242ps:The speed is PCIe 2.0); @SATA3.0 SSD m.2 2242;MicroSD (TF) Card Slot
Network:EthernetRJ45 10/100/1000Mbps Ethernet
Wireless: M.2(E-Key) Socket Expansion Slot
1. Wi-Fi5+BT5.0 module(RTL8822CE) default driver
2. WI-FI6+BT5.2 dual-band WiFi+BT module
4G LTE M.2(M-Key)Socket Expansion Slot
(default driver for EC20/EC25 4G LTE Data)
(Need a 4G adapter board)
Display: 1 x HDMI2.1 (8K@60Hz or 4K@120Hz);MIPI FPC2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) default driver the MIPI7LCD (1024 * 600 LCD touch screen);DP: 1 x Type C for DP1.4 (8K@30Hz)
Camera:MIPI FPC slots 2 x MIPI CSI 4 lane (MIPI_CPHY0/MIPI_CPHY1)
USB:USB-A USB 2.0 * 2,USB 3.0 * 1;USB-C : TypeC * 1;USB socketUSB 2.0 * 1
M.2 Socket:M.2-1(BOTTOM) 2242 M-keyPCle Gen2.0 lane 2,support NVME SSD/SATA SSD/4G LTE (need M.2 to MiniPCIE adapter board)
M.2-2(TOP)2230 E-keySupport moduleWIFI5+BT5.0 / WIFI6+BT5.2
30PIN Socket:I2C * 3 (I2C1I2C3I2C7);UART * 3(UART5UART7UART9);CAN * 1;PWM * 1(PWM7);ADC * 2(ADC3ADC4);GPIO pin * 7 default 3.3V support 1.8V;VCC * 2(VCC3v3VCC5v);SPI(pin:14,16,19,21,23) Reuses I2C7 and UART9
OS Support:Android 13/Debian 11/ Ubuntu 22.04/Linux Buildroot

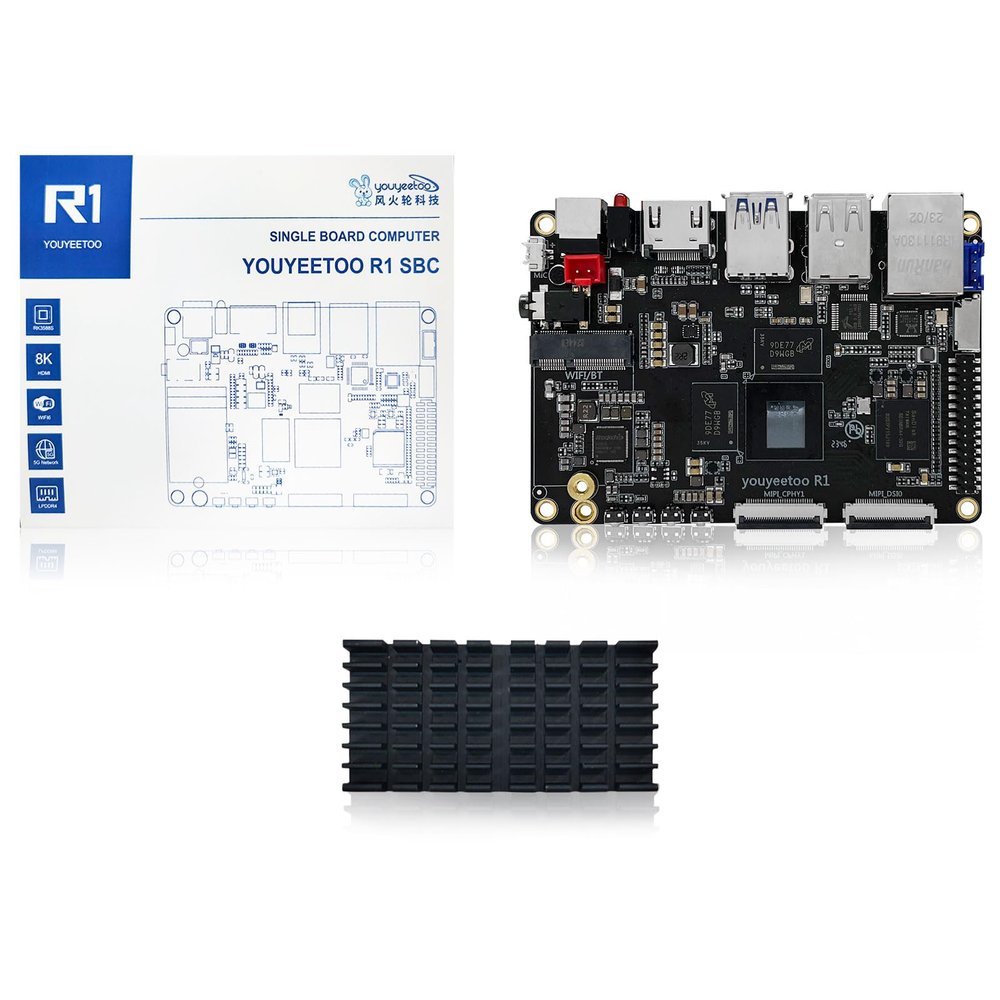

Packing list:Youyeetoo R1 SBC*1 Heat sink*1 Thermal Paste*1
