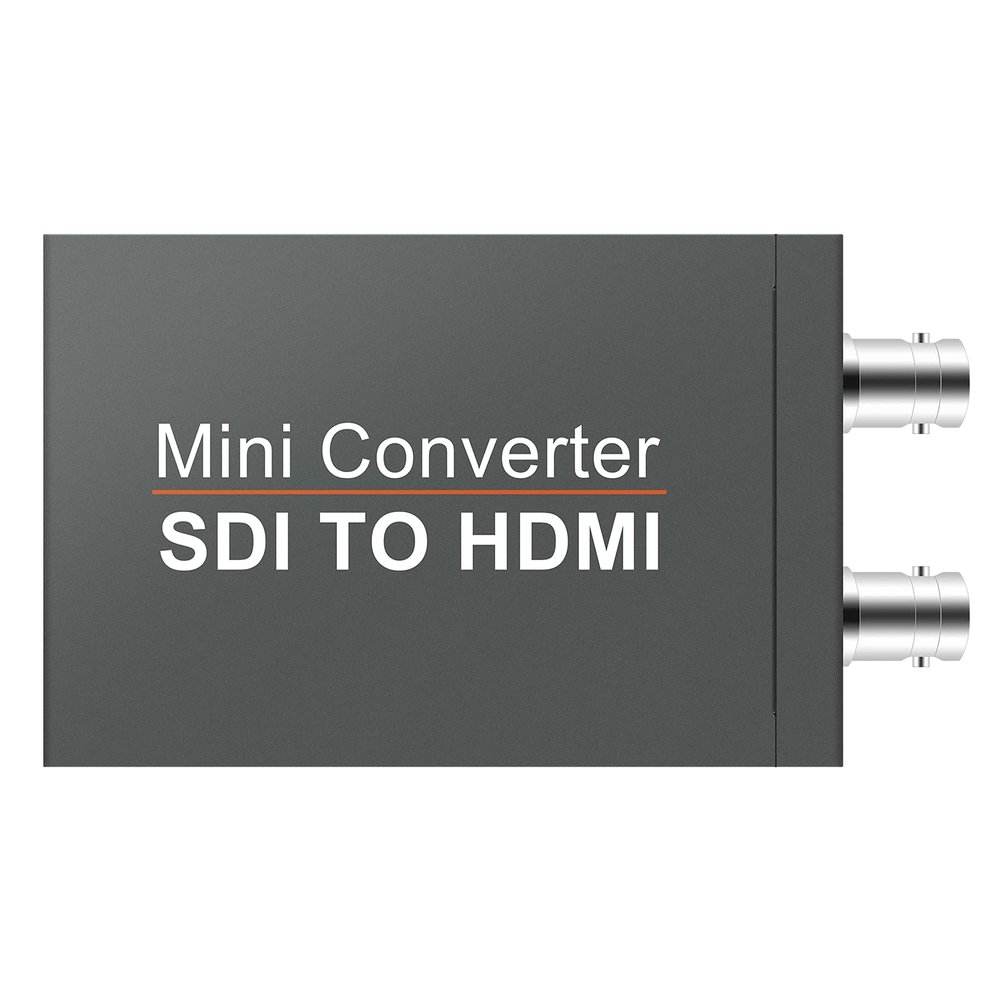

Wiistar SDI to HDMI Converter, Mini SDI to HDMI Audio Video Converter Adaptr Support 3G-SDI, HD-SDI, SD-SDI with SDI Loopout for Camera HDTV

Description

• SDI to HDMI Converter It allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
• with SDI Signal LoopoutSupport 1 HDMI output and 1 SDI loopout, The Transferring Data Rate is up to 2.97Gbps, Extend your Signal over long Distances.
• NoteSDI to HDMI Converter, Only Converters from the SDI to HDMI, do NOT support HDMI to SDI. Only support Coaxial cable with BNC MALE Connector. Not Support RF, CVBS, AHD, TVI, CVI Signal
• Full HD 1080P Supports Full HD 1080P Output, Achieves Output Resolution up to 1080P@50 / 60Hz, Supports Full Digital HDMI Audio Embedded at 48kHz, Synchronized Video and Audio Output.
• Plug and PlayEasy to install and operate, no external driver required. Metal shell design, overall shielding without signal interference, enhanced heat resistance.

SDI to HDMI+SDI Converter
The Wiistar SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be displayed on an HDMI display, while ensuring a high bit rate of 2.970 Gbit/s, thereby providing you with fast signal transmission without any loss. For professionals, this means that with the built-in HDMI converter, it is now easier to distribute and extend 3G SDI signals, while enabling you to display your work on an HDMI display.

Features:
Shows SDI signal source on HDMI display.
with SDI signal loopout
Input port: SDI *1
Output port: HDMI *1; SDI *1
HDMI Version: HDMI 1.3
Support HDCP 1.2
HDMI bandwidth: 24bit-30bit
Supports resolution: 720p, 1080i, 1080p.
Product size(cm): 82*55*23

Specification:
Input: SDI * 1
Output: HDMI * 1, SDI * 1
Input Resolution: 480p/567i, 720P50/60Hz, 1080i50/60Hz,1080P24/25/30/50/60Hz
Output Resolution: 480p/567i, 720P50/60Hz, 1080i50/60Hz,1080P24/25/30/50/60Hz
Working Temperature: 0-59
Dimension: 82*55*23mm
Weight: 163g

Package Lists:
1* SDI TO HDMI Converter
1* Power plug
1* User Manual
