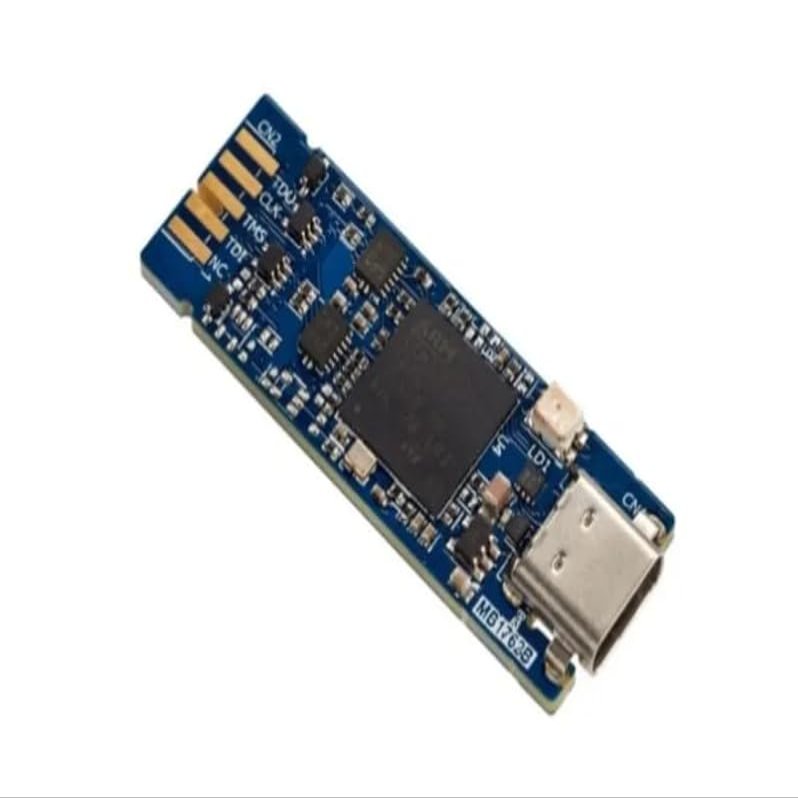

XFCZMG STLINK-V3MINIE,STLINK-V3 Compact Stand-Alone in-Circuit debugger and Programmer for STM32 mini Probe

Description

• Tiny 15 mm 42 mm standalone debugging and programming probe for STM32 microcontrollers Selfpowered through a USB Type-C connector USB 2.0 high-speed interface Probe firmware update through USB Optional draganddrop Flash memory programming of binary files Communication bi-color LED JTAG communication support up to 21 MHz SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz Virtual COM port (VCP) up to 15 Mbps 1.65 to 3.60 V ap
• Board connectors: USB Type-C connector 1.27 mm pitch STDC14 debug connector with STDC14 to STDC14 flat cable 2.0 mm pitch on-board pads for BTB (Board-to-board) card edge connector

Description: STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers. The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board. STLINK-V3MINIE also provides a Virtual COM port interface for the host PC to communicate with the target microcontroller through one UART. STLINK-V3MINIE is a portable version easytouse debugger and programmer including STDC14 interface with its flat cable and onboard pads for boardtoboard (BTB) card edge connector.
