XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

Description

• The module adopts dual chips of CAN controller MCP2515 and CAN transceiver ATA6561-GAQW-N. It supports dual-channel CAN interface communication, and only one module is needed to carry out CAN transceiver test on RPI
• Onboard SM24CANB (Transient Voltage Suppressor), anti-static and transient spike voltage
• Onboard level conversion circuit, the working level of 3.3V/5V can be switched by slide switch
• Onboard 120 terminal resistance, it can be set Enable by slide switch
• Leads out the SPI control interface, for connecting with host control boards like STM32/Ardui.Notice: The for Raspberry Pi in photos is NOT included.

Overview

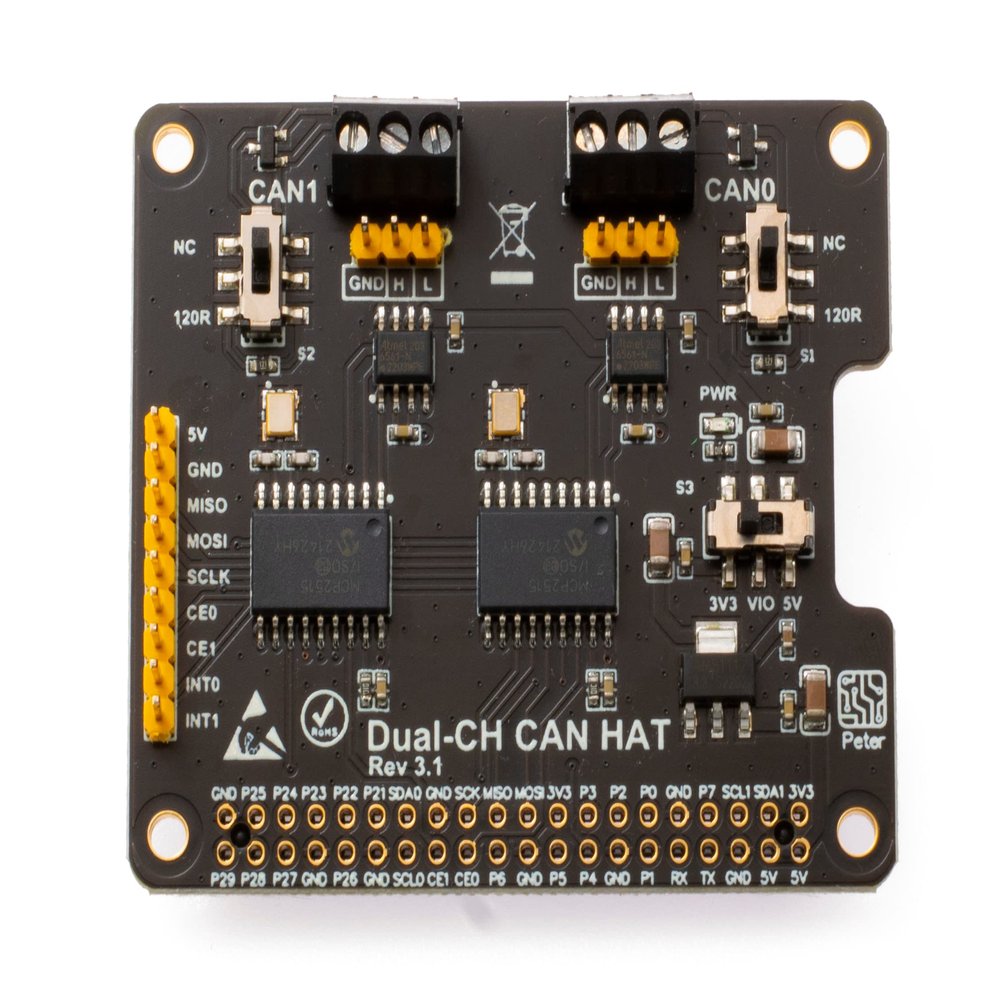

Dual-CH Can HAT is a professional expansion board specially developed for Raspberry Pi for learning or testing the dual-channel CAN communication function with multiple protections.
At the same time, it also leads to the SPI jumper wire pin interface for STM32, Ardui. and other host control boards.

Specifications

Dimensions: 65mm(length)*56mm(width)
Input voltage: 5V
Logic voltage: 3.3V/5V
CAN control chip: MCP2515
CAN transceiver: ATA6561-GAQW-N

Package contents:

1. Dual-CH CAN HAT x1
2. 220PIN female header x1
3. Nylon pillars 2
4. Screws x 4

Notice: The Raspberry Pi in photos is NOT included.
