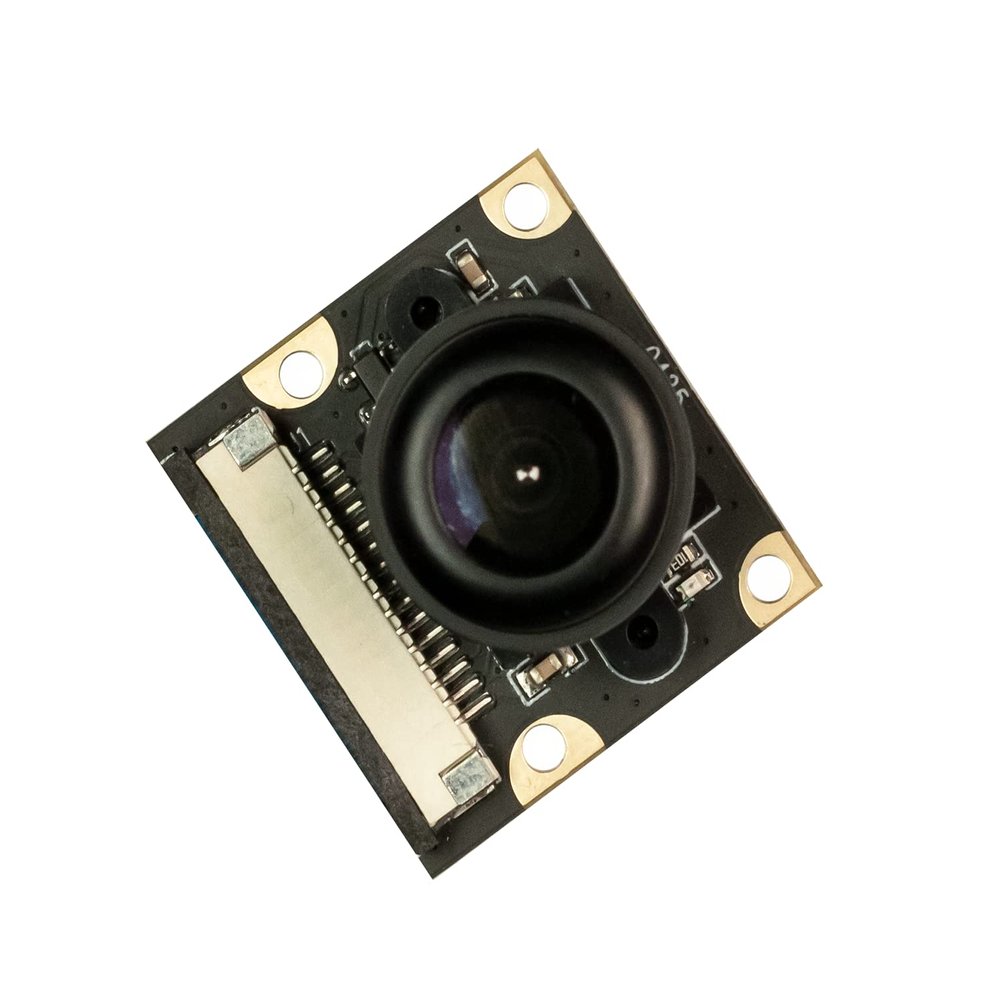

xicoolee IMX219 8MP USB Camera Module for Jetson Nano 30fps Mini Camera Board Fixed-Focus 130 Degree FOV 8 Megapixels 3296x2512 Resolution 15P-1.0 MIPI Interface

Description

• On-board HD CMOS image sensor IMX219 with 8 Megapixel fixed focus 130 degrees wide angle supports ISP (image signal processing), high-speed video shooting, lens shading compensation function
• This IMX219-130 mini camera supports for Jetson Nano operating system. Maximum Resolution is 3296x2512 for sharp image and accurate color reproduction
• Lens Specifications: CMOS Size: 1/4"; F/No: 2.4; EFL: 1.85mm; FOV: 130 degrees; TV Distortion: <7.6%; Maximum Resolution: 3296x2512; Supply Voltage: 3.3V(pin15)
• The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 10g, lightweight to use
• This camera meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and License plate recognition etc.

Overview:
This camera module adopts IMX219 CMOS image sensor. The HD camera has 8 Megapixel, excellent anti blurring characteristics,
adopts 15P-1.0 MIPI interface, weights only 10g, adopts fixed focus mode, and supports Jetson Nano operating system.

Specifications:
Size: 25mm(Length)*24mm(Width)*14mm(High)0.5mm
Temperature(Operation): -2070
Temperature(Stable Image): 050
Assembly Technique: SMT(ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH(Center)
Interface: 15P-1.0 MIPI
Supply Voltage: 3.3V(pin15)
Operating System: Jetson Nano
Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12m x 1.12m
Maximum Image Transfer Rate: 30 fps for QSXGA
S/N Ratio: 39db
Dynamic Range: 69db
Output Formats: 8/10bit RGB RAM Output
Lens Construction: 4E+IR
F/No: 2.4
EFL: 1.85mm
BFL(Optical): 1.95mm
FOV: 130
TV Distortion: <7.6%
Relative Illumination(Sensor): 70%
IR Filter: 65010nm
Package: Anti-electrostatic tray

Package Contents:

1. IMX219-C8M-130 x1
2. 15P-1.0 MIPI connecting cable x1
