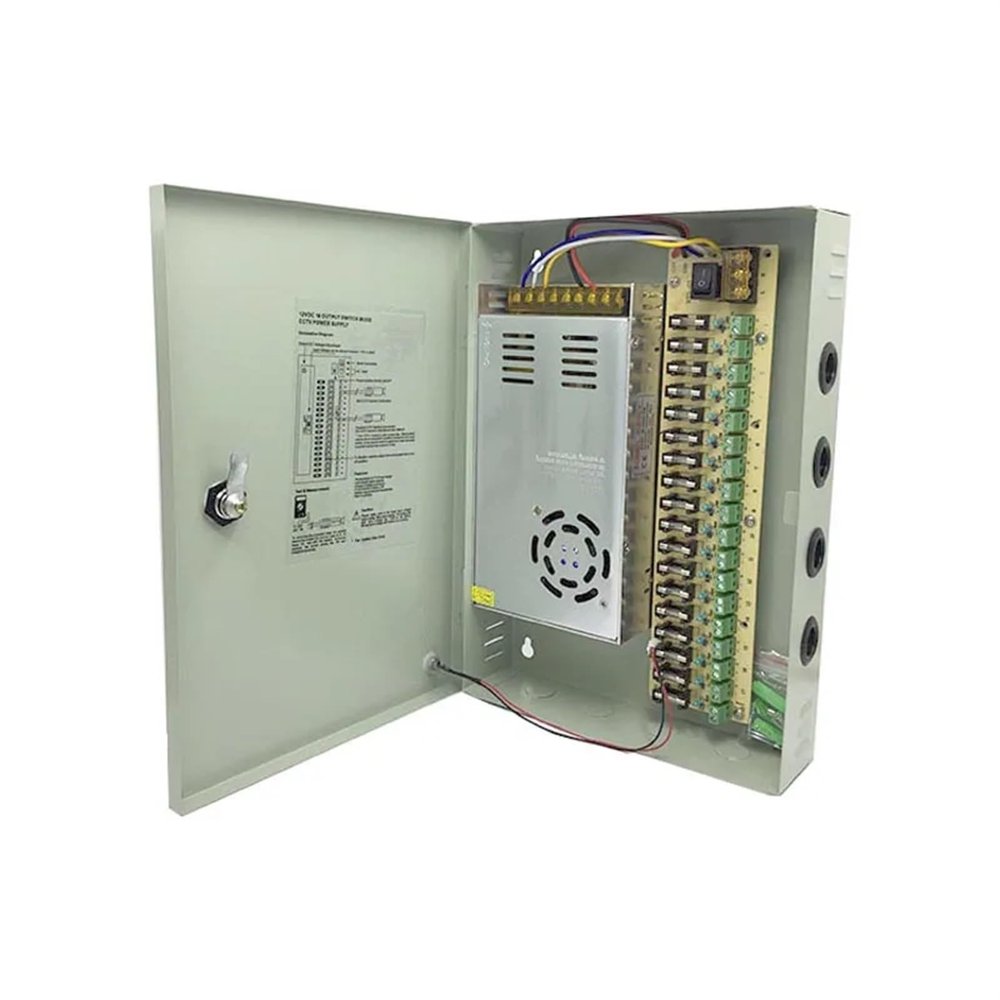

XROUTPWB Power Supply Box 18 Port Channel 300W/360W Distribution Metal Fuse AC 110-240V to DC 5V 12V 24V(5V 60A)

Description

• Power Supply

Power Supply
18-way self reset output, with 5V 60A 12V 30A 24V 15A box type switching power supply
100% full load aging test input voltage & frequency range --------- 110, 220V
Starting impulse current------------- 20A@120VAC (cold start)
Output regulation range --------------- 10% (rated output voltage)
Overload protection ------------ 105% ~ 200% (rated load), self recovery
Overvoltage protection ------------ 115% ~ 135% (rated output voltage)
Output start time --------------- 2S@120VAC 1. 0S@230VAC
Output holding time --------------- 10mS@120VAC , 20mS@230VAC
Insulation strength ------------ input output: ac1500v, 1min
Input -- enclosure: ac1500v, 1min
Output -- casing: DC500v, 1min
Working environment ------------ 10 ~ 50 ; 20% ~ 90% RH (no condensation)
18 outputs, each with fuse
